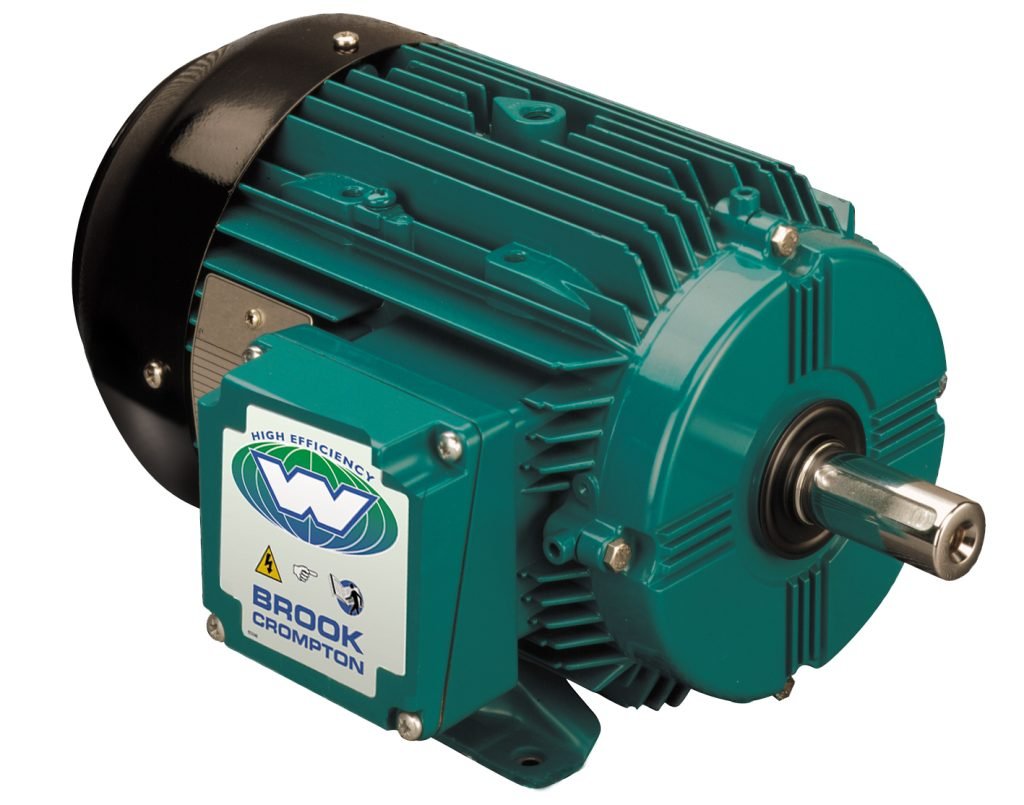

Brook Crompton WM2-DA160MM-8

Series: Other models

Source: https://www.brookcrompton.com/northamerica/product/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Brook Crompton WM2-DA160MM-8 is a three-phase induction motor built by Brook Crompton. The rated output is 5.5 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The housing is frame size 160 M in foot-mounted form. The efficiency is 86 per cent at full load, 86 per cent at 75 per cent load and 84.1 per cent at half load. The motor weighs 87 kg. Stated countries of manufacture: Poland and China. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Brook Crompton range ranges from 0.75 to 160 kW; the WM2-DA160MM-8 sits at the bottom of that range with 5.5 kW. Its immediate neighbours are the WP-DA112** below it with 4 kW and the A-EF132M above it with 7.5 kW. 161 Brook Crompton models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output5.5 kWcorrect

Dimensions and weights

Weight87 kgcorrect

Electrical data

Number of poles8correct
Protection classIP54, IP55, IP56, IP57, IP58, IP65, IP66correct
Frame size160 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B34, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct
Efficiency at full load85.99 %correct
Efficiency at 75 % load85.95 %correct
Efficiency at half load84.06 %correct

Origin and approval

Country of manufacturePoland, Chinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Brook Crompton WM2-DA160MM-8 have?

The Brook Crompton WM2-DA160MM-8 delivers 5.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
