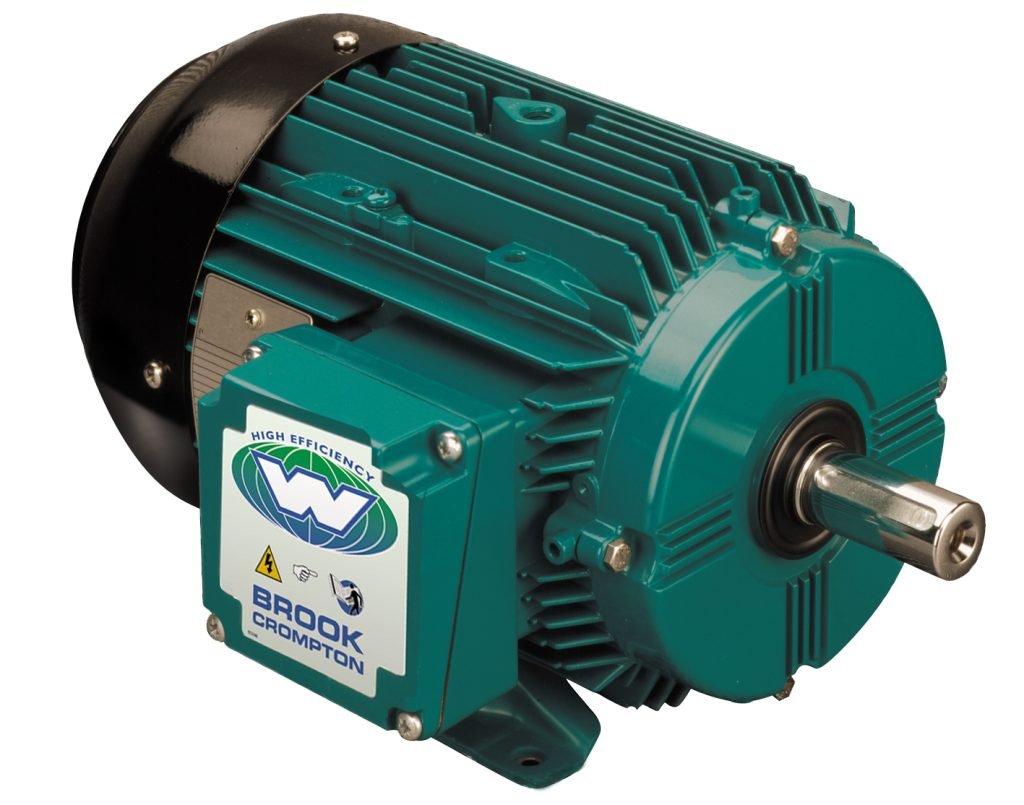

Brook Crompton W-D200L

Series: Other models

Source: https://www.brookcrompton.com/northamerica/product/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The W-D200L from Brook Crompton is a three-phase induction motor. The rated output is 15 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The rated voltage is 1,100 V. The housing is frame size 200 L in foot-mounted form. The protection class is IP55. The efficiency is 90 per cent at full load, 91 per cent at 75 per cent load and 90.6 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5 and B14. Stated countries of manufacture: United Kingdom, Poland, India and China. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to AS 1359.102.1:1997. Rated output across the Brook Crompton range ranges from 0.75 to 160 kW; the W-D200L sits at the bottom of that range with 15 kW. Its immediate neighbours are the WM2-DF160MJ-4 below it with 11 kW and the A-EF180M above it with 18.5 kW. 161 Brook Crompton models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output15 kWcorrect

Electrical data

Rated voltage1,100 Vcorrect
Number of poles8correct
Protection classIP55correct
Frame size200 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14correct
Efficiency at full load90 %correct
Efficiency at 75 % load91 %correct
Efficiency at half load90.6 %correct

Origin and approval

Country of manufactureUnited Kingdom, Poland, India, Chinacorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Brook Crompton W-D200L have?

The Brook Crompton W-D200L delivers 15 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
