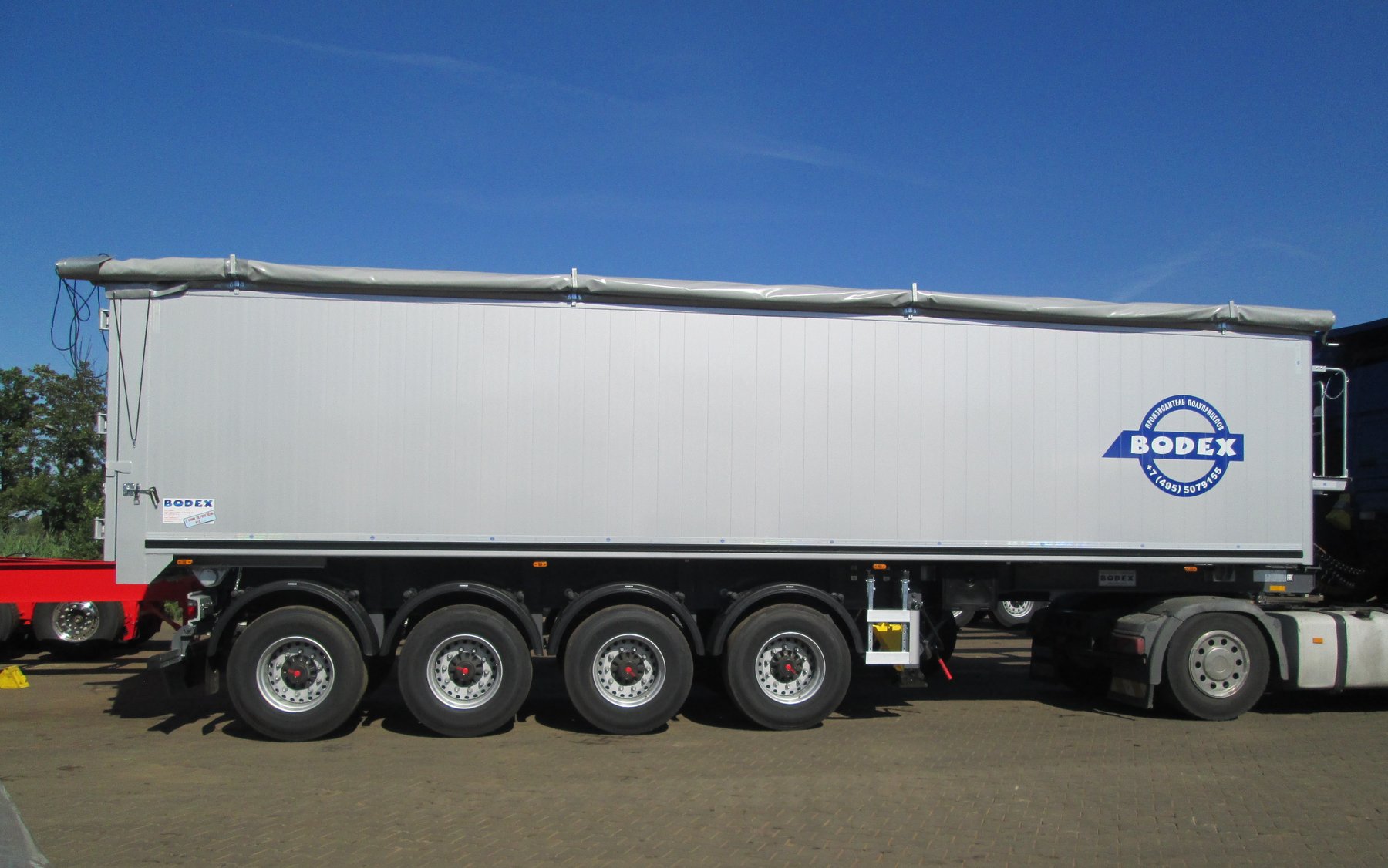

Bodex KIS 3K
Built: 2007-2007 · Series: KIS
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Bodex KIS – Polish tipping semi-trailers from Kolno with a gross weight rating of 39,000 to 43,000 kg: five versions, 9,000 to 13,900 mm length, a constant 2,550 mm width
Bodex of Kolno in Poland builds tipping semi-trailers for bulk-goods transport; the KIS range covers variants such as KIS 3K, KIS 3W-A and KIS 3W-S, differing in bodywork and axle configuration within the same base type. With gross weight ratings of 39,000 to 43,000 kg, the models fall into class O4, the heavy trailers and semi-trailers above 10 tonnes.
Read on 3 more paragraphs
The register lists here 5 versions with unladen weights from 6,500 to 8,210 kg and gross weight ratings from 39,000 to 43,000 kg. Lengths range from 9,000 to 13,900 mm, the width is a constant 2,550 mm.
Tipping semi-trailers of this weight class carry bulk goods such as gravel, sand, grain or recycled material and are widely used across Poland and Central and Eastern Europe in construction and agriculture; the constant 2,550 mm width matches the maximum EU dimension permitted for ordinary road use without a special permit.
On a used example, check the tipping body for wear, dents and corrosion, the condition of the tipping cylinders and hydraulic lines, the axle units and air suspension, the brake system with its connections, and the kingpin and wear plates of the mounting surface. On heavily used examples, also check the frame around the tipping axle for cracks; wear parts come from the Polish and Central European commercial-vehicle parts trade.
Sources: Kennwerte der Modelle Bodex KIS
Technical data
Dimensions and weights
| Length | 13,870 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 9,000 mmcorrect |
| Unladen weight | 6,500 kgcorrect |
| Gross vehicle weight | 39,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Bodex KIS 3K weigh?
The unladen weight is 6,500 kg.
What is the gross vehicle weight of the Bodex KIS 3K?
39,000 kg.
Up to what speed is the Bodex KIS 3K approved?
Approved up to 100 km/h.
What are the dimensions of the Bodex KIS 3K?
13,870 mm × 2,550 mm.
When was the Bodex KIS 3K built?
Production years: 2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
