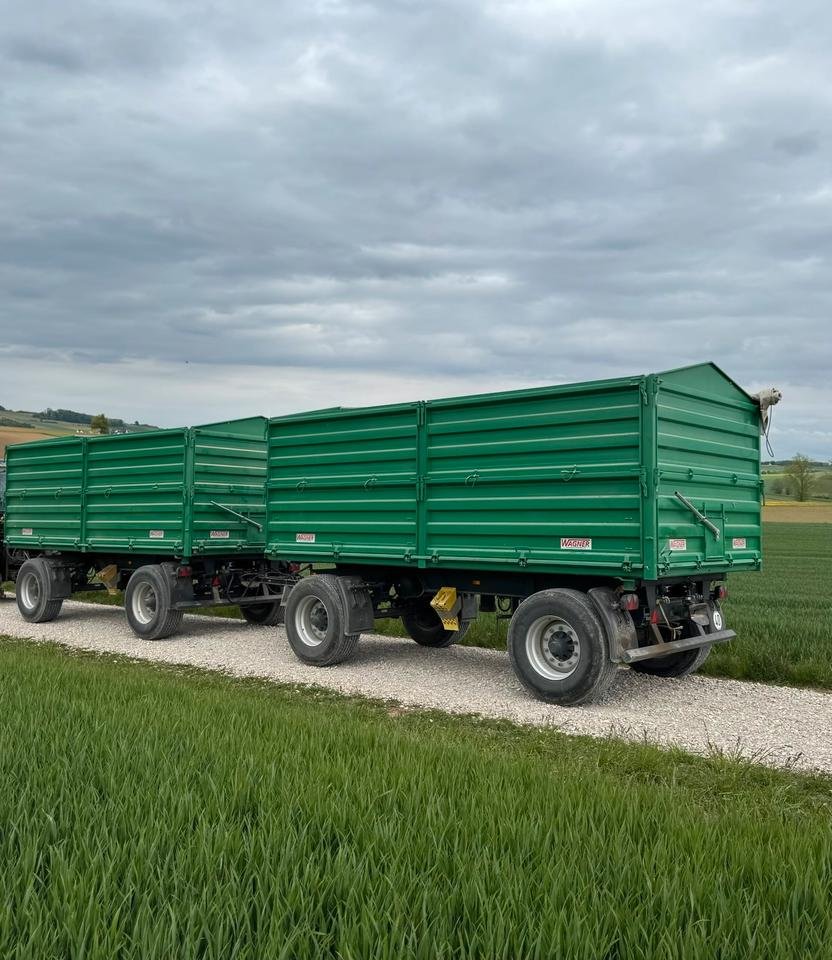

Bertram PIAU 18: the only trailer of this brand outside the named ranges, model year 2018, 18,000 kg gross weight, 4,000 kg unladen weight
This page carries the only trailer model of Bertram that the register did not assign to a named range: the PIAU 18 from 2018. The model designation gives with its 18 a rounded figure for the gross weight in tonnes.
Read on 3 more paragraphs
The PIAU 18 has a gross weight of 18,000 kg against an unladen weight of 4,000 kg, giving a payload of 14,000 kg. At a length of 9,030 mm, an axle spacing of 6,930 mm and a width of 2,510 mm, it stands on two axles, a light chassis relative to its high payload, as is typical for platform or tipping trailers.
With a gross weight of 18,000 kg, the PIAU 18 falls into EU category O4, where an air brake system is standard. With a payload of 14,000 kg on two axles and a length of over nine metres, its main use lies in moving bulk goods, building materials or machines in commercial haulage.
On a used trailer of this size, what counts is the condition of the air brake system along with its lines and brake cylinders, rust on the frame and chassis rails, the state of the load bed or side boards, and the function of the tipping cylinders and hydraulics if the trailer is built as a tipper, plus the condition of the pintle hitch and its bearing. On two axles spread over more than six metres, it is also worth checking the frame for twisting after heavy loading and the state of side-board hinges and latches.
Sources: Kennwerte des Modells PIAU 18
Technical data
Dimensions and weights
| Length | 9,030 mmcorrect |
|---|---|
| Width | 2,510 mmcorrect |
| Wheelbase | 6,930 mmcorrect |
| Unladen weight | 4,000 kgcorrect |
| Gross vehicle weight | 18,000 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Bertram PIAU 18 weigh?
The unladen weight is 4,000 kg.
What is the gross vehicle weight of the Bertram PIAU 18?
18,000 kg.
Up to what speed is the Bertram PIAU 18 approved?
Approved up to 100 km/h.
What are the dimensions of the Bertram PIAU 18?
9,030 mm × 2,510 mm.
When was the Bertram PIAU 18 built?
Production years: 2018.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
