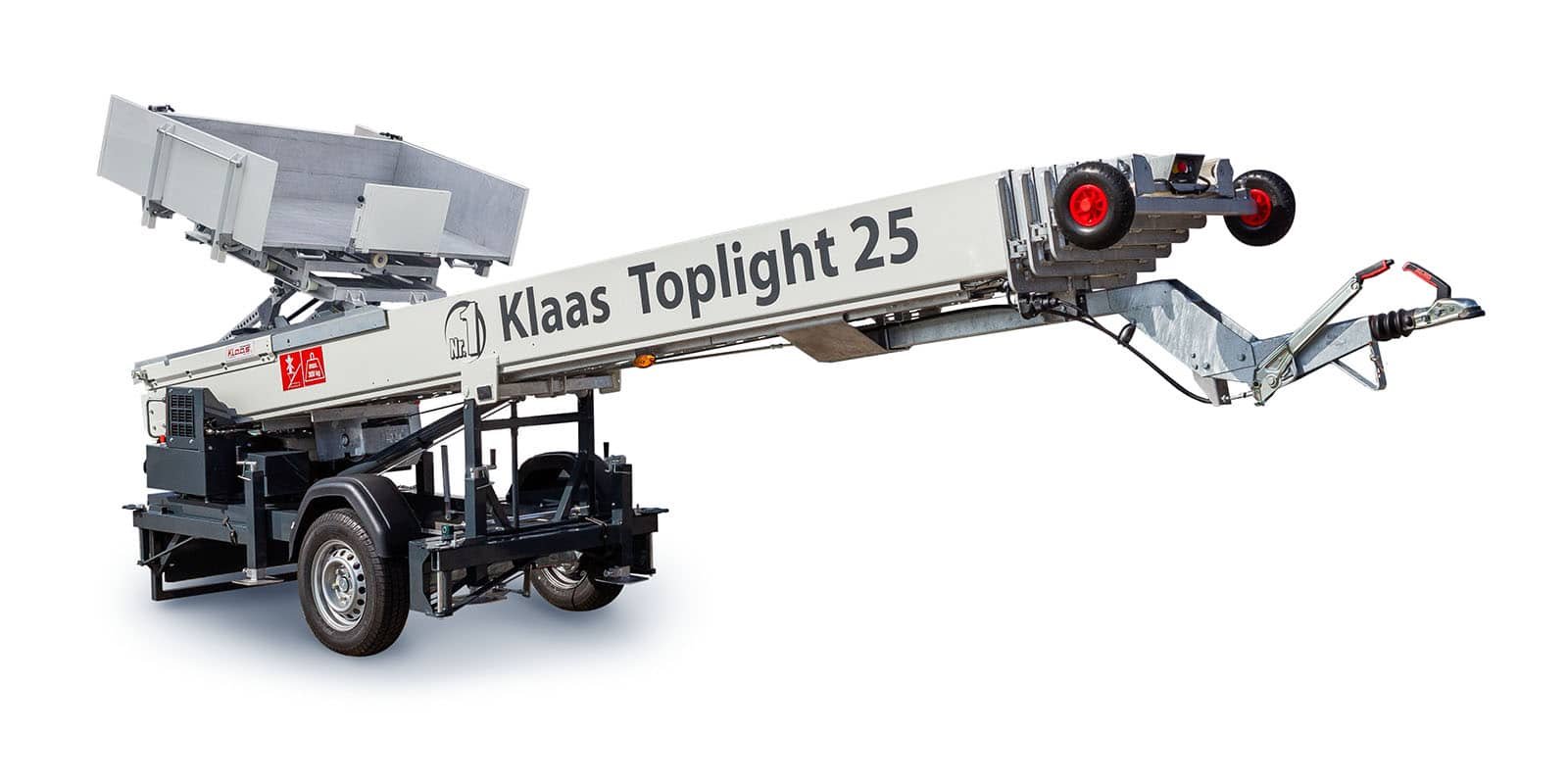

Klaas Alu Kranbau TOPLIGHT 25
Built: 2026 · Series: Other models
More machines from model year 2026
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Klaas Alu Kranbau – other models: the collective page of trailer cranes outside the named ranges, from the K 20/30 to the K 400 RHX, 0.9 to 3.5 t unladen weight, aluminium chassis
This page gathers the Klaas Alu Kranbau trailer cranes the register could not assign to a named range – trailers with an aluminium chassis in which the crane itself makes up most of the weight. The type codes K 20/30 to K 400 give the lifting-moment or power class of the mounted crane, the suffixes TS, TSR and RHX mark boom and outrigger variants.
Read on 3 more paragraphs
The register lists here 22 versions with unladen weights from 938 to 3,500 kg, gross weights from 1,350 to 3,500 kg, lengths from 6,420 to 9,450 mm and widths from 1,410 to 2,370 mm.
Because the crane is a fixed part of the vehicle and does not count as additional cargo, unladen and gross weight lie close together on the largest versions; the aluminium chassis keeps the unladen weight, despite the heavy crane technology, within a frame that a car can tow. The trailers serve landscaping and garden contractors, construction and municipal operations that need to lift loads without keeping a truck-mounted crane.
On trailer cranes, the condition and inspection sticker of the crane itself matter most, along with the tightness of outriggers and hydraulic cylinders, the aluminium chassis for cracks and corrosion at welds, drawbar and overrun brake and the tyres; a crane inspection is compulsory for commercial use. Parts for the crane technology run through the manufacturer, for chassis and brakes through the open trailer parts trade.
Sources: SpecCodex register, model data: Klaas Alu Kranbau (weitere Modelle)
Technical data
Dimensions and weights
| Length | 6,420 mmcorrect |
|---|---|
| Width | 1,410 mmcorrect |
| Wheelbase | 4,410 mmcorrect |
| Unladen weight | 938 kgcorrect |
| Gross vehicle weight | 1,350 kgcorrect |
Drivetrain and chassis
| Wheels | 2correct |
|---|---|
| Top speed | 80 km/hcorrect |
Frequently asked questions
How much does the Klaas Alu Kranbau TOPLIGHT 25 weigh?
The unladen weight is 938 kg.
What is the gross vehicle weight of the Klaas Alu Kranbau TOPLIGHT 25?
1,350 kg.
Up to what speed is the Klaas Alu Kranbau TOPLIGHT 25 approved?
Approved up to 80 km/h.
What are the dimensions of the Klaas Alu Kranbau TOPLIGHT 25?
6,420 mm × 1,410 mm.
When was the Klaas Alu Kranbau TOPLIGHT 25 built?
Production years: 2026.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
