KL MASCHINENBAU GMBH MESSWAGEN
Built: 2021 · Series: Other models
More machines from model year 2021
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
KL Maschinenbau – other models: the collective page of measuring trailers outside the named ranges, the PT 301 and PT 501 types, 1.28 to 2.54 t unladen weight, 1.8 to 3.0 t gross weight
This page gathers the KL Maschinenbau trailers the register could not assign to a named range. The designations Messwagen and Leistungsmesswagen identify the vehicles as mobile measuring technology on a trailer chassis, listed under the types PR301MES, PT 301, PT 301 MES and PT501GS.
Read on 3 more paragraphs
The register lists 8 versions with unladen weights from 1,280 to 2,540 kg, gross weights from 1,800 to 3,000 kg, lengths from 3,050 to 4,570 mm and widths from 1,780 to 2,090 mm.

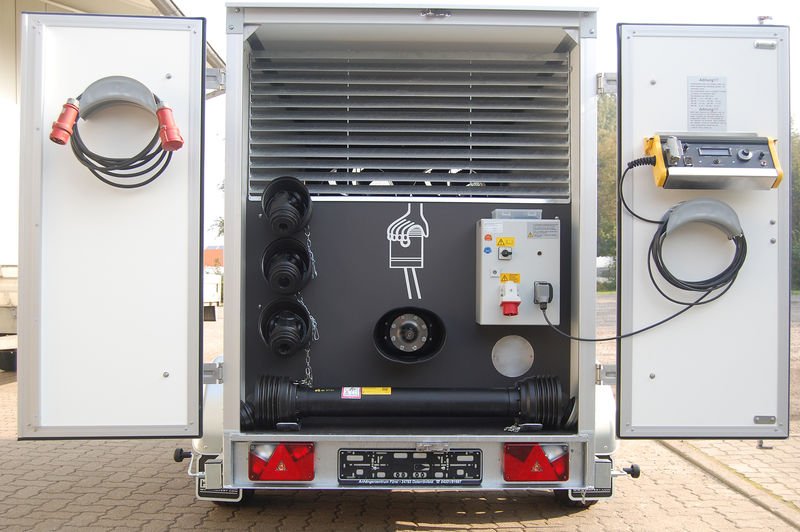

Measuring trailers of this kind carry measuring and test equipment to the site and serve there as a self-contained test station, for example to measure the power output of machinery or vehicles in the field; the comparatively high unladen weight comes from the permanently installed measuring and evaluation equipment. Vehicles of this kind are used by manufacturers, test bodies and institutes that need to record performance data outside the laboratory.
On a used trailer, the condition of the axle, brake and overrun brake device, rust on the frame and the body box, the function of the lighting system, and tyres and wheel bearings all count; with the permanently installed measuring equipment, the calibration status and the function of the display units also need checking. Cables, connectors and the power supply for the measuring equipment should also be checked before purchase.
Sources: SpecCodex register, model data: KL Maschinenbau (weitere Modelle)
Technical data
Dimensions and weights
| Length | 4,570 mmcorrect |
|---|---|
| Width | 2,090 mmcorrect |
| Wheelbase | 3,670 mmcorrect |
| Unladen weight | 2,540 kgcorrect |
| Gross vehicle weight | 3,000 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the KL MASCHINENBAU GMBH MESSWAGEN weigh?
The unladen weight is 2,540 kg.
What is the gross vehicle weight of the KL MASCHINENBAU GMBH MESSWAGEN?
3,000 kg.
Up to what speed is the KL MASCHINENBAU GMBH MESSWAGEN approved?
Approved up to 100 km/h.
What are the dimensions of the KL MASCHINENBAU GMBH MESSWAGEN?
4,570 mm × 2,090 mm.
When was the KL MASCHINENBAU GMBH MESSWAGEN built?
Production years: 2021.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
