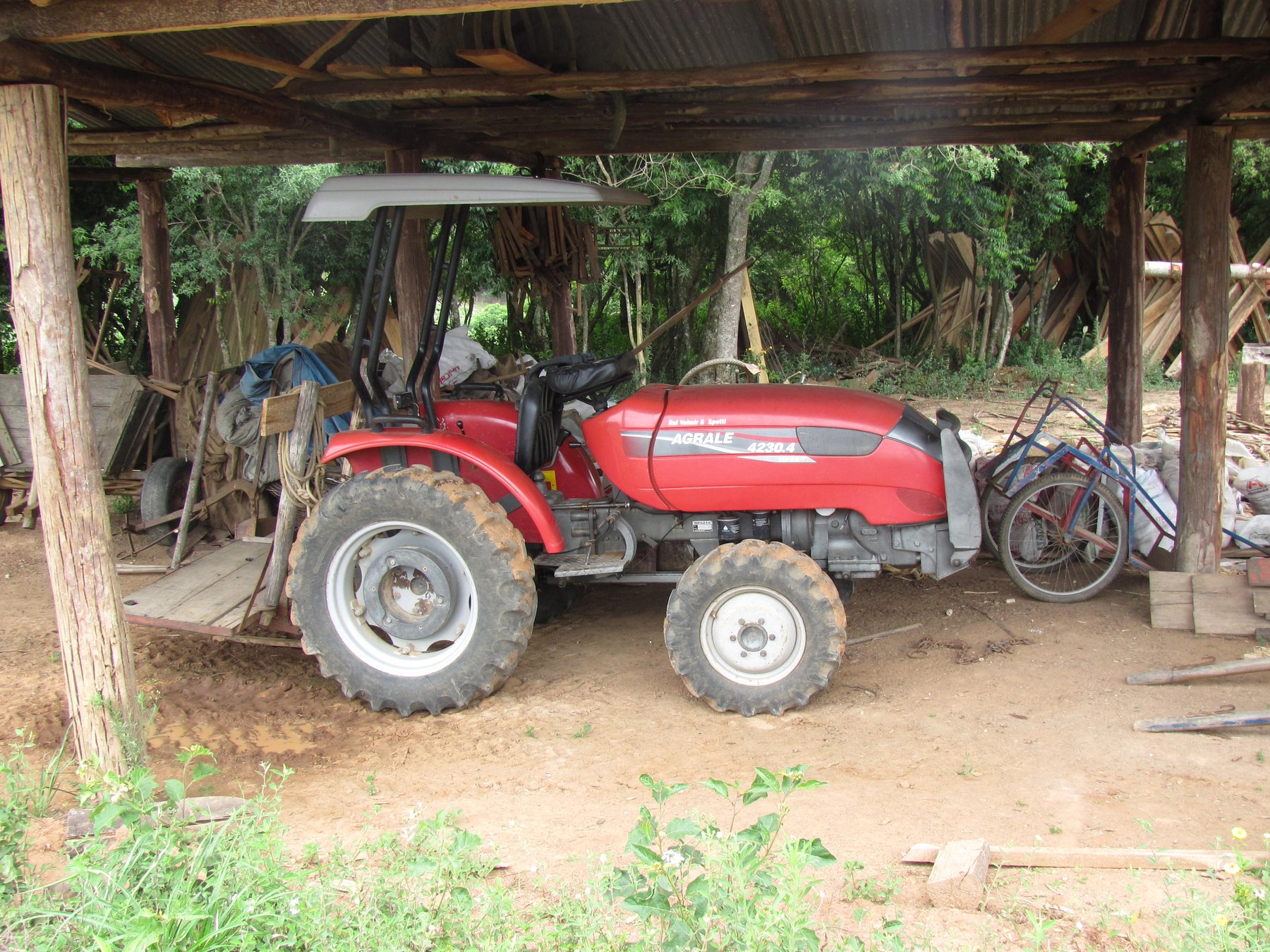

Agrale 4230 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Agrale 4230 is a tractor from the Agrale Utility Tractor series. The two-cylinder engine, displacing 1.3 litres, produces 30 hp (22.4 kW). Rated speed is 3,000 rpm.
It will not go faster than 22 km/h — a working pace, not a travelling one.
Within the range, rated power spans from 14.9 to 30.4 hp; with 30.4 hp, the 4230 sits at the top. Below it ranks the 4230 Industrial with 26.4 hp.
Technical data
Engine
| Engine model | M 790correct |
|---|---|
| Power | 30.4 hp (22.4 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Torque | 70.1correct |
| Speed at max. torque | 2,550 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,271.6 cm³correct |
| Engine oil capacity | 6.1 lcorrect |
Drivetrain and chassis
| Forward gears | 6correct |
|---|---|
| Reverse gears | 2correct |
| Top speed | 22.2 km/hcorrect |
| System voltage | 14 Vcorrect |
Working data
| Pump flow | 28.8 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 16.3 lcorrect |
| Fuel tank capacity | 39.4 lcorrect |
Frequently asked questions
How much power does the Agrale 4230 have?
The Agrale 4230 delivers 30.4 hp.
What engine does the Agrale 4230 have?
2 cylinders, 1,272 cm³ displacement.
How fast does the Agrale 4230 go?
Top speed is 22.2 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
