Agrale 4230.4 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

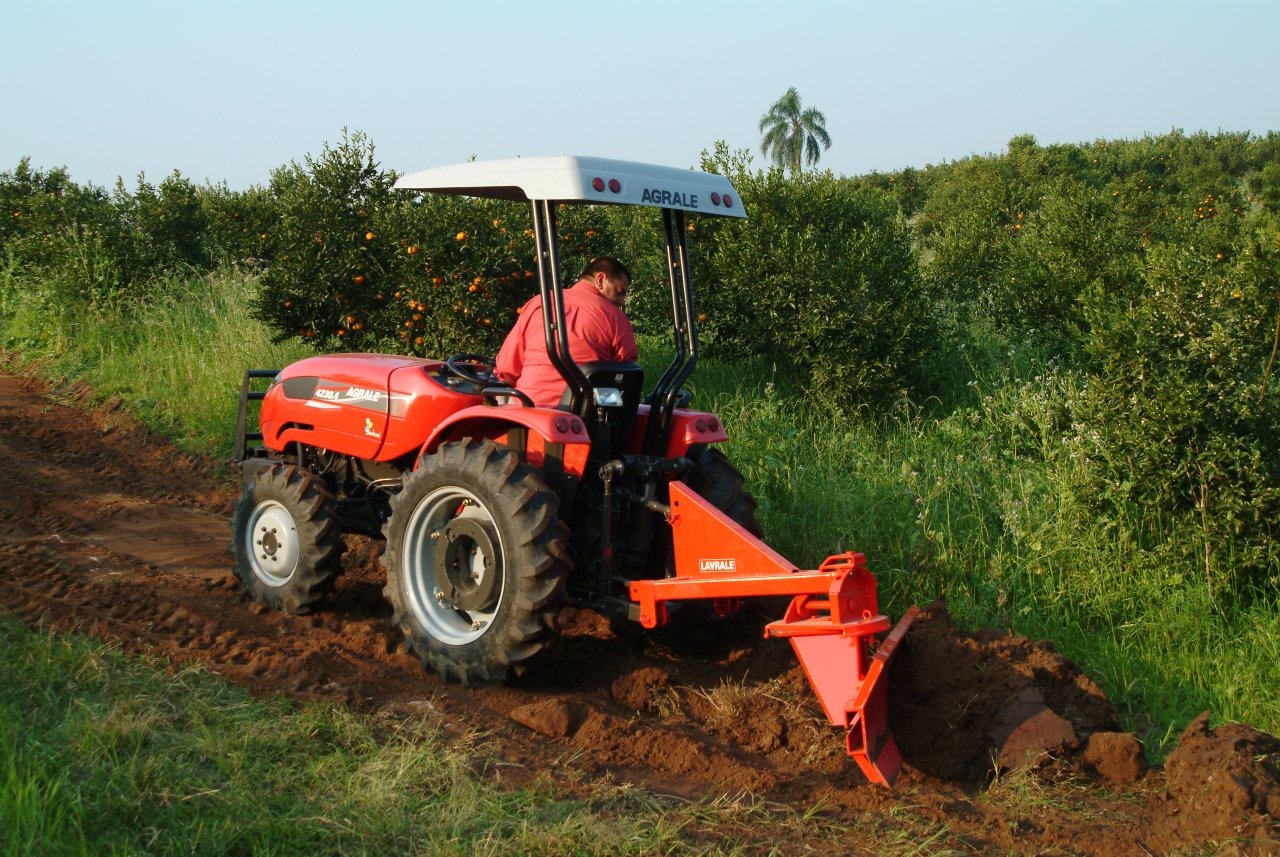

The Agrale 4230.4 is a tractor from the Agrale Utility Tractor series. Power comes from a two-cylinder engine; from 1.3 litres it draws 30 hp (22.4 kW). Rated speed is 3,000 rpm.
Top speed is 23 km/h. It is 1.35 m wide. At 1,800 kg, it puts weight behind its pulling power — a good 59 kilograms per hp.
Within the range, rated power spans from 14.9 to 30.4 hp; with 30.4 hp, the 4230.4 sits at the top. Below it ranks the 4230 Industrial with 26.4 hp.
Technical data
Engine
| Engine model | M 790correct |
|---|---|
| Power | 30.4 hp (22.4 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Torque | 69correct |
| Speed at max. torque | 2,550 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,271.6 cm³correct |
| Engine oil capacity | 6.1 lcorrect |
Dimensions and weights
| Width | 1,350.3correct |
|---|---|
| Wheelbase | 1,417.3correct |
| Unladen weight | 1,800 kgcorrect |
Drivetrain and chassis
| Forward gears | 6correct |
|---|---|
| Reverse gears | 2correct |
| Top speed | 22.7 km/hcorrect |
| System voltage | 14 Vcorrect |
Working data
| Pump flow | 30.3 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 17 lcorrect |
| Fuel tank capacity | 39.4 lcorrect |
Where this model stands
Power-to-weight ratio: 12.4 kW/t (22 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Agrale 4230.4 have?
The Agrale 4230.4 delivers 30.4 hp.
How much does the Agrale 4230.4 weigh?
The unladen weight is 1,800 kg.
What engine does the Agrale 4230.4 have?
2 cylinders, 1,272 cm³ displacement.
How fast does the Agrale 4230.4 go?
Top speed is 22.7 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
