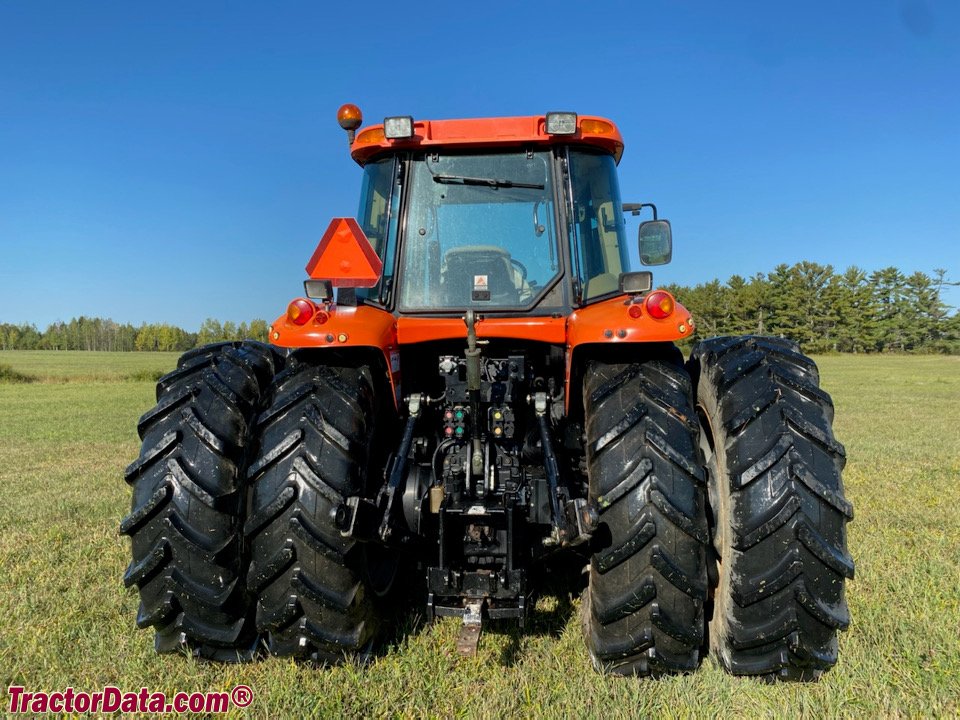

AGCO RT155A
Built: 2006-2011 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2006-2011, the AGCO RT155A is a tractor from AGCO. The engine is rated at 116 kW. Rated speed is 2,200 rpm.
Gearbox: CVT ; Auto-6 (optional).
The fuel is diesel. The predecessor was the AGCO RT150. Within the range, rated power spans from 16.8 to 216 kW; with 116 kW, the RT155A sits in the upper third. Directly alongside are the RT130 Mudder with 97 kW below and the DT180 with 130 kW above.
Technical data
Engine
| Engine make | AGCOcorrect |
|---|---|
| Engine model | 6.6l CTAcorrect |
| Fuel | dieselcorrect |
| Power | 155 hp (116 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Naturally aspirated | naturally aspiratedcorrect |
Dimensions and weights
| Wheelbase | 118.6 in (3012,4 mm)correct |
|---|---|
| Unladen weight | 15,300 lbs (6 940 kg)correct |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Gearbox | continuously variable transmission; Auto-6 (optional)correct |
| Gearbox make | PowerMaxxcorrect |
| Forward gears | infinite; 24 (optional)correct |
| Reverse gears | infinite; 24 (optional)correct |
Working data
| Lifting capacity | 14,283 lbs (6478,7 kg)correct |
|---|---|
| PTO speed | 540/1000correct |
| Linkage category | Cat II/IIINcorrect |
Origin and approval
| Plant | Beauvois, Francecorrect |
|---|---|
| Predecessor | AGCO RT150correct |
Frequently asked questions
How much power does the AGCO RT155A have?
The AGCO RT155A delivers 155 hp.
When was the AGCO RT155A built?
Production years: 2006-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
