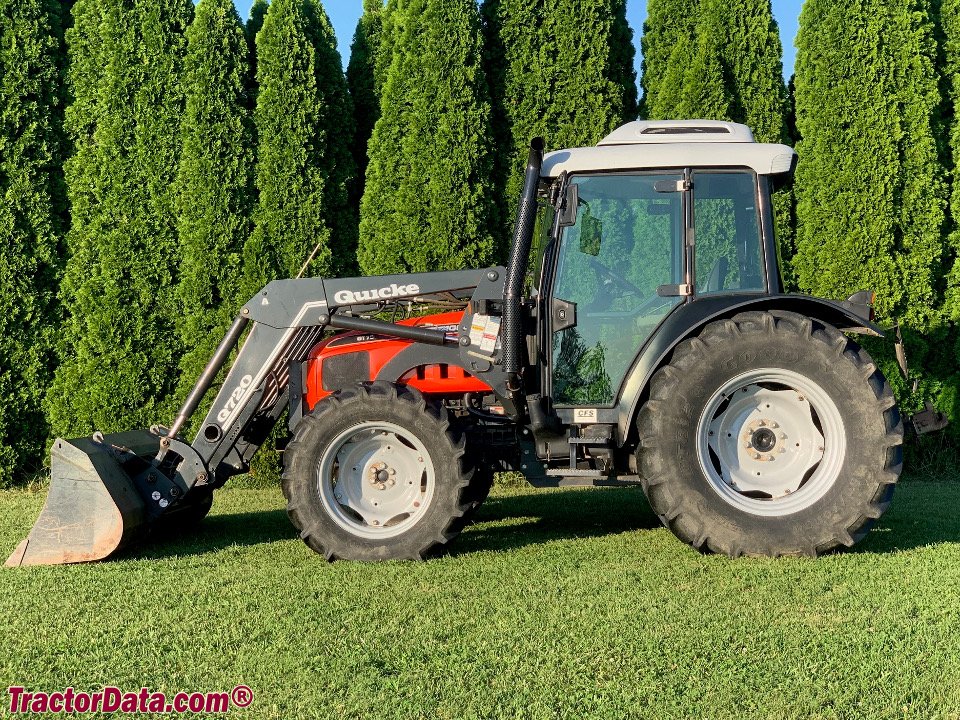

AGCO GT75
Built: 2004-2004 · Series: Other models
Successor: GT75A →
More machines from model year 2004
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO – other models: the collective page of tractors outside the named ranges, from the compact GT and LT through the RT mid-range to the larger DT models, 17 to 216 kW, AGCO Sisu, Iseki, Cummins, SDF and SAME engines
This page gathers the tractors listed in the register under the AGCO brand itself that could not be assigned to a named range. AGCO Corporation was formed in 1990 in Duluth, Georgia, and for many years, alongside the later-acquired brands Massey Ferguson, Fendt and Valtra, also sold tractors under its own name. By size the range splits into the compact GT and LT series, the RT mid-range and the larger DT models; a handful of models from other group brands, such as a Fendt 1000 Vario and a Massey Ferguson 6713, also appear in the register. The engines come from several plants and partners within the group: AGCO Sisu – the former Finnish Sisu works, today AGCO Power – in the larger models, Iseki in the compact tractors, plus Cummins, SDF (SAME Deutz-Fahr) and SAME.
Read on 3 more paragraphs
The register lists here 82 versions with 16.8 to 216.3 kW (28.4 to 290 hp) from three- to six-cylinders of 1,124 to 8,400 cm³, PTO outputs from 19 to 240 hp, lift capacities from 400 to 6,913 kg, unladen weights from 620 to 14,000 kg, lengths from 2,480 to 6,157 mm, widths from 1,789 to 2,750 mm and heights from 2,769 to 3,570 mm.
As a group, AGCO is one of the world's three big farm-equipment makers alongside John Deere and CNH Industrial; the own-brand range covers mainly the North American market for compact and mid-range tractors, while the bigger ranges are now sold chiefly under Massey Ferguson, Fendt and Valtra.
On used tractors, engine and hydraulics condition count on the GT and LT compacts, on the RT and DT models operating hours, clutch and four-wheel drive, and – depending on the engine fitted – parts availability through Cummins, SDF or AGCO Power; the variety of engine origins makes the model and engine designation especially important before buying.
Sources: Kennwerte der Modelle AGCO (weitere Modelle), AGCO Corporation (Hersteller)
Technical data
Engine
| Engine make | SDFcorrect |
|---|---|
| Engine model | 1000.4WT4correct |
| Fuel | dieselcorrect |
| Power | 73 hp (54 kW)correct |
| Cylinders | 4correct |
| Displacement | 244 CIDcorrect |
| Bore | 4.13 in (104,9 mm)correct |
| Stroke | 4.55 in (115,6 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 151.6 in (3850,6 mm)correct |
|---|---|
| Width | 78 in (1981,2 mm)correct |
| Height | 106 in (2692,4 mm)correct |
| Wheelbase | 88 in (2WD); 86 in (MFWD)correct |
| Turning circle | 10.8 fT (2WD); 12.5 ft (MFWD)correct |
| Unladen weight | 6, 040 lbs; 6, 525 lbs (MFWD)correct |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Gearbox | Synchro Shuttlecorrect |
| Forward gears | 16correct |
| Reverse gears | 8correct |
| Clutch | Drycorrect |
| Front tyres | 7.50x18correct |
| Rear tyres | 480/70R30correct |
Working data
| Lifting capacity | 2,899 kgcorrect |
|---|---|
| Lifting capacity | 6,392 lbs (2899,4 kg)correct |
| Fuel tank capacity | 23.8 galcorrect |
Origin and approval
| Plant | Italycorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540 / 1000correct |
| Successor | AGCO GT75Acorrect |
Frequently asked questions
How much power does the AGCO GT75 have?
The AGCO GT75 delivers 73 hp.
What engine does the AGCO GT75 have?
4 cylinders, Diesel.
How much does the rear linkage of the AGCO GT75 lift?
The rear linkage lifts 2,899 kg.
When was the AGCO GT75 built?
Production years: 2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
