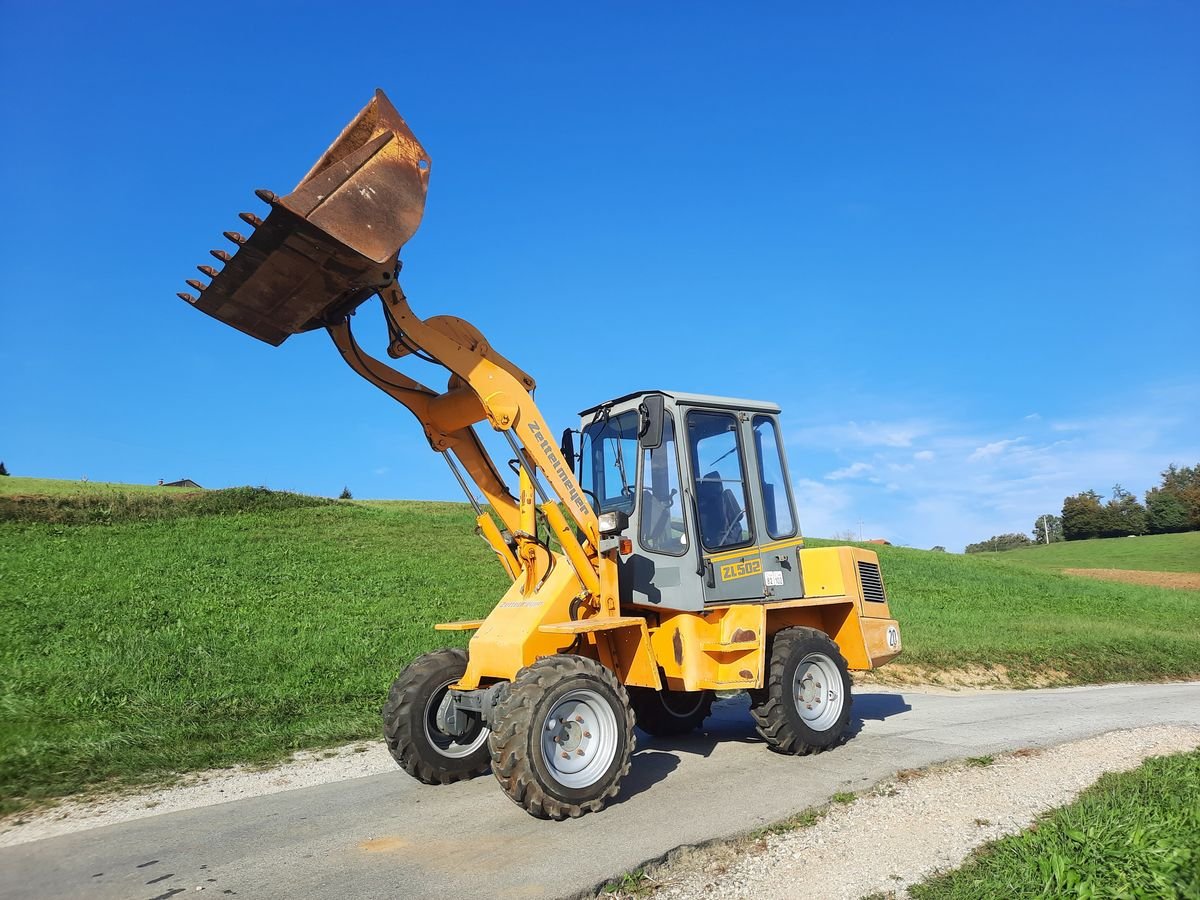

Zettelmeyer ZD5002

Series: Zettelmeyer Wheel Dozer

Source: https://www.landwirt.com/baumaschinen/kompaktlader/zettelmey

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Zettelmeyer ZD5002 is a model in the Zettelmeyer Wheel Dozer series. The engine delivers 293.7 hp (206 kW), has 6 cylinders, with a displacement of 10,200.9 cm³. Rated speed is 2,100 rpm. The unladen weight is 26,200 kg. The wheelbase measures 3,675.9 mm. Ground clearance is 521.2 mm. The tank holds 415.3 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The hydraulic tank holds 230.2 litres. The oil fill is 26.9 litres. The electrical system runs on 24 V. The engine fitted is the LTA 10-C290. Tyre size: 29,5R25. Rated output across the Zettelmeyer range ranges from 20 to 306.2 hp; the ZD5002 sits at the top of that range with 293.7 hp. Its immediate neighbours are the ZL5001F below it with 272.7 hp and the ZL4001B above it with 306.2 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Mining equipment. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine model	LTA 10-C290correct
Power	293.7 hp (206 kW)correct
Rated speed	2,100 rpmcorrect
Speed at max. torque	1,300 rpmcorrect
Cylinders	6correct
Displacement	10,200.9 cm³correct
Aspiration	turbo + aftercooledcorrect
Engine oil capacity	26.9 lcorrect

Dimensions and weights

Wheelbase	3,675.9correct
Ground clearance	521.2correct
Unladen weight	26,200 kgcorrect

Drivetrain and chassis

Gearbox type	countershaft transmission full power shiftcorrect
Forward gears	6correct
Reverse gears	3correct
Tyre size	29.5R25correct
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	230.2 lcorrect
Fuel tank capacity	415.3 lcorrect

Other data

Height	3,517.4correct

Where this model stands

Power-to-weight ratio: 7.9 kW/t (206 kW / 26.2 t)

Stronger than 67% of the mining equipment in the register — out of 945 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Zettelmeyer ZD5002 have?

The Zettelmeyer ZD5002 delivers 294 hp.

How much does the Zettelmeyer ZD5002 weigh?

The unladen weight is 26,200 kg.

What engine does the Zettelmeyer ZD5002 have?

6 cylinders, 10,201 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
