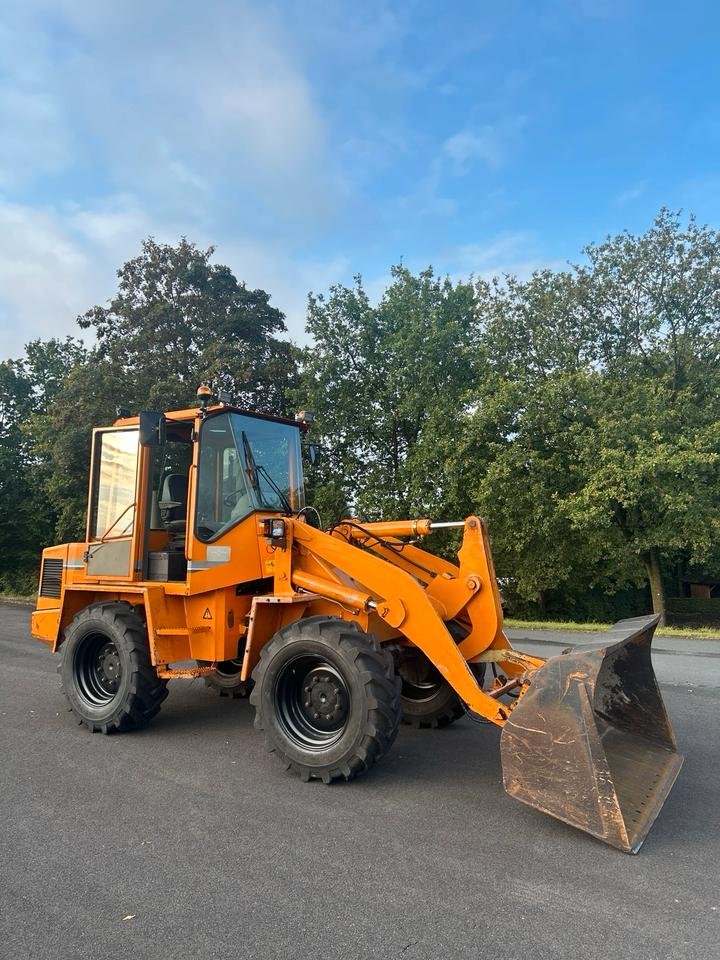

Zettelmeyer LF802

Series: Zettelmeyer Integrated Tool Carrier

Source: https://www.kleinanzeigen.de/s-anzeige/zettelmeyer-802-radla

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Zettelmeyer Integrated Tool Carrier series from Zettelmeyer includes the LF802. The engine delivers 78.9 hp (56 kW), has 4 cylinders, with a displacement of 3,200.4 cm³. Torque is 300 Nm. Rated speed is 2,100 rpm. The wheelbase measures 2,252.5 mm. Ground clearance is 310.9 mm. The tank holds 100.3 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 82.1 l/min. The hydraulic tank holds 110.2 litres. The oil fill is 9.1 litres. The electrical system runs on 24 V. The engine fitted is the KHD BF 4M 1012 E. Tyre size: 16/70-24. Rated output across the Zettelmeyer range ranges from 20 to 306.2 hp; the LF802 sits in the lower part of that range with 78.9 hp. Its immediate neighbours are the ZL801 below it with 75 hp and the ZL802i above it with 79.1 hp. 50 Zettelmeyer models across 4 series are on record. The model is listed under Telehandlers. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine model	KHD BF 4M 1012 Ecorrect
Power	78.9 hp (56 kW)correct
Rated speed	2,100 rpmcorrect
Torque	300correct
Speed at max. torque	1,500 rpmcorrect
Cylinders	4correct
Displacement	3,200.4 cm³correct
Aspiration	turbochargedcorrect
Engine oil capacity	9.1 lcorrect

Dimensions and weights

Wheelbase	2,252.5correct
Ground clearance	310.9correct

Drivetrain and chassis

Gearbox type	full power shiftcorrect
Forward gears	2correct
Reverse gears	2correct
Tyre size	16/70-24correct
System voltage	24 Vcorrect

Working data

Pump flow	82.1 l/mincorrect
Hydraulic oil capacity	110.2 lcorrect
Fuel tank capacity	100.3 lcorrect

Other data

Height	2,825.5correct

Frequently asked questions

How much power does the Zettelmeyer LF802 have?

The Zettelmeyer LF802 delivers 78.9 hp.

What engine does the Zettelmeyer LF802 have?

4 cylinders, 3,200 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
