Yanmar TK486VG2

Built: 2012-2012 · Series: Other models

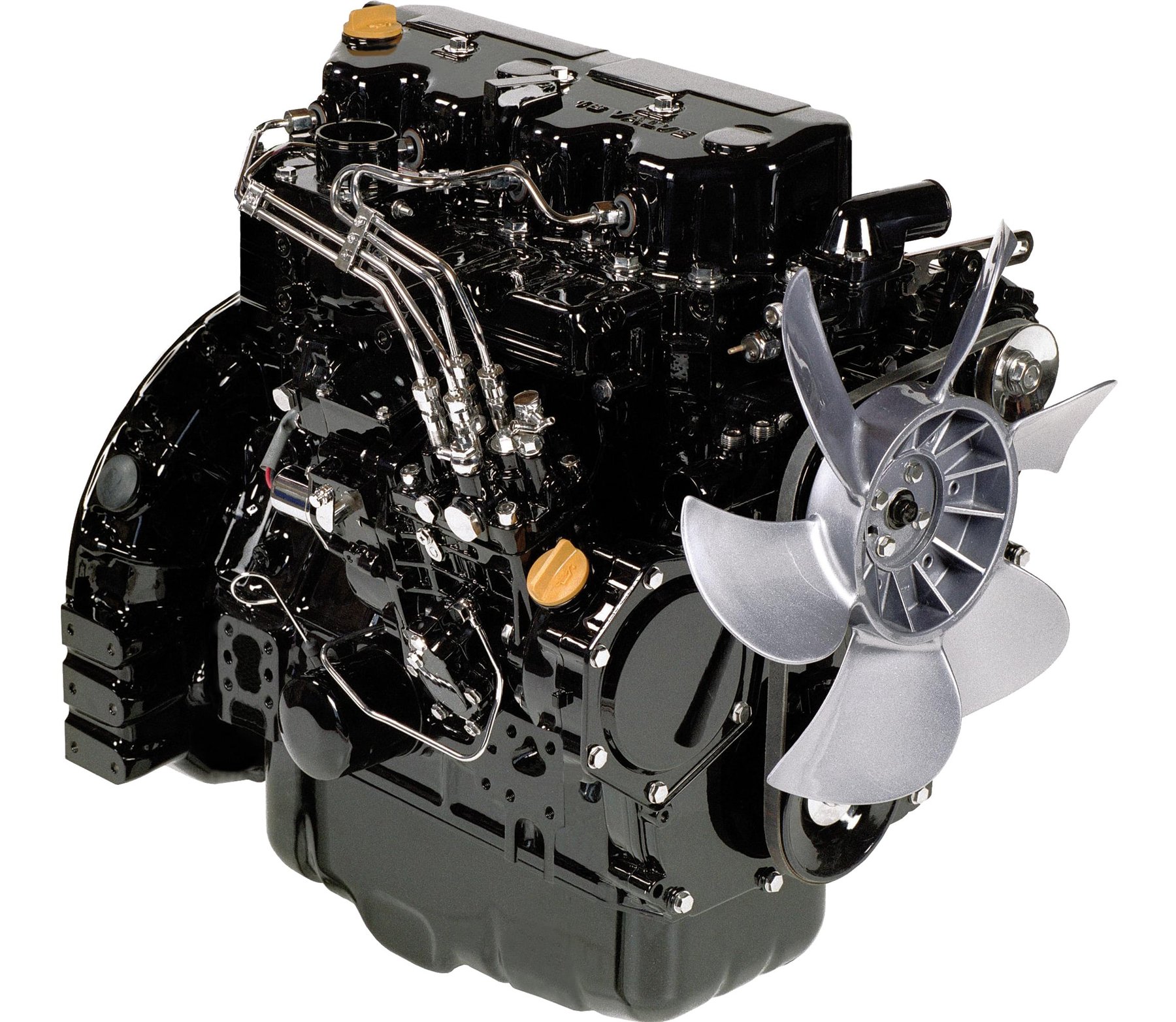

The photo shows the 4XHS2CM from the same series. Source: https://storage.googleapis.com/dhjebofffcpmpe/how-does-a-yan

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TK486VG2 comes from Yanmar. Production: 2012. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 27 kW. The engine is naturally aspirated. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar range ranges from 5 to 160 kW; the TK486VG2 sits at the bottom of that range with 27 kW. Its immediate neighbours are the TK488CRP below it with 26 kW and the 3JTMA above it with 28 kW. 1272 Yanmar models across 66 series are on record. The model is listed under Non-road diesel engines. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine familyCYDXL2.09K4Ncorrect
Engine familiesCYDXL2.09K4Ncorrect
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output27 kWcorrect
Power band19<=kW<37correct
Rated speed2,500 rpmcorrect
Maximum torque138.3 N·mcorrect
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore86 mmcorrect
Stroke90 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageInterim Tier 4correct

Origin and approval

Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2012correct

Frequently asked questions

How much power does the Yanmar TK486VG2 have?

The Yanmar TK486VG2 delivers 27 kW.

When was the Yanmar TK486VG2 built?

Production years: 2012.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
