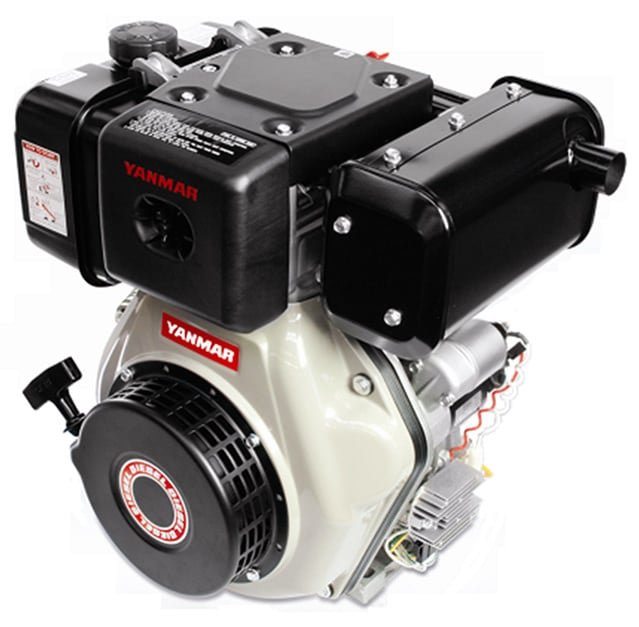

Yanmar L100W6-E

Built: 2024-2024 · Series: Other models

Source: https://www.lectura-specs.com/en/model/components/engines-ya

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L100W6-E comes from Yanmar. Production: 2024. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 7 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar range ranges from 5 to 160 kW; the L100W6-E sits at the bottom of that range with 7 kW. Its immediate neighbours are the L100VDML2 below it with 6 kW and the 2CA1-L above it with 8 kW. 1272 Yanmar models across 66 series are on record. The model is listed under Non-road diesel engines. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine familySYDXL.436H1E; RYDXL.436H1E; TYDXL.436H1Ecorrect
Engine familiesSYDXL.436H1E; RYDXL.436H1E; TYDXL.436H1Ecorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output7 kWcorrect
Power bandkW<8correct
Rated speed3,600 rpmcorrect
Maximum torque24.7 N·mcorrect
Speed at max. torque2,000 rpmcorrect
Cylinders1correct
Cylinder layoutin linecorrect
Bore86 mmcorrect
Stroke75 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Built from2024correct
Built to2026correct
Model year from2024correct
Model year to2026correct

Frequently asked questions

How much power does the Yanmar L100W6-E have?

The Yanmar L100W6-E delivers 7 kW.

When was the Yanmar L100W6-E built?

Production years: 2024.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
