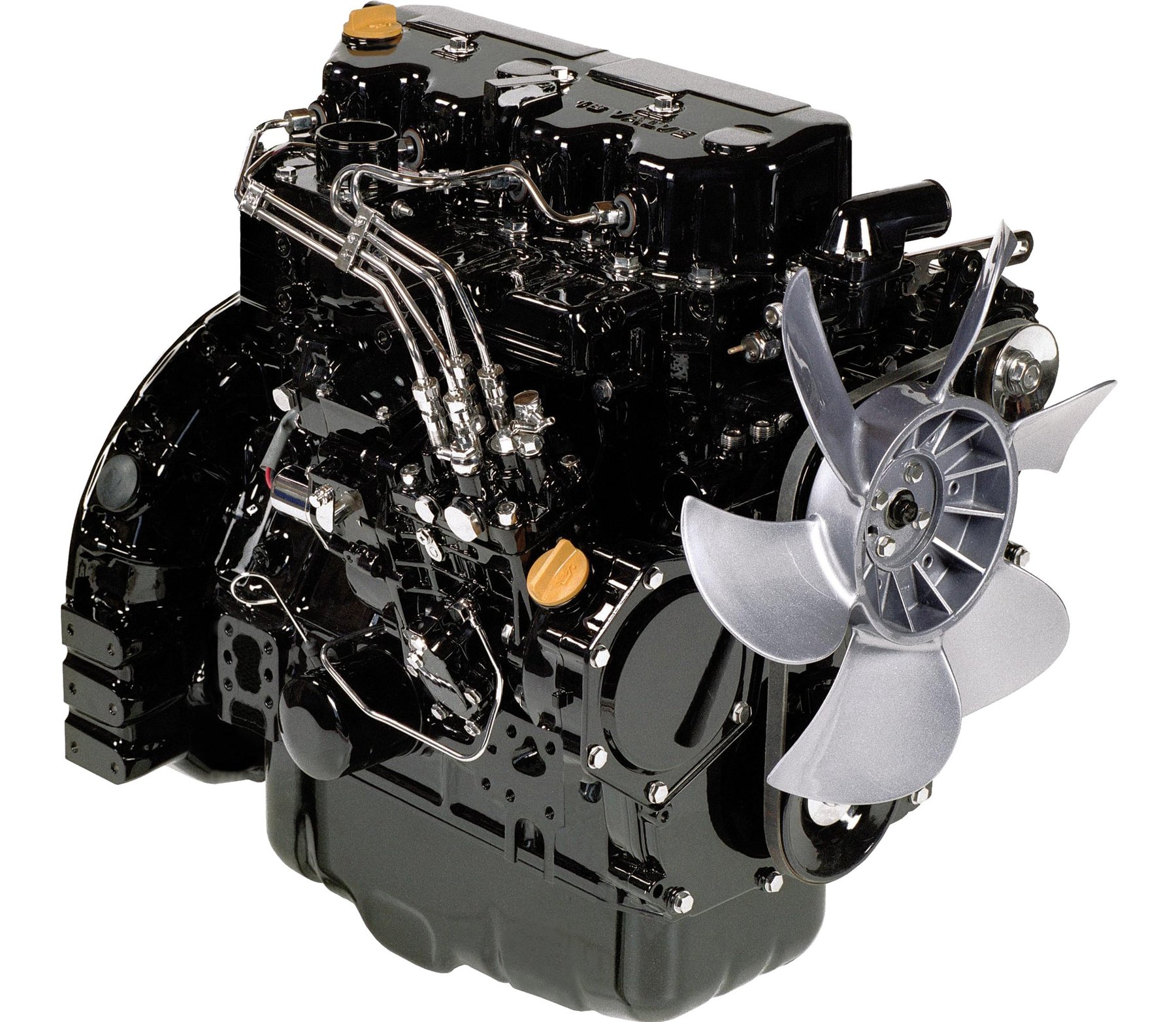

Yanmar 4DDWAC

Built: 2024-2024 · Series: Other models

Source: https://storage.googleapis.com/dhjebofffcpmpe/how-does-a-yan

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 4DDWAC comes from Yanmar. Production: 2024. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 96 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar range ranges from 5 to 160 kW; the 4DDWAC sits in the middle of that range with 96 kW. Its immediate neighbours are the 4XHWCC below it with 95 kW and the 4XHWAC above it with 100 kW. 1272 Yanmar models across 66 series are on record. The model is listed under Non-road diesel engines. 24 verified figures from 1 source are on file.

Technical data

Engine

Engine familySYDXL03.8HDA; TYDXL03.8HDA; RYDXL03.8HDAcorrect
Engine familiesSYDXL03.8HDA; TYDXL03.8HDA; RYDXL03.8HDAcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output96 kWcorrect
Power band56<=kW<130correct
Rated speed2,000 rpmcorrect
Maximum torque550 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore101 mmcorrect
Stroke120 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Built from2024correct
Built to2026correct
Model year from2024correct
Model year to2026correct

Frequently asked questions

How much power does the Yanmar 4DDWAC have?

The Yanmar 4DDWAC delivers 96 kW.

When was the Yanmar 4DDWAC built?

Production years: 2024.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
