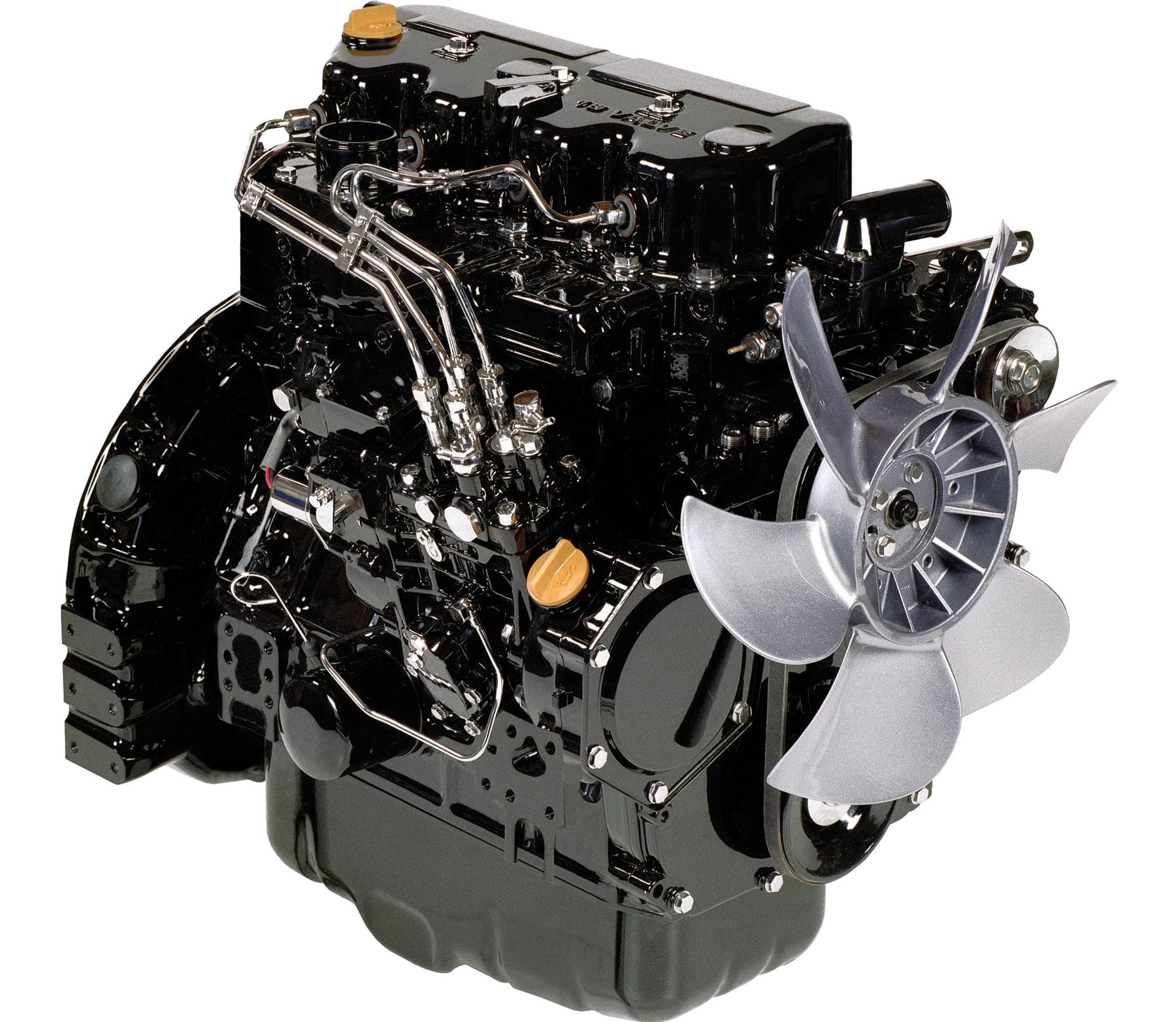

Yanmar 3VNNA

Built: 2012-2012 · Series: Other models

More machines from model year 2012

Source: https://storage.googleapis.com/dhjebofffcpmpe/how-does-a-yan

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yanmar 3VNNA is a machine built by Yanmar. Production: 2012. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 45 kW. The engine is naturally aspirated. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar range ranges from 5 to 160 kW; the 3VNNA sits in the lower part of that range with 45 kW. Its immediate neighbours are the 4TNVFY below it with 44 kW and the 3TNVA above it with 46 kW. 1272 Yanmar models across 66 series are on record. The model is listed under Non-road diesel engines. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine familyCYDXL3.32R4Ncorrect
Engine familiesCYDXL3.32R4Ncorrect
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output45 kWcorrect
Power band37<=kW<56correct
Rated speed2,450 rpmcorrect
Maximum torque185.4 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore98 mmcorrect
Stroke110 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectionindirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageInterim Tier 4correct

Origin and approval

Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2012correct

Frequently asked questions

How much power does the Yanmar 3VNNA have?

The Yanmar 3VNNA delivers 45 kW.

When was the Yanmar 3VNNA built?

Production years: 2012.
