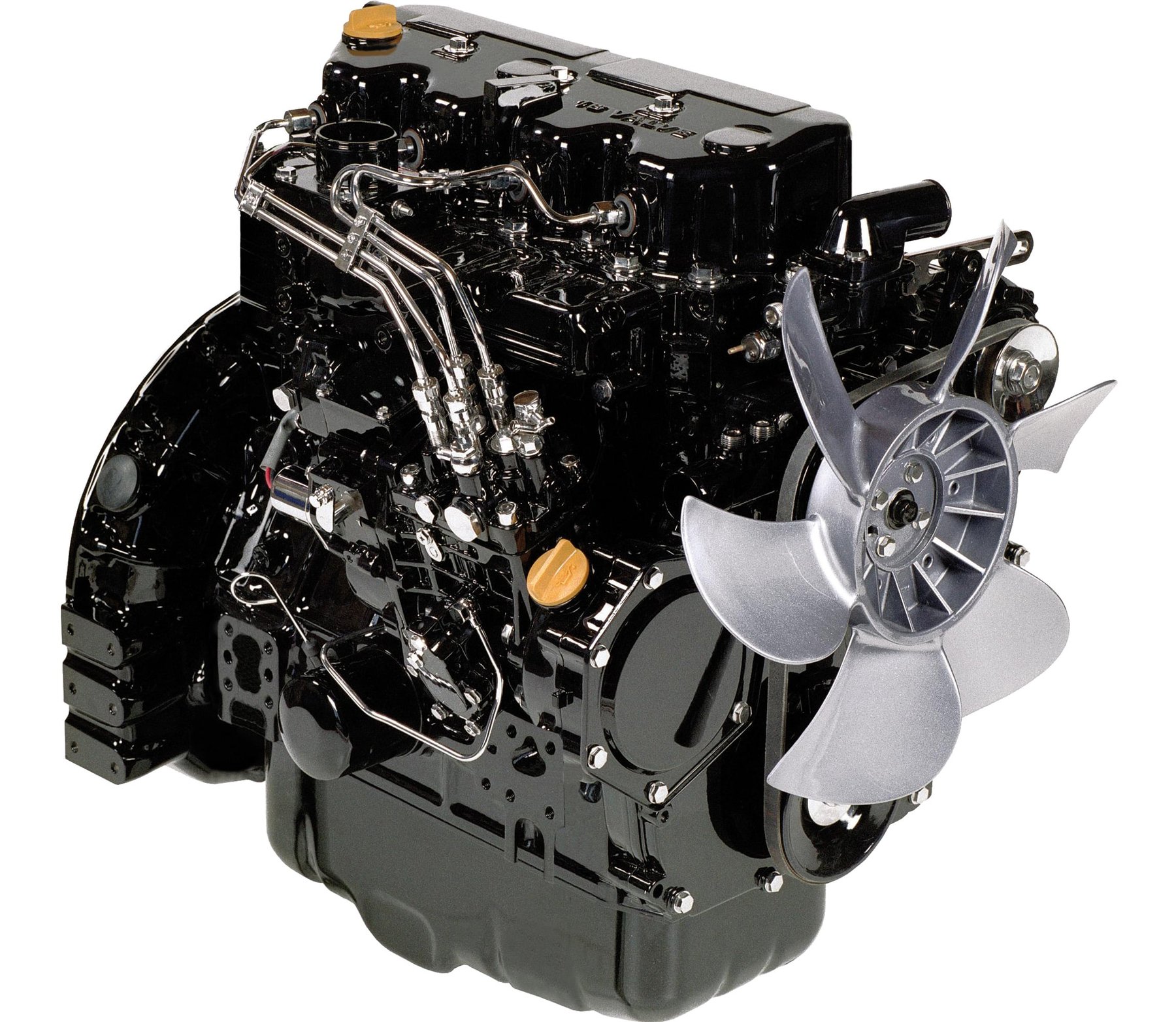

Yanmar 3NNMA

Built: 2012-2012 · Series: Other models

Source: https://storage.googleapis.com/dhjebofffcpmpe/how-does-a-yan

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3NNMA comes from Yanmar. Production: 2012. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 33 kW. The engine is naturally aspirated. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Yanmar range ranges from 5 to 160 kW; the 3NNMA sits in the lower part of that range with 33 kW. Its immediate neighbours are the WUN1P below it with 32 kW and the 3NNLA above it with 34 kW. 1272 Yanmar models across 66 series are on record. The model is listed under Non-road diesel engines. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine familyCYDXL2.19K4Ncorrect
Engine familiesCYDXL2.19K4Ncorrect
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output33 kWcorrect
Power band19<=kW<37correct
Rated speed2,600 rpmcorrect
Maximum torque145.1 N·mcorrect
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore88 mmcorrect
Stroke90 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageInterim Tier 4correct

Origin and approval

Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2012correct

Frequently asked questions

How much power does the Yanmar 3NNMA have?

The Yanmar 3NNMA delivers 33 kW.

When was the Yanmar 3NNMA built?

Production years: 2012.
