Start › Forklift trucks › Yale › HLF18C-5

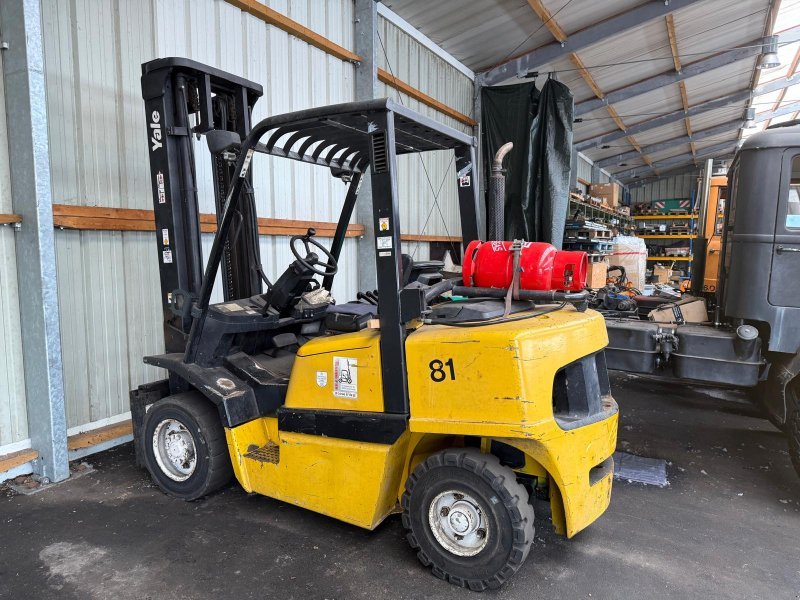

Yale HLF18C-5

Series: Yale Forklift

Source: https://www.technikboerse.com/en/gebraucht/forklift-truck-17

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yale Forklift series from Yale includes the HLF18C-5. The engine with a displacement of 1,999.2 cm³. Rated speed is 2,300 rpm. The machine is 960.1 mm wide. The unladen weight is 3,064.5 kg. The wheelbase measures 1,252.7 mm. Ground clearance is 100.1 mm. Top speed is 19.5 km/h. Maximum torque is reached at 1,500 rpm. The engine fitted is the 4G63-32HL. The Yale Forklift series covers 72 models. Unladen weight within it ranges from 2,766.9 to 18,710 kg; the HLF18C-5 sits at the bottom of that range with 3,064.5 kg. Its immediate neighbours are the GLP 16 VX below it with 3,059 kg and the GDP 18 VX above it with 3,134 kg. 344 Yale models across 15 series are on record. The model is listed under Forklift trucks. 9 verified figures from 1 source are on file.

Technical data

Engine

Engine model4G63-32HLcorrect
Rated speed2,300 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Displacement1,999.2 cm³correct

Dimensions and weights

Width960.1correct
Wheelbase1,252.7correct
Ground clearance100.1correct
Unladen weight3,064.5 kgcorrect

Drivetrain and chassis

Top speed19.5 km/hcorrect

Frequently asked questions

How much does the Yale HLF18C-5 weigh?

The unladen weight is 3,064 kg.

What engine does the Yale HLF18C-5 have?

1,999 cm³ displacement.

How fast does the Yale HLF18C-5 go?

Top speed is 19.5 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
