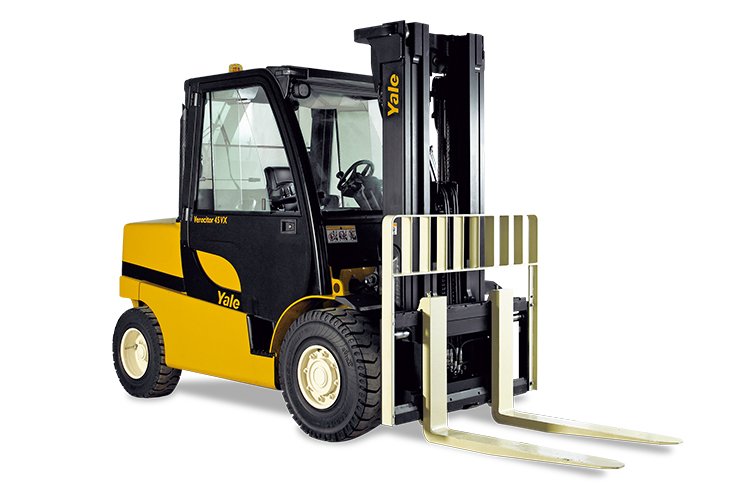

Yale GDP 55 VX

Series: Yale Forklift

Source: https://www.yale.com/de-de/emea/stapler-mit-verbrennungsmoto

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The GDP 55 VX from Yale is part of the Yale Forklift series. The engine has 4 cylinders, with a displacement of 4,501.5 cm³. Rated speed is 2,050 rpm. The unladen weight is 7,654 kg. The wheelbase measures 2,100.1 mm. Ground clearance is 194.1 mm. Top speed is 18.5 km/h. The fuel is diesel. Maximum torque is reached at 1,300 rpm. The Yale Forklift series covers 72 models. Unladen weight within it ranges from 2,766.9 to 18,710 kg; the GDP 55 VX sits in the lower part of that range with 7,654 kg. Its immediate neighbours are the GLP 55 VX below it with 7,529 kg and the HDF50-7S above it with 8,347 kg. 344 Yale models across 15 series are on record. The model is listed under Forklift trucks. 11 verified figures from 1 source are on file.

Technical data

Engine

Fueldieselcorrect
Rated speed2,050 rpmcorrect
Speed at max. torque1,300 rpmcorrect
Cylinders4correct
Displacement4,501.5 cm³correct

Dimensions and weights

Width1,450.8correct
Wheelbase2,100.1correct
Ground clearance194.1correct
Unladen weight7,654 kgcorrect

Drivetrain and chassis

Tyre typeSupercushioncorrect
Top speed18.5 km/hcorrect

Working data

Lifting capacity5,500 kgcorrect
Lift height5,300 mmcorrect
Mast typetriplexcorrect

Frequently asked questions

How much does the Yale GDP 55 VX weigh?

The unladen weight is 7,654 kg.

What engine does the Yale GDP 55 VX have?

4 cylinders, 4,502 cm³ displacement, Diesel.

How fast does the Yale GDP 55 VX go?

Top speed is 18.5 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
