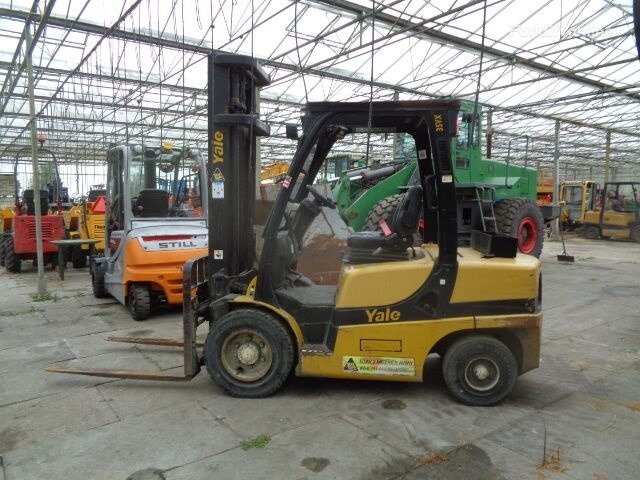

Yale GDP 35 VX

Series: Yale Forklift

Source: https://www.truck1.eu/material-handling-equipment/diesel-for

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the GDP 35 VX, Yale offers a model from the Yale Forklift series. The engine has 4 cylinders, with a displacement of 3,320 cm³. Rated speed is 2,400 rpm. The unladen weight is 4,816 kg. The wheelbase measures 1,700.8 mm. Ground clearance is 132.1 mm. Top speed is 20.1 km/h. The fuel is diesel. Maximum torque is reached at 1,400 rpm. The engine fitted is the 4TNE98. The Yale Forklift series covers 72 models. Unladen weight within it ranges from 2,766.9 to 18,710 kg; the GDP 35 VX sits at the bottom of that range with 4,816 kg. Its immediate neighbours are the HDF30-5 below it with 4,540 kg and the HDF35 above it with 5,728.9 kg. 344 Yale models across 15 series are on record. The model is listed under Forklift trucks. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNE98correct
Fueldieselcorrect
Rated speed2,400 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,320 cm³correct

Dimensions and weights

Width1,188.7correct
Wheelbase1,700.8correct
Ground clearance132.1correct
Unladen weight4,816 kgcorrect

Drivetrain and chassis

Tyre typeSupercushioncorrect
Top speed20.1 km/hcorrect

Working data

Lifting capacity3,290 kgcorrect
Lift height4,600 mmcorrect
Mast typestandardcorrect

Frequently asked questions

How much does the Yale GDP 35 VX weigh?

The unladen weight is 4,816 kg.

What engine does the Yale GDP 35 VX have?

4 cylinders, 3,320 cm³ displacement, Diesel.

How fast does the Yale GDP 35 VX go?

Top speed is 20.1 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 15 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
