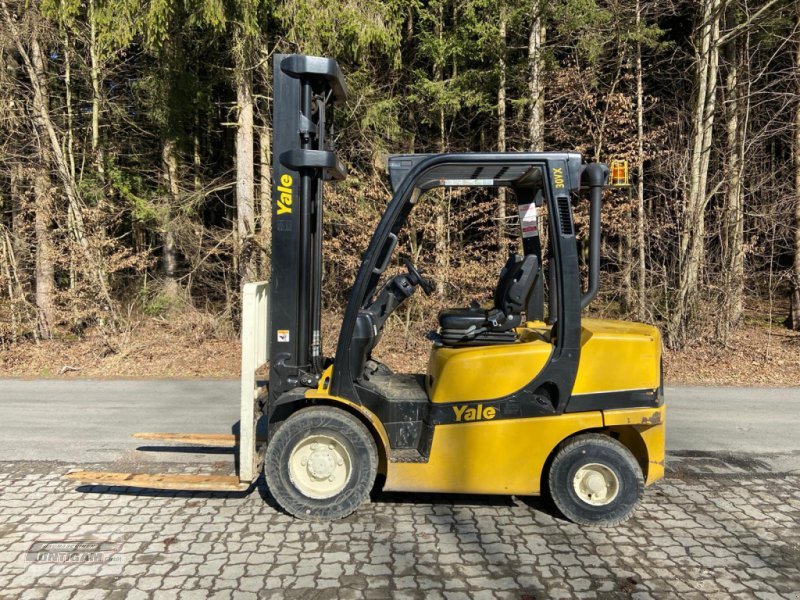

Yale GDP 30 VX

Series: Yale Forklift

Source: https://www.technikboerse.at/gebraucht/stapler-1551/yale-129

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Yale GDP 30 VX is a model in the Yale Forklift series. The engine has 4 cylinders, with a displacement of 2,659.6 cm³. Rated speed is 2,450 rpm. The unladen weight is 4,505 kg. The wheelbase measures 1,624.6 mm. Ground clearance is 132.1 mm. Top speed is 18.3 km/h. The fuel is diesel. Maximum torque is reached at 1,400 rpm. The engine fitted is the 4TNE92. The Yale Forklift series covers 72 models. Unladen weight within it ranges from 2,766.9 to 18,710 kg; the GDP 30 VX sits at the bottom of that range with 4,505 kg. Its immediate neighbours are the HLF30C-5 below it with 4,372.2 kg and the HDF30-5 above it with 4,540 kg. 344 Yale models across 15 series are on record. The model is listed under Forklift trucks. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNE92correct
Fueldieselcorrect
Rated speed2,450 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement2,659.6 cm³correct

Dimensions and weights

Width1,188.7correct
Wheelbase1,624.6correct
Ground clearance132.1correct
Unladen weight4,505 kgcorrect

Drivetrain and chassis

Tyre typeSupercushioncorrect
Top speed18.3 km/hcorrect

Working data

Lifting capacity3,000 kgcorrect
Lift height3,605 mmcorrect
Mast typeduplexcorrect

Frequently asked questions

How much does the Yale GDP 30 VX weigh?

The unladen weight is 4,505 kg.

What engine does the Yale GDP 30 VX have?

4 cylinders, 2,660 cm³ displacement, Diesel.

How fast does the Yale GDP 30 VX go?

Top speed is 18.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
