Start › Case IH › Steiger Quadtrac STX440

Case IH Steiger Quadtrac STX440

Built: 2001–2001 · Series: Steiger

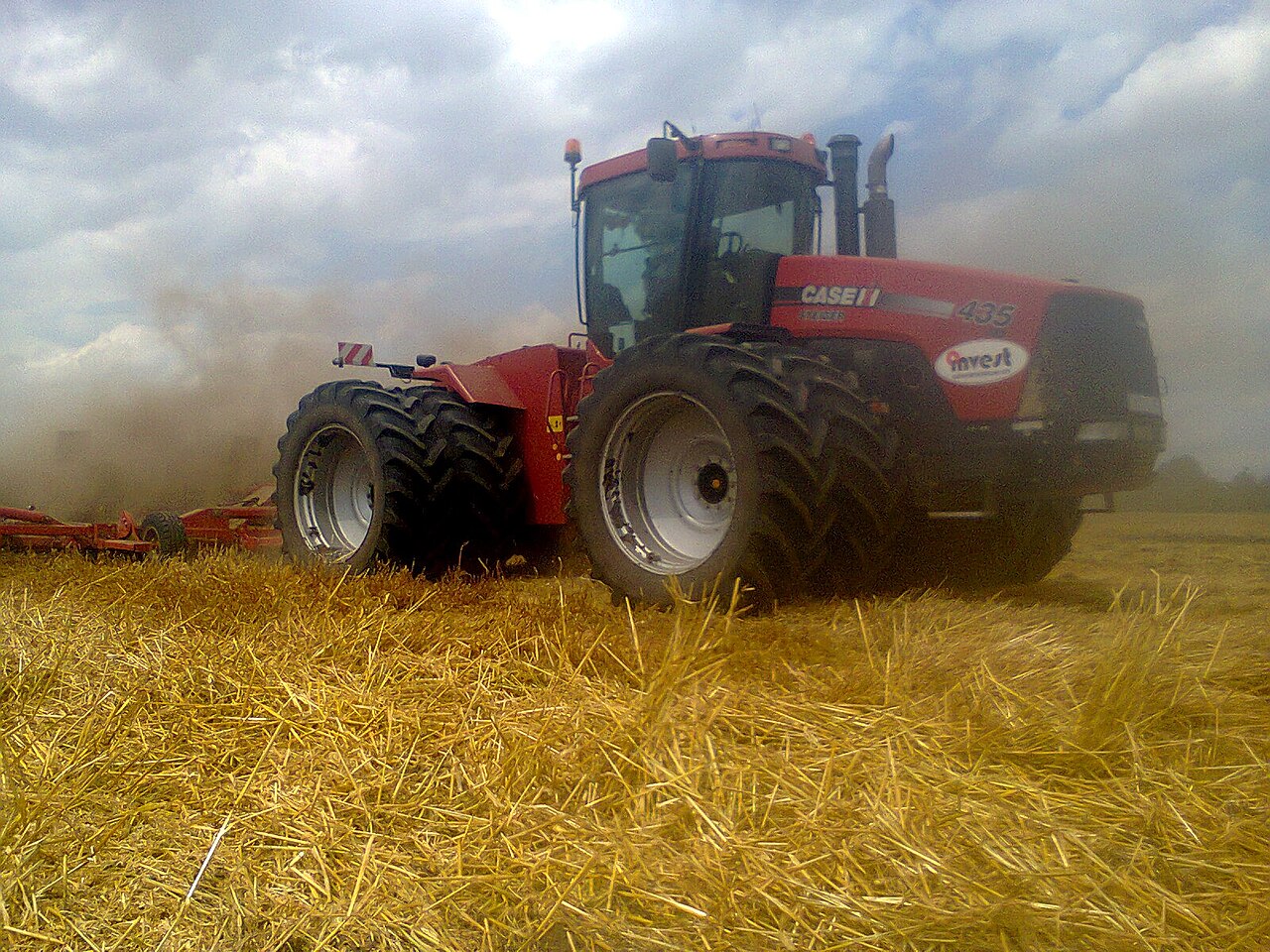

Photo from this series — not necessarily this version.Wikimedia Commons · CC BY 3.0 · ferenc paizs · Dateiseite

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Weitere Modelle series from Case IH includes the Steiger Quadtrac STX440. Production: 2001–2001. The engine delivers 440 hp (330 kW), has 6 cylinders. The engine comes from Cummins. Rated speed is 2,000 rpm. Drive: tracked undercarriage. The engine is water-cooled. The model was built in Fargo, North Dakota, USA. The fuel is diesel. The linkage is category IVN. The PTO runs at 1000 rpm. It was succeeded by the Case IH Steiger 450 Quadtrac. The Weitere Modelle series covers 33 models. Rated output within it ranges from 26 to 600 hp; the Steiger Quadtrac STX440 sits in the upper part of that range with 440 hp. Its immediate neighbours are the Steiger 350 HD below it with 350 hp and the Steiger Quadtrac STX480 above it with 480 hp. 521 Case IH models across 60 series are on record. 20 verified figures are on file.

Technical data

Engine

Engine makeCumminscorrect
Fueldieselcorrect
Power440 hp (330 kW)correct
Rated speed2,000correct
Cylinders6correct
Displacement912 cu incorrect
Bore5,394correct
Stroke6,654correct
Coolingwater-cooledcorrect

Dimensions and weights

Unladen weight51,335correct

Drivetrain and chassis

Drivetracked undercarriagecorrect

Working data

Lifting capacity19,500correct
PTO speed1,000correct
Linkage categoryIVNcorrect

Origin and approval

PlantFargo, North Dakota, USAcorrect
SuccessorCase IH Steiger 450 Quadtraccorrect

Frequently asked questions

How much power does the Case IH Steiger Quadtrac STX440 have?

The Case IH Steiger Quadtrac STX440 delivers 440 hp.

What engine does the Case IH Steiger Quadtrac STX440 have?

6 cylinders, diesel.

When was the Case IH Steiger Quadtrac STX440 built?

Production years: 2001.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
