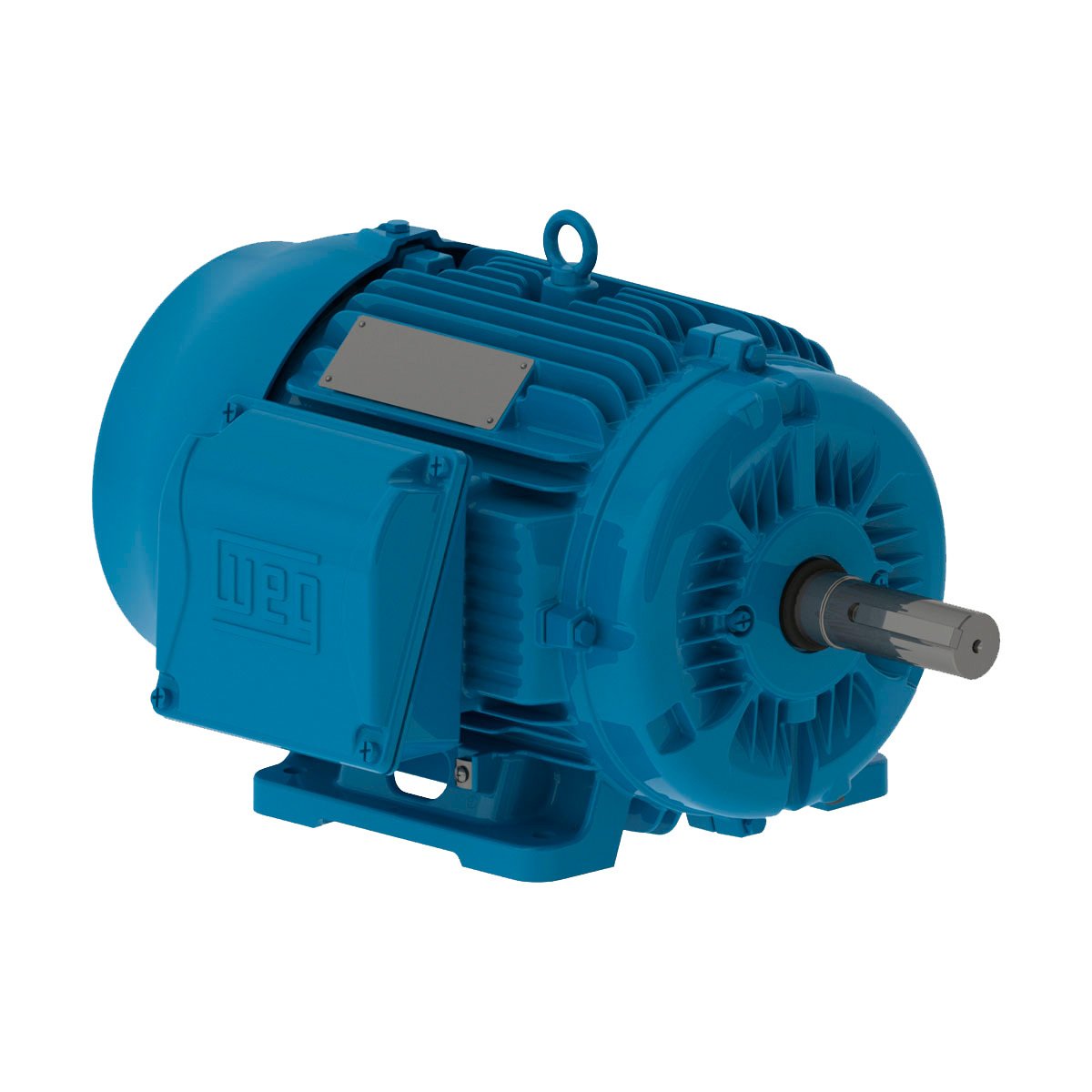

WEG W22
Series: Other models
The WEG W22 is a three-phase induction motor. The rated output is 45 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 225 S/M. The protection class is IP56. The efficiency is 93.8 per cent at full load, 94.3 per cent at 75 per cent load and 94.2 per cent at half load. The mounting arrangement to IEC 60034-7 is B8. The motor is built in Brazil. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the WEG range ranges from 0.75 to 160 kW; the W22 sits in the lower part of that range with 45 kW. Its immediate neighbours are the 05036ET3E326TSC-W22 below it with 37.5 kW and the K43 EXDE2 above it with 55 kW. 433 WEG models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.
Technical data
Engine
| Rated output | 45 kWcorrect |
|---|
Electrical data
| Number of poles | 4correct |
|---|---|
| Protection class | IP56correct |
| Frame size | 225 S/Mcorrect |
| Mounting (IEC 60034-7) | B8correct |
| Efficiency at full load | 93.8 %correct |
| Efficiency at 75 % load | 94.3 %correct |
| Efficiency at half load | 94.2 %correct |
Origin and approval
| Country of manufacture | Brazilcorrect |
|---|---|
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the WEG W22 have?
The WEG W22 delivers 45 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
