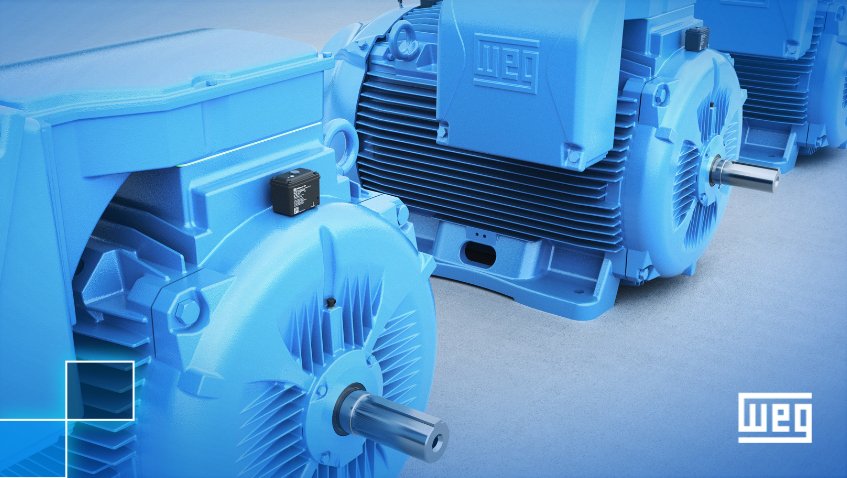

WEG K38B EXDE2

Series: Other models

Source: https://www.weg.net/institutional/KM/pt/news/produtos-e-solu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

WEG lists the K38B EXDE2 as a three-phase induction motor. The rated output is 30 kW. The motor is eight-pole, which at 50 Hz gives a synchronous speed of 750 rpm. The rated voltage is 415 V. The housing is frame size 250 S in foot-mounted form. The protection class is IP55. The efficiency is 93 per cent at full load, 92.5 per cent at 75 per cent load and 91.7 per cent at half load. The motor weighs 440 kg. At full load it delivers 384.87 Nm. The motor is built in Brazil. The figures come from the Australian MEPS register under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the WEG range ranges from 0.75 to 160 kW; the K38B EXDE2 sits in the lower part of that range with 30 kW. Its immediate neighbours are the KTE36B PHEM below it with 22 kW and the K39 EXDE2 above it with 37 kW. 433 WEG models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output30 kWcorrect

Dimensions and weights

Weight440 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles8correct
Protection class55correct
Frame size250 S (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, B34, B14, B6, B7, B8, V5, V6, V1, V3, V15, V36, V18, V19correct
Efficiency at full load93 %correct
Efficiency at 75 % load92.5 %correct
Efficiency at half load91.7 %correct

Origin and approval

Country of manufactureBrazilcorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the WEG K38B EXDE2 have?

The WEG K38B EXDE2 delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
