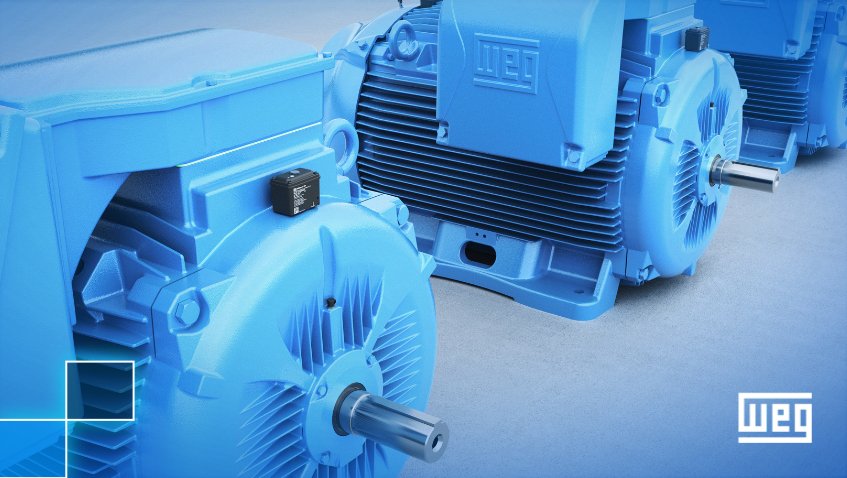

WEG K196 EXDE2

Series: Other models

Source: https://www.weg.net/institutional/KM/pt/news/produtos-e-solu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The K196 EXDE2 from WEG is a three-phase induction motor. The rated output is 4 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 132 M in foot-mounted form. The protection class is IP55. The efficiency is 87.2 per cent at full load, 86.6 per cent at 75 per cent load and 85 per cent at half load. The motor weighs 68 kg. At full load it delivers 40.24 Nm. The motor is built in Brazil. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the WEG range ranges from 0.75 to 160 kW; the K196 EXDE2 sits at the bottom of that range with 4 kW. Its immediate neighbours are the A070556678 below it with 3.7 kW and the 20373936 above it with 5.5 kW. 433 WEG models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output4 kWcorrect

Dimensions and weights

Weight68 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles6correct
Protection class55correct
Frame size132 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, B34, B14, B6, B7, B8, V5, V6, V1, V3, V15, V36, V18, V19correct
Efficiency at full load87.2 %correct
Efficiency at 75 % load86.6 %correct
Efficiency at half load85 %correct

Origin and approval

Country of manufactureBrazilcorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the WEG K196 EXDE2 have?

The WEG K196 EXDE2 delivers 4 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
