WE 1D315L1-2

Series: Other models

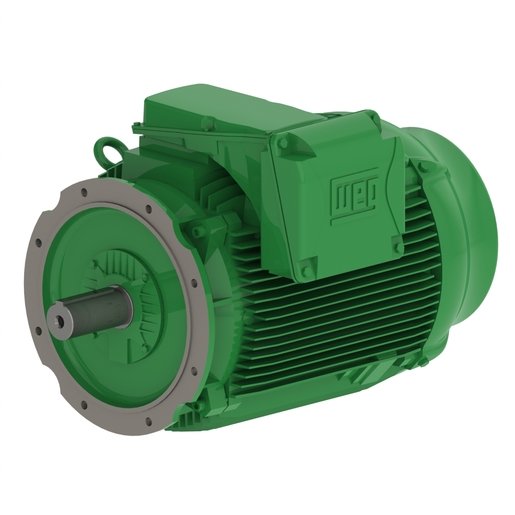

The photo shows the 1D225M-4 from the same series. Source: https://www.weg.net/catalog/weg/NE/en/Electric-Motors/Low-Vo

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

WE lists the 1D315L1-2 as a three-phase induction motor. The rated output is 160 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 315 L in foot-mounted form. The protection class is IP55. The efficiency is 95.3 per cent at full load, 95 per cent at 75 per cent load and 93.8 per cent at half load. Mounting arrangements to IEC 60034-7: B3, V1 and B35. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the WE range ranges from 0.75 to 160 kW; the 1D315L1-2 sits at the top of that range with 160 kW. Its immediate neighbours are the 1D355M1-8 below it with 132 kW. 125 WE models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output160 kWcorrect

Electrical data

Number of poles2correct
Protection classIP55correct
Frame size315 L (foot)correct
Mounting (IEC 60034-7)B3, V1, B35correct
Efficiency at full load95.3 %correct
Efficiency at 75 % load95 %correct
Efficiency at half load93.8 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the WE 1D315L1-2 have?

The WE 1D315L1-2 delivers 160 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
