Volvo D13-455
Built: 2024-2024 · Series: Other models

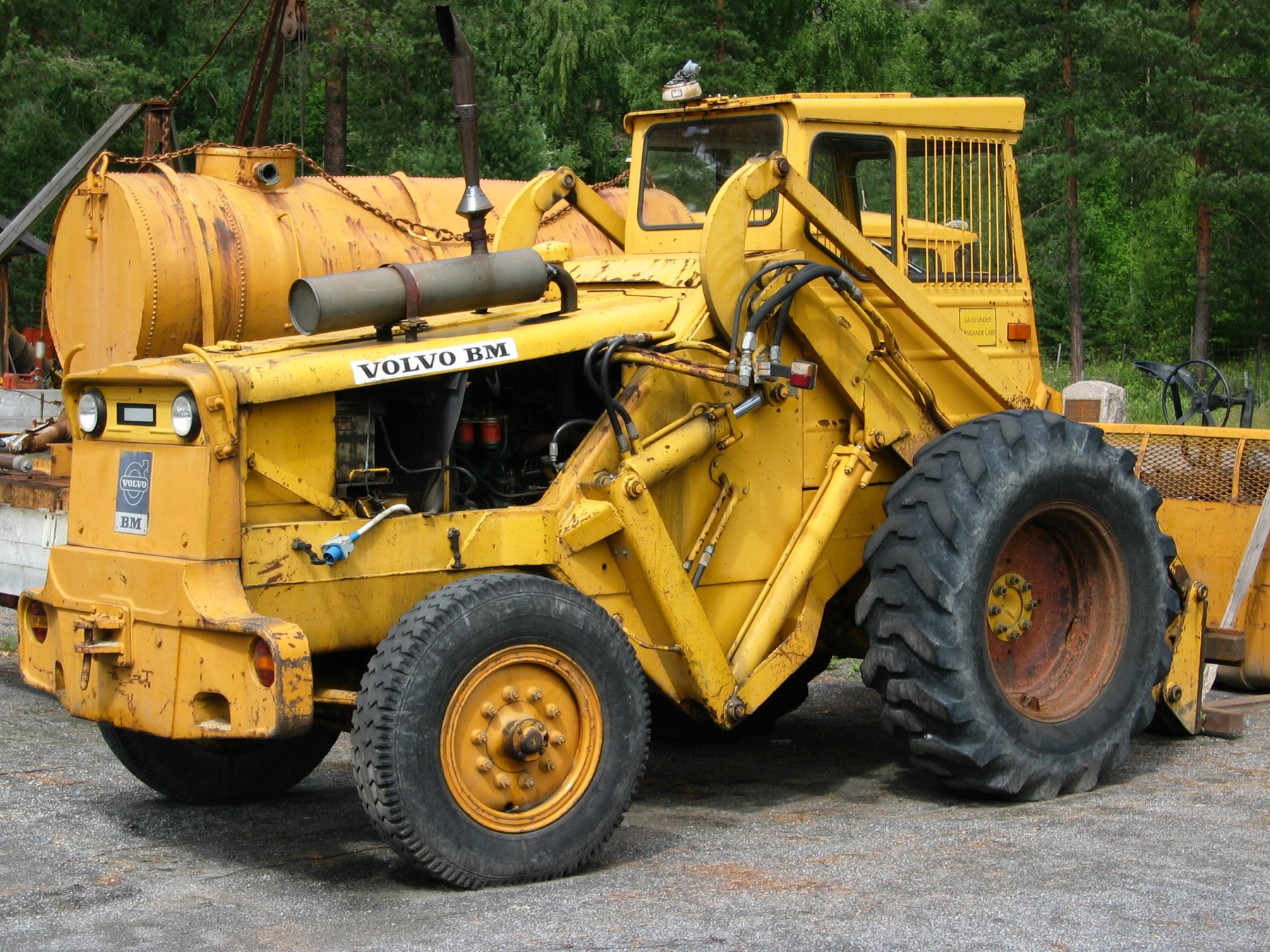

The photo shows the MP7-325E from the same series.
Source: https://commons.wikimedia.org/wiki/File:Volvo_Back_Loader_19
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The D13-455 comes from Volvo. Production: 2024. The fuel is 7-15 ppm ultra low sulfur diesel. The rated output is 466 hp. The engine is turbocharged. It is a diesel engine. Rated output across the Volvo range ranges from 325 to 605 kW; the D13-455 sits in the middle of that range with 466 kW. Its immediate neighbours are the MP8-455CA below it with 465 kW and the D13H - 475 above it with 475 kW. 5366 Volvo models across 29 series are on record. The model is listed under Heavy-duty on-road engines. 20 verified figures from 1 source are on file.
Technical data
Engine
| Engine code | ETOR-2510_TC-4correct |
|---|---|
| Engine family | TVPTH12.8CA4; TVPTH12.8EP4; SVPTH12.8CA4; SVPTH12.8EP4; RVPTH12.8CA4; RVPTH12.8EP4correct |
| Engine families | TVPTH12.8CA4; TVPTH12.8EP4; SVPTH12.8CA4; SVPTH12.8EP4; RVPTH12.8CA4; RVPTH12.8EP4correct |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 466 hpcorrect |
| Rated speed | 1,600 rpmcorrect |
| Maximum torque | 1,888 ft·lbfcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Displacement | 12.8 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | ETOR-2510_TC-4correct |
|---|---|
| Built from | 2024correct |
| Built to | 2026correct |
| Model year from | 2024correct |
| Model year to | 2026correct |
Other data
| Anwendungsbereich | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Volvo D13-455 have?
The Volvo D13-455 delivers 466 kW.
When was the Volvo D13-455 built?
Production years: 2024.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
D11H-325
D11H-355
D11H-365
D11H-385
D11H-405
D11M-325
D11M-355
D11M-365
D11M-385
D11M-425
D11N-325
D11N-355
Sources: [1]
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Teile zu diesem Motor (48)
Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 23344546 | Aftertreatment Control Module (ACM) | Volvo |
| 23937771 | Aftertreatment Hydrocarbon Injector (AHI) Injector | Volvo |
| 23945531 | Closed Loop Butterfly Valve | Volvo |
| 23831772 | Crankcase Breather | Volvo |
| 22757148 | DEF Injector (dosing valve);DEF Injector - 2-Box;DEF Injector (dosing valve);DEF Injector (dosing valve);DEF Injector - 2-Box;DEF Injector;DEF Injector - Linear (1-Box) | Volvo |
| 24169188 | DEF Pump Assembly;DEF Pump assembly (Pump Unit);DEF Pump Assembly;DEF Pump assembly (Pump Unit);DEF Pump assembly (Pump Unit);DEF Pump Assembly | Volvo |
| 24405156 | Sensor DPF Differential Pressure | Volvo |
| 23488881 | Sensor DPF Differential Pressure | Volvo |
| 23364939 | EGR Cooler | Volvo |
| 24328031 | EGR Valve | Volvo |
| 24862905 | EGR Valve | Volvo |
| 23851583 | Engine Control Module (ECM) | Volvo |
| 23851801 | Engine Control Module (ECM) | Volvo |
| 24290502 | Fuel Injectors - Non-Pumping | Volvo |
| 24696277 | Fuel Injectors - Non-Pumping;Unit Injectors Non-Pumping | Volvo |
| 26048179 | Fuel Injectors - Non-Pumping | Volvo |
| 24290500 | Fuel Injectors - Pumping | Volvo |
| 24696275 | Fuel Injectors - Pumping;Unit Injectors Pumping | Volvo |
| 26048177 | Fuel Injectors - Pumping | Volvo |
| 23531738 | Intake Throttle Valve | Volvo |
| 24000437 | Sensor NOx - SCR In | Volvo |
| 24000439 | Sensor NOx - SCR Out | Volvo |
| 23706652 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 23739382 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 23739383 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24374516 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24681290 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24690891 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24690892 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24861331 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24861333 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 24861335 | SCR and DPF Assembly - Linear (1-Box) | Volvo |
| 20260007 | Sensor AHI Fuel Pressure | Volvo |
| 22899626 | Sensor AHI Fuel Pressure | Volvo |
| 22422785 | Sensor Inlet Manifold Temperature, Pressure;Sensor Temperature & Pressure Inlet Manifold Air | Volvo |
| 24848907 | Sensor Inlet Manifold Temperature, Pressure | Volvo |
| 23803888 | Sensor Particulate Matter (PM) | Volvo |
| 21164790 | Sensor Temperature, Post-DPF (T3) - 1-Box;Sensor Temperature, Post-DPF (T3) - Linear (1-Box) | Volvo |
| 21225020 | Sensor DPF Downstream Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Post-SCR (T4) - Linear (1-Box);Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box | Volvo |
| 21542714 | Sensor Temperature, Pre-DOC (T1) - Linear (1-Box) | Volvo |
| 24836657 | Sensor Temperature, Pre-DOC (T1) - Linear (1-Box) | Volvo |
| 22035664 | Sensor Temperature, Pre-DPF (T2) - Linear (1-Box) | Volvo |
| 24016800 | Sensor Urea Quality and Level (UQLS) - 26" | Volvo |
| 24726240 | Sensor Urea Quality and Level (UQLS) - 26" | Volvo |
| 24016796 | Sensor Urea Quality and Level (UQLS) - 76L | Volvo |
| 24726239 | Sensor Urea Quality and Level (UQLS) - 76L | Volvo |
| 24398727 | Turbocharger (TC) | Volvo |
| 24705661 | Turbocharger (TC) | Volvo |
Quelle: EPA HD Engines 2015–Present
