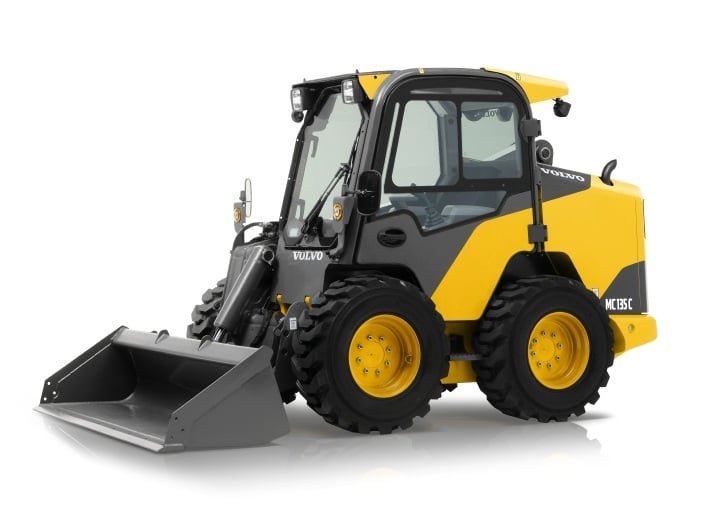

Volvo MC135C

Series: Volvo Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Skid Steer Loader series from Volvo includes the MC135C. The engine delivers 93.3 hp (68.6 kW), has 4 cylinders, with a displacement of 4,391.7 cm³. Torque is 408.1 Nm. Rated speed is 2,200 rpm. The wheelbase measures 1,222.2 mm. Ground clearance is 238.3 mm. Top speed is 10.9 km/h. The tank holds 103.3 litres. Maximum torque is reached at 1,800 rpm. The pump delivers 87.1 l/min. The hydraulic tank holds 60.2 litres. Working pressure is 229.9 bar. The cooling system holds 15.5 litres. The electrical system runs on 12 V. The engine fitted is the TC63. The Volvo Skid Steer Loader series covers 29 models. Rated output within it ranges from 50.2 to 93.3 hp; the MC135C sits at the top of that range with 93.3 hp. Its immediate neighbours are the MC90 below it with 87.2 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTC63correct
Power93.3 hp (68.6 kW)correct
Rated speed2,200 rpmcorrect
Torque408.1correct
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Displacement4,391.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity15.5 lcorrect

Dimensions and weights

Wheelbase1,222.2correct
Ground clearance238.3correct

Drivetrain and chassis

Top speed10.9 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow87.1 l/mincorrect
Hydraulic oil capacity60.2 lcorrect
Hydraulic pressure229.9correct
Fuel tank capacity103.3 lcorrect

Other data

Height2,090.9correct

Frequently asked questions

How much power does the Volvo MC135C have?

The Volvo MC135C delivers 93.3 hp.

What engine does the Volvo MC135C have?

4 cylinders, 4,392 cm³ displacement.

How fast does the Volvo MC135C go?

Top speed is 10.9 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
