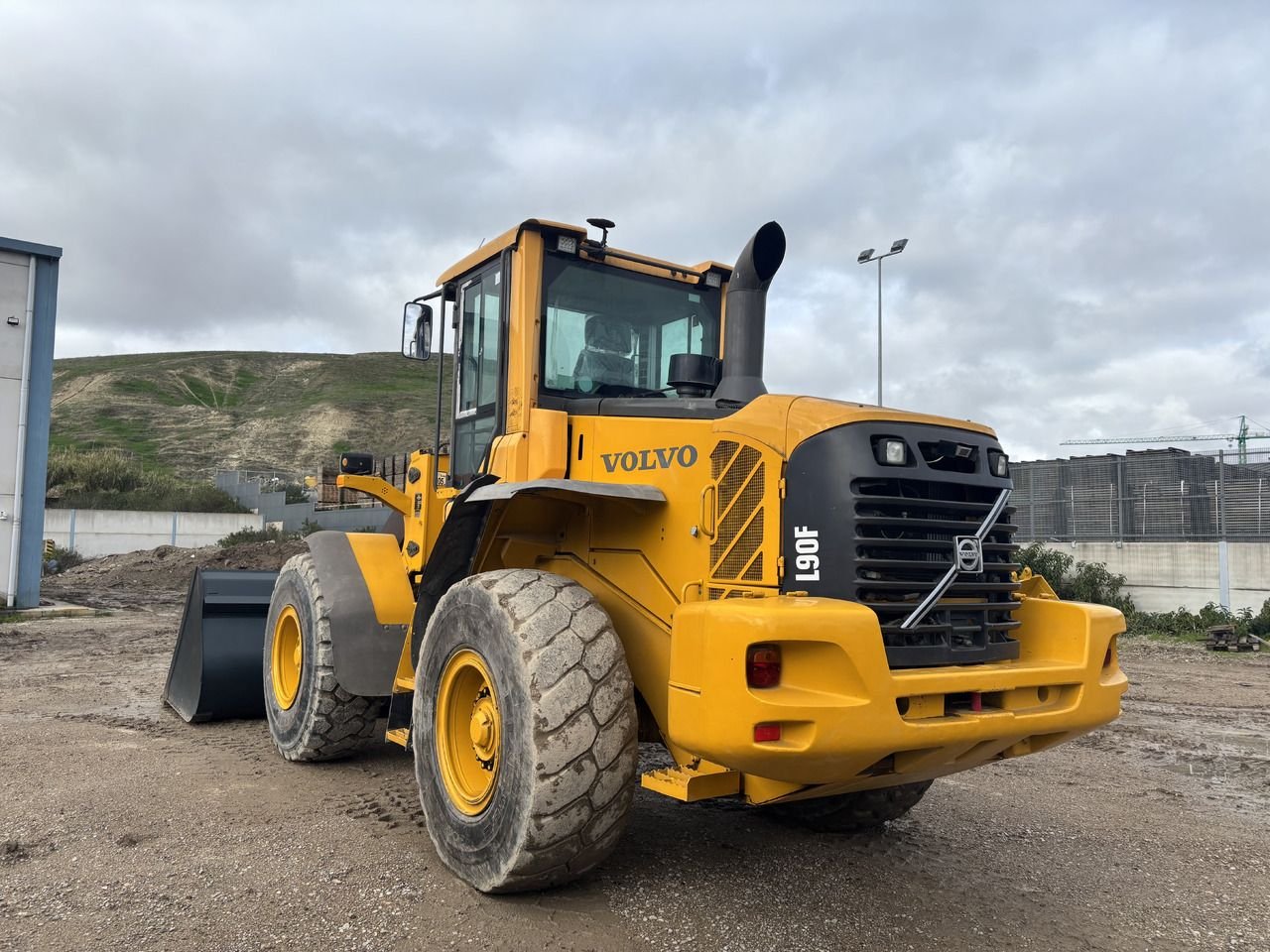

Volvo L90F

Series: Volvo Wheel Loader

Source: https://www.truck1.eu/construction-machinery/wheel-loaders/v

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Wheel Loader series from Volvo includes the L90F. The engine delivers 175.4 hp (128.3 kW), has 6 cylinders, with a displacement of 5,702.7 cm³. Torque is 772.8 Nm. Rated speed is 1,700 rpm. The unladen weight is 15,172.7 kg. The wheelbase measures 3,002.3 mm. Ground clearance is 460.2 mm. The tank holds 224.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 162.8 l/min. The hydraulic tank holds 90.1 litres. The cooling system holds 29.9 litres. The electrical system runs on 24 V. The engine fitted is the D6E LAE3. Tyre size: 20,5 R25 L2. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L90F sits in the lower part of that range with 175.4 hp. Its immediate neighbours are the L70G below it with 173.4 hp and the L90H above it with 186.6 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD6E LAE3correct
Power175.4 hp (128.3 kW)correct
Rated speed1,700 rpmcorrect
Torque772.8correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement5,702.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity29.9 lcorrect

Dimensions and weights

Wheelbase3,002.3correct
Ground clearance460.2correct
Unladen weight15,172.7 kgcorrect

Drivetrain and chassis

Gearbox typeVolvo HTE 125correct
Forward gears4correct
Reverse gears4correct
Tyre size20.5 R25 L2correct
System voltage24 Vcorrect

Working data

Pump flow162.8 l/mincorrect
Hydraulic oil capacity90.1 lcorrect
Fuel tank capacity224.1 lcorrect

Other data

Height3,282.7correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (128 kW / 15.2 t)

Stronger than 66% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L90F have?

The Volvo L90F delivers 175 hp.

How much does the Volvo L90F weigh?

The unladen weight is 15,173 kg.

What engine does the Volvo L90F have?

6 cylinders, 5,703 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
