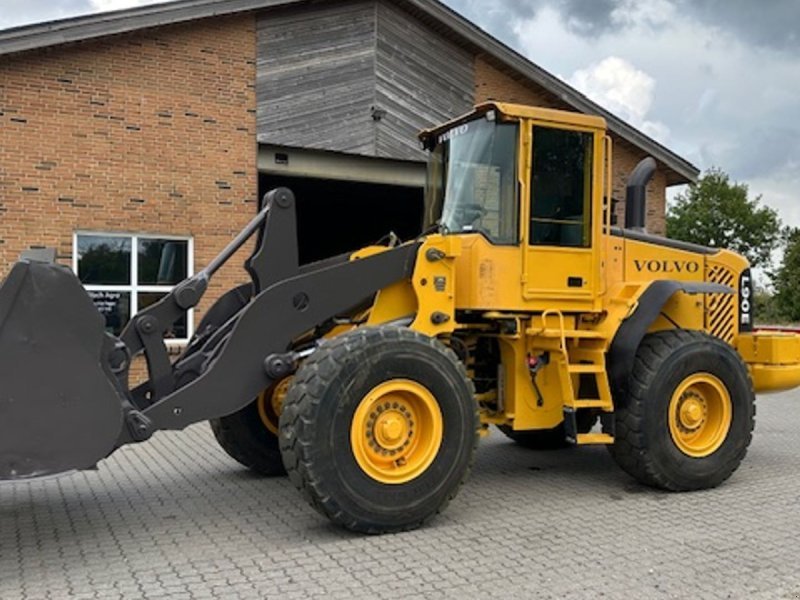

Volvo L90E

Series: Volvo Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/volvo-1

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L90E from Volvo is part of the Volvo Wheel Loader series. The engine delivers 168.3 hp (123 kW), has 6 cylinders, with a displacement of 5,701.1 cm³. Torque is 739.1 Nm. Rated speed is 1,900 rpm. The unladen weight is 15,100 kg. The wheelbase measures 3,002.3 mm. Ground clearance is 402.3 mm. The tank holds 205.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 175.3 l/min. The hydraulic tank holds 115.1 litres. The cooling system holds 36.3 litres. The electrical system runs on 24 V. The engine fitted is the D6D LA E2. Tyre size: 20,5R25 L2. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L90E sits in the lower part of that range with 168.3 hp. Its immediate neighbours are the L60H below it with 166.3 hp and the L70F above it with 171.3 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD6D LA E2correct
Power168.3 hp (123 kW)correct
Rated speed1,900 rpmcorrect
Torque739.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement5,701.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity36.3 lcorrect

Dimensions and weights

Wheelbase3,002.3correct
Ground clearance402.3correct
Unladen weight15,100 kgcorrect

Drivetrain and chassis

Gearbox typeVolvo HTE202correct
Forward gears4correct
Reverse gears4correct
Tyre size20.5R25 L2correct
System voltage24 Vcorrect

Working data

Pump flow175.3 l/mincorrect
Hydraulic oil capacity115.1 lcorrect
Fuel tank capacity205.2 lcorrect

Other data

Height3,261.4correct

Where this model stands

Power-to-weight ratio: 8.1 kW/t (123 kW / 15.1 t)

Stronger than 63% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L90E have?

The Volvo L90E delivers 168 hp.

How much does the Volvo L90E weigh?

The unladen weight is 15,100 kg.

What engine does the Volvo L90E have?

6 cylinders, 5,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
