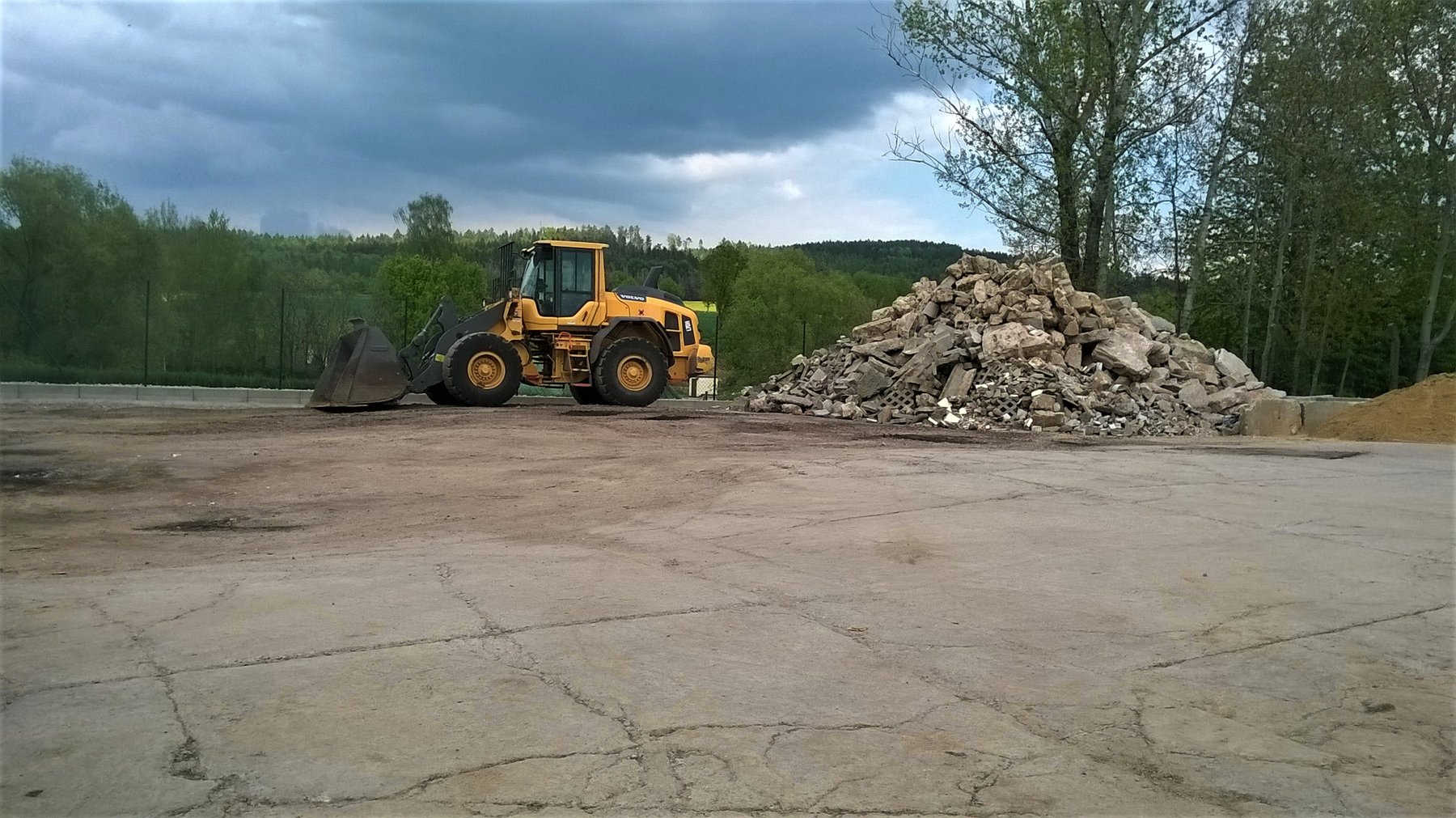

Volvo L70H

Series: Volvo Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=94124597 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Wheel Loader series from Volvo includes the L70H. The engine delivers 172.4 hp (126.8 kW), has 6 cylinders, with a displacement of 5,701.1 cm³. Rated speed is 1,800 rpm. The wheelbase measures 3,002.3 mm. Ground clearance is 472.4 mm. The tank holds 222.2 litres. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 90.1 litres. The cooling system holds 30.3 litres. The engine fitted is the Volvo D6J. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L70H sits in the lower part of that range with 172.4 hp. Its immediate neighbours are the L70F below it with 171.3 hp and the L70G above it with 173.4 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model	Volvo D6Jcorrect
Power	172.4 hp (126.8 kW)correct
Rated speed	1,800 rpmcorrect
Speed at max. torque	1,400 rpmcorrect
Cylinders	6correct
Displacement	5,701.1 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	30.3 lcorrect

Dimensions and weights

Wheelbase	3,002.3correct
Ground clearance	472.4correct

Working data

Hydraulic oil capacity	90.1 lcorrect
Fuel tank capacity	222.2 lcorrect

Other data

Height	3,282.7correct

Frequently asked questions

How much power does the Volvo L70H have?

The Volvo L70H delivers 172 hp.

What engine does the Volvo L70H have?

6 cylinders, 5,701 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →

Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
