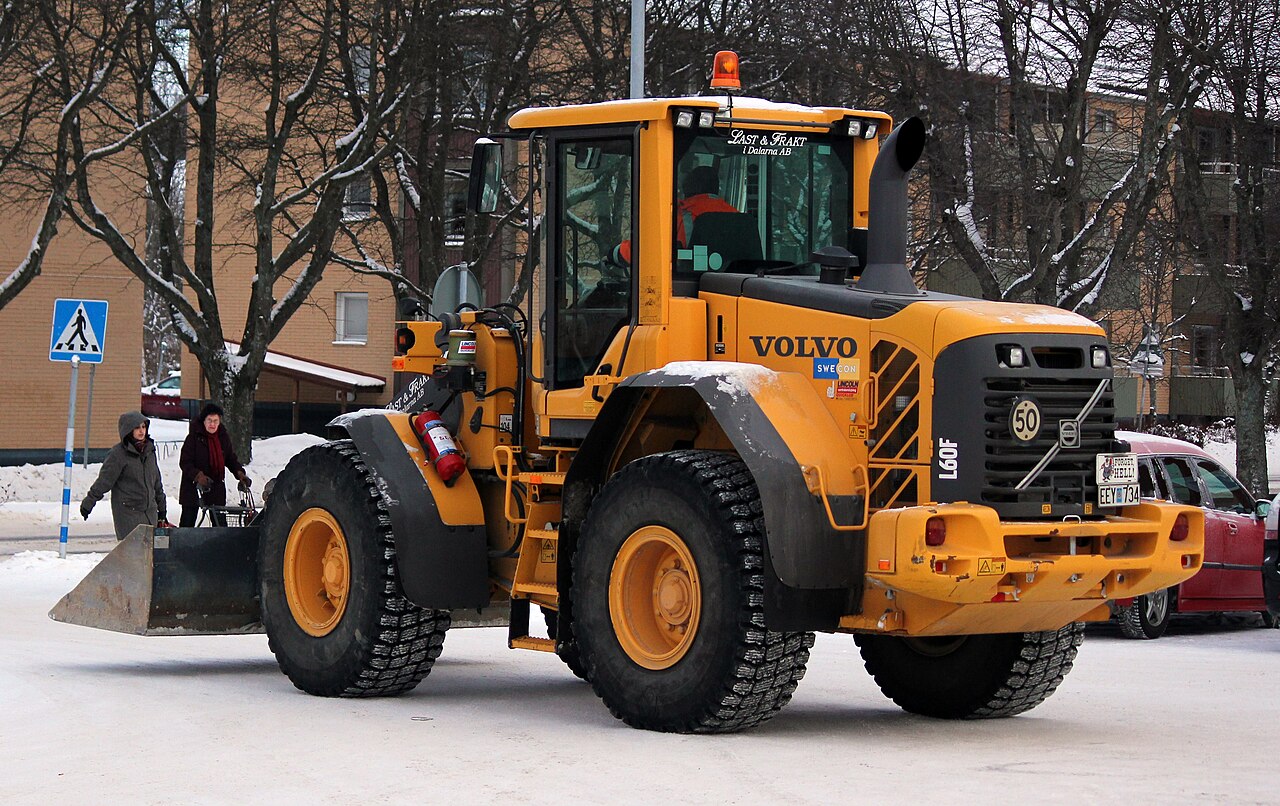

Volvo L60F

Series: Volvo Wheel Loader

Wikimedia Commons · CC BY 3.0 · Calle Eklund/V-wolf · Dateiseite

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo L60F is a model in the Volvo Wheel Loader series. The engine delivers 156.1 hp (114.1 kW), has 6 cylinders, with a displacement of 5,702.7 cm³. Torque is 677.9 Nm. Rated speed is 1,700 rpm. The unladen weight is 11,802.5 kg. The wheelbase measures 3,002.3 mm. Ground clearance is 460.2 mm. The tank holds 224.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 143.8 l/min. The hydraulic tank holds 90.1 litres. The cooling system holds 29.9 litres. The electrical system runs on 24 V. The engine fitted is the D6E LCE3. Tyre size: 20,5 R25 L2. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L60F sits in the lower part of that range with 156.1 hp. Its immediate neighbours are the L70C below it with 131.8 hp and the L90B above it with 158.2 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model	D6E LCE3correct
Power	156.1 hp (114.1 kW)correct
Rated speed	1,700 rpmcorrect
Torque	677.9correct
Speed at max. torque	1,600 rpmcorrect
Cylinders	6correct
Displacement	5,702.7 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	29.9 lcorrect

Dimensions and weights

Wheelbase	3,002.3correct
Ground clearance	460.2correct
Unladen weight	11,802.5 kgcorrect

Drivetrain and chassis

Gearbox type	Volvo HTE 110correct
Forward gears	4correct
Reverse gears	4correct
Tyre size	20.5 R25 L2correct
System voltage	24 Vcorrect

Working data

Pump flow	143.8 l/mincorrect
Hydraulic oil capacity	90.1 lcorrect
Fuel tank capacity	224.1 lcorrect

Other data

Height	3,221.7correct

Where this model stands

Power-to-weight ratio: 9.7 kW/t (114 kW / 11.8 t)

Stronger than 59% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L60F have?

The Volvo L60F delivers 156 hp.

How much does the Volvo L60F weigh?

The unladen weight is 11,802 kg.

What engine does the Volvo L60F have?

6 cylinders, 5,703 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →

Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
