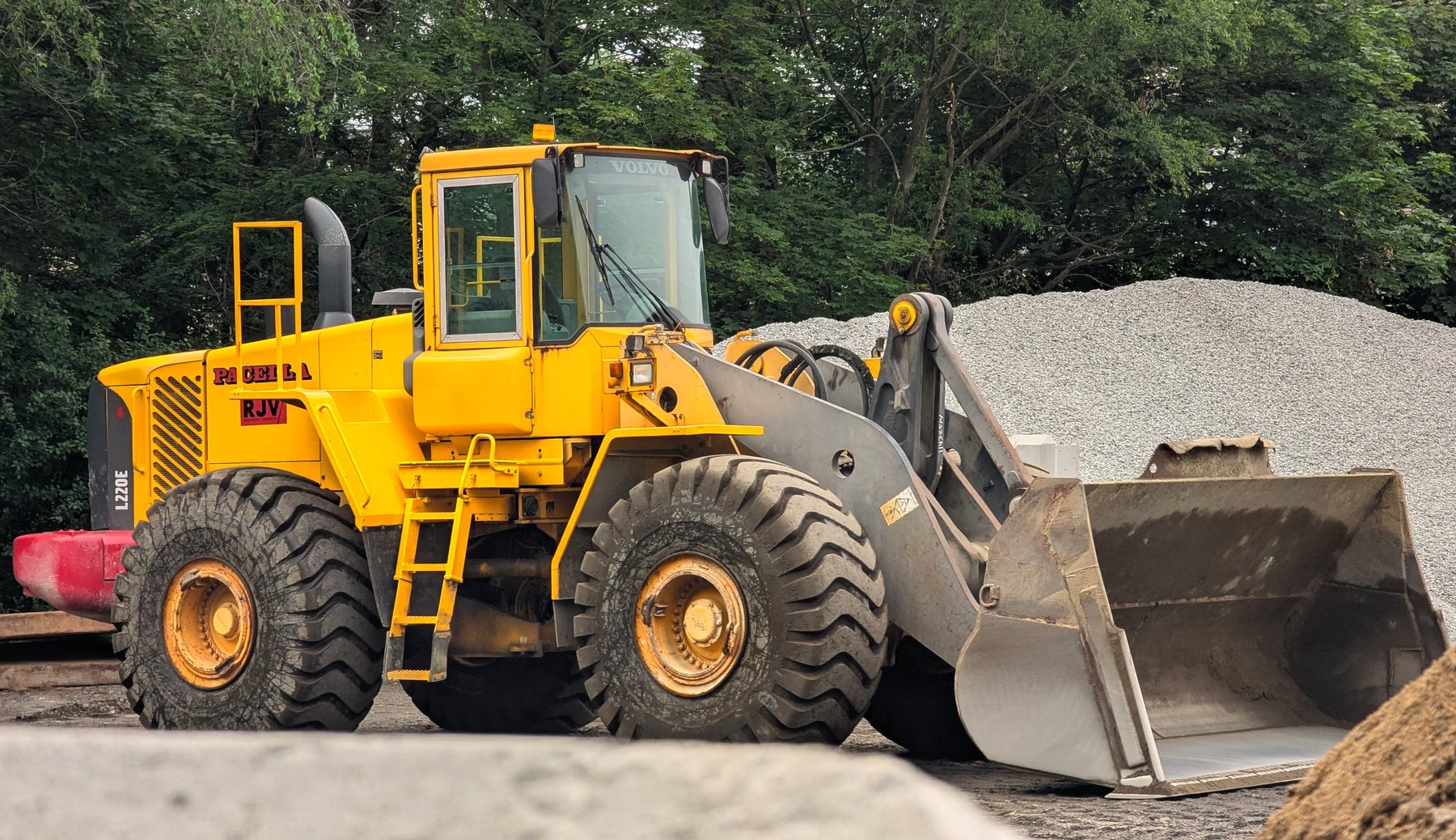

Volvo L220E

Series: Volvo Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=168053101 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the L220E, Volvo offers a model from the Volvo Wheel Loader series. The engine delivers 356.9 hp (261.7 kW), has 6 cylinders, with a displacement of 12,000.2 cm³. Torque is 1,765 Nm. Rated speed is 1,600 rpm. The unladen weight is 31,280 kg. The wheelbase measures 3,700.3 mm. Ground clearance is 512.1 mm. The tank holds 370.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 234.3 l/min. The hydraulic tank holds 243 litres. The cooling system holds 43.2 litres. The electrical system runs on 24 V. The engine fitted is the D12CLBE2. Tyre size: 29,5R25 L3. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L220E sits in the upper part of that range with 356.9 hp. Its immediate neighbours are the L220F below it with 355 hp and the L220G above it with 372.1 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine model	D12CLBE2correct
Power	356.9 hp (261.7 kW)correct
Rated speed	1,600 rpmcorrect
Torque	1,765correct
Speed at max. torque	1,200 rpmcorrect
Cylinders	6correct
Displacement	12,000.2 cm³correct
Coolant capacity	43.2 lcorrect

Dimensions and weights

Wheelbase	3,700.3correct
Ground clearance	512.1correct
Unladen weight	31,280 kgcorrect

Drivetrain and chassis

Gearbox type	Volve HTE 305correct
Forward gears	4correct
Reverse gears	4correct
Tyre size	29.5R25 L3correct
System voltage	24 Vcorrect

Working data

Pump flow	234.3 l/mincorrect
Hydraulic oil capacity	243 lcorrect
Fuel tank capacity	370.2 lcorrect

Other data

Height	3,730.8correct

Where this model stands

Power-to-weight ratio: 8.4 kW/t (262 kW / 31.3 t)

Stronger than 94% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L220E have?

The Volvo L220E delivers 357 hp.

How much does the Volvo L220E weigh?

The unladen weight is 31,280 kg.

What engine does the Volvo L220E have?

6 cylinders, 12,000 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
