Start › Wheel loaders › Volvo › L150G

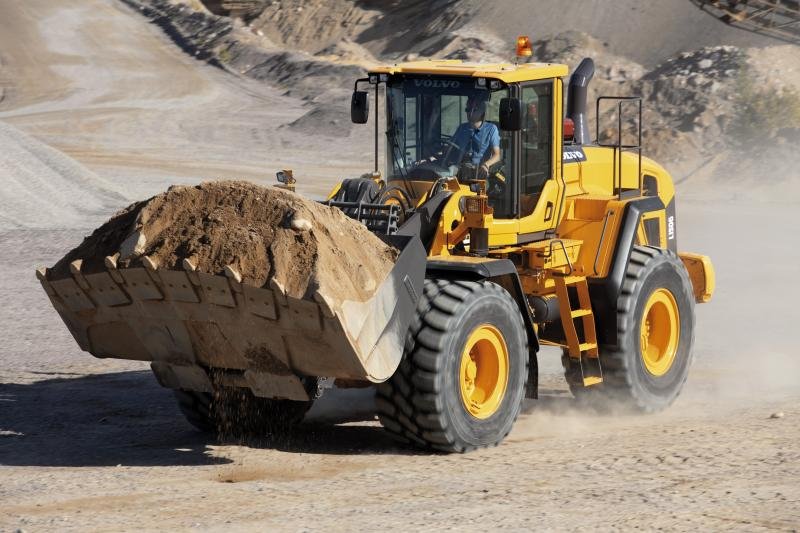

Volvo L150G

Series: Volvo Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Wheel Loader series from Volvo includes the L150G. The engine delivers 299.1 hp (220 kW), has 6 cylinders, with a displacement of 209.8 cm³. Torque is 1,871 Nm. Rated speed is 1,300 rpm. The unladen weight is 23,680 kg. The wheelbase measures 3,550.9 mm. Ground clearance is 472.4 mm. The tank holds 335 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,050 rpm. The pump delivers 202.1 l/min. The hydraulic tank holds 156.3 litres. The cooling system holds 46.2 litres. The electrical system runs on 24 V. The engine fitted is the D13H-E. Tyre size: 26,5 R25 L3. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L150G sits in the middle of that range with 299.1 hp. Its immediate neighbours are the L180 below it with 293 hp and the L150H above it with 299.2 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD13H-Ecorrect
Power299.1 hp (220 kW)correct
Rated speed1,300 rpmcorrect
Torque1,871correct
Speed at max. torque1,050 rpmcorrect
Cylinders6correct
Displacement209.8 cm³correct
Aspirationturbochargedcorrect
Coolant capacity46.2 lcorrect

Dimensions and weights

Wheelbase3,550.9correct
Ground clearance472.4correct
Unladen weight23,680 kgcorrect

Drivetrain and chassis

Gearbox typeVolvo HTL221correct
Forward gears4correct
Reverse gears4correct
Tyre size26.5 R25 L3correct
System voltage24 Vcorrect

Working data

Pump flow202.1 l/mincorrect
Hydraulic oil capacity156.3 lcorrect
Fuel tank capacity335 lcorrect

Other data

Height3,572.3correct

Where this model stands

Power-to-weight ratio: 9.3 kW/t (220 kW / 23.7 t)

Stronger than 89% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L150G have?

The Volvo L150G delivers 299 hp.

How much does the Volvo L150G weigh?

The unladen weight is 23,680 kg.

What engine does the Volvo L150G have?

6 cylinders, 210 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
