Start › Backhoe loaders › Volvo Bm › EL70

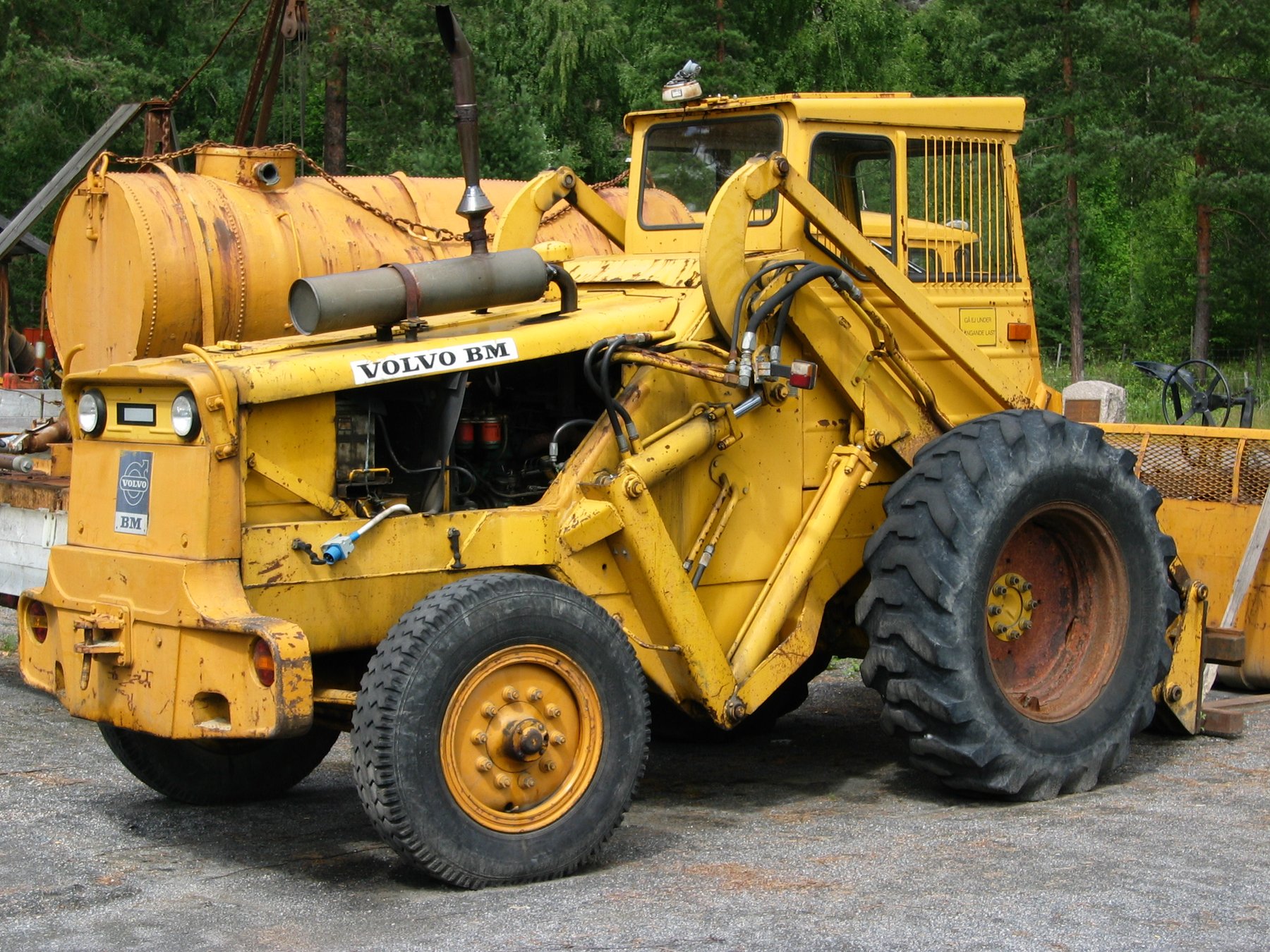

Volvo Bm EL70

Series: Volvo BM Loader Backhoe

Source: https://commons.wikimedia.org/wiki/File:Volvo_Back_Loader_19

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Bm EL70 belongs to the Volvo BM Loader Backhoe series. The engine delivers 114.3 hp (78 kW), has 4 cylinders, with a displacement of 4,473.7 cm³. Rated speed is 2,000 rpm. The wheelbase measures 2,511.6 mm. Ground clearance is 481.6 mm. The tank holds 255.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 170.3 l/min. The hydraulic tank holds 210.1 litres. Working pressure is 225 bar. The cooling system holds 27.3 litres. The electrical system runs on 24 V. The engine fitted is the TD 45B. The Volvo BM Loader Backhoe series covers 5 models. Rated output within it ranges from 80.3 to 122.4 hp; the EL70 sits in the upper part of that range with 114.3 hp. Its immediate neighbours are the 646 below it with 85.7 hp and the EL70C above it with 122.4 hp. 91 Volvo Bm models across 9 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTD 45Bcorrect
Power114.3 hp (78 kW)correct
Rated speed2,000 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,473.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity27.3 lcorrect

Dimensions and weights

Wheelbase2,511.6correct
Ground clearance481.6correct

Drivetrain and chassis

Gearbox typeVolvo BM HT 90 automatic gearbox Power shiftcorrect
Forward gears4correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow170.3 l/mincorrect
Hydraulic oil capacity210.1 lcorrect
Hydraulic pressure225correct
Fuel tank capacity255.1 lcorrect

Frequently asked questions

How much power does the Volvo Bm EL70 have?

The Volvo Bm EL70 delivers 114 hp.

What engine does the Volvo Bm EL70 have?

4 cylinders, 4,474 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

616B

6300

646

EL70C

Sources: [1]
