Volkswagen 35 2.5TDI

Built: 2009-2009 · Series: Crafter

More machines from model year 2009

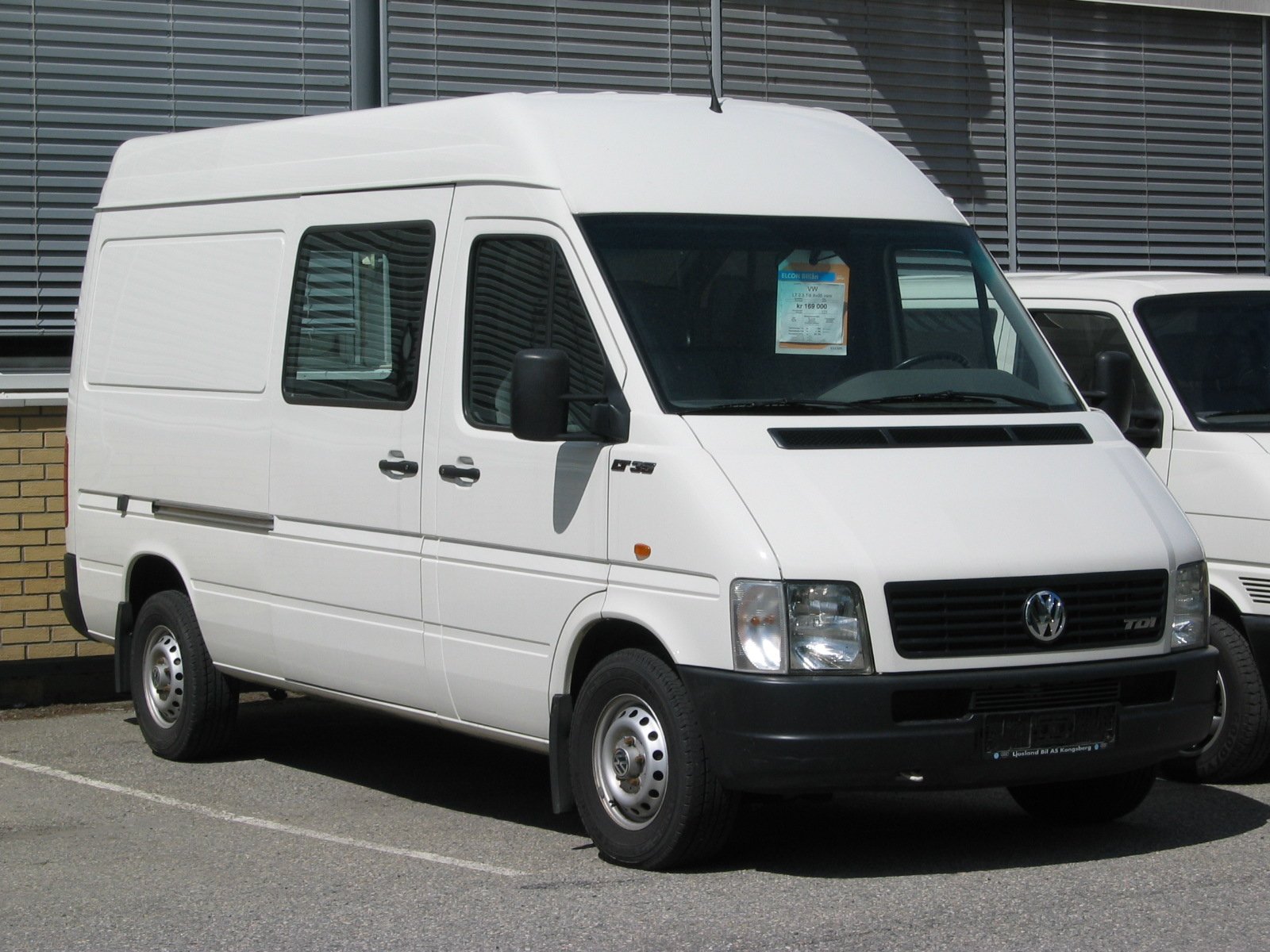

Source: https://commons.wikimedia.org/wiki/File:VW_LT35_2.5Tdi_2002.

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volkswagen 35 2.5TDI is a model in the Crafter series. Production: 2009. The engine has 5 cylinders, with a displacement of 2,461 cm³. The machine is 1,980 mm wide. The unladen weight is 1,929 kg. The wheelbase measures 3,660 mm. The gross vehicle weight is 3,500 kg. The machine runs on 4 wheels. The Crafter series covers 432 models. Unladen weight within it ranges from 1,658 to 3,000 kg; the 35 2.5TDI sits in the lower part of that range with 1,929 kg. Its immediate neighbours are the CRAFTER 30 BESTEL L2 H1 100 KW EU4 below it with 1,916 kg and the 28 BESTEL L2 H1 2.5 TDI 100 KW above it with 1,950 kg. Gross vehicle weight within it ranges from 2,416 to 3,500 kg; here the 35 2.5TDI sits at the top of that range with 3,500 kg. 4967 Volkswagen models across 73 series are on record.

VW Crafter – first a Sprinter twin (2006–2016), then its own design: 2.5 TDI, 2.0 TDI, weight classes 28 to 50

The Crafter replaced the LT in 2006 and in its first generation was a joint product with the Mercedes-Benz Sprinter: the same body from Ludwigsfelde and Düsseldorf, but Volkswagen engines. Until 2011 that meant the 2.5 litre five-cylinder TDI with 65 to 120 kW – recorded many times in the register as '2.5 TDI 65 KW' to '120 KW' – then the 2.0 litre four-cylinder TDI, partly with twin turbocharging. In 2017 the second generation arrived as an independent Volkswagen design from the new plant in Września, Poland, identical to the MAN TGE and for the first time with front-wheel drive, 4Motion all-wheel drive and, from 2018, as the e-Crafter.

Read on 3 more paragraphs

The type numbers 28, 30, 35, 46 and 50 stand for the gross weight in hundreds of kilograms – a Crafter 28 is 2.8 t, a 35 is 3.5 t. Then follow body and length/height (L1 H1 to L3 H3), DC for crew cab, PU for pickup, ASG or AUT for the automated gearbox. In the register the models run from 1,658 to 3,000 kg unladen, 2,416 to 3,500 kg gross and 5,240 to 7,540 mm long, with displacements from 1,968 to 2,461 cm³ and four or five cylinders.

The combination of low loading sill, tall cargo space and the 3.5 t class on a car licence makes the Crafter the typical vehicle of couriers, tradespeople and motorhome converters.

On used five-cylinders, injectors and dual-mass flywheel are the cost items, on first-generation 2.0 TDIs the timing chain and EGR cooler; the second generation is mainly known for electronics and AdBlue issues.

Sources: Kennwerte der Modelle Volkswagen Crafter (Zulassungsdaten), Volkswagen Nutzfahrzeuge (Hersteller), Crafter (Wikipedia)

Technical data

Engine

Cylinders5correct
Displacement2,461 cm³correct

Dimensions and weights

Width1,980 mmcorrect
Wheelbase3,660 mmcorrect
Unladen weight1,929 kgcorrect
Gross vehicle weight3,500 kgcorrect

Drivetrain and chassis

Wheels4correct

Frequently asked questions

How much does the Volkswagen 35 2.5TDI weigh?

The unladen weight is 1,929 kg.

What is the gross vehicle weight of the Volkswagen 35 2.5TDI?

3,500 kg.

What engine does the Volkswagen 35 2.5TDI have?

5 cylinders, 2,461 cm³ displacement.

When was the Volkswagen 35 2.5TDI built?

Production years: 2009.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
