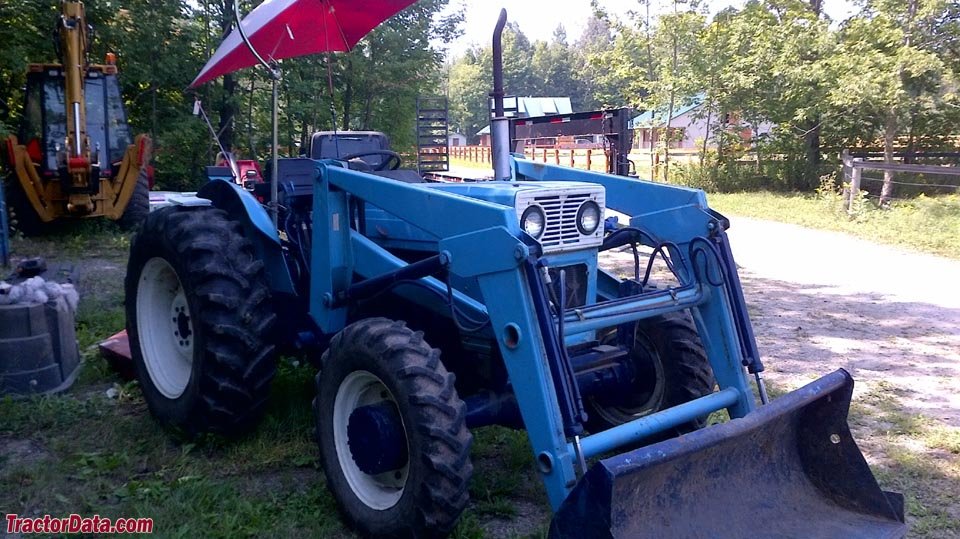

Universal 340
Built: 1987-1991 · Series: Other models
The Universal 340 rolled off the line in 1987-1991 as a tractor. The engine produces 25 kW.
Power is transmitted through a manual gearbox.
It runs on diesel; the engine is water-cooled. As standard, it runs on 6.00-16 tyres at the front and 12.40-28 at the rear. Within the range, rated power spans from 22 to 130 kW; with 25 kW, the 340 sits at the bottom end. Directly alongside are the U.T.B. 300 DT with 22 kW below and the 445 with 31 kW above.
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 34 hp (25 kW)correct |
| Turbocharger | not statedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,070 mmcorrect |
|---|---|
| Height | 1,490 mmcorrect |
| Wheelbase | 1,920 mmcorrect |
| Turning circle | 3,180 mmcorrect |
| Unladen weight | 3,800 lbs (1723,7 kg)correct |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | manual gearboxcorrect |
| Gearbox make | utbcorrect |
| Forward gears | 9correct |
| Reverse gears | 3correct |
| Clutch | 2 stagecorrect |
| Front tyres | 6.00-16correct |
| Rear tyres | 12.40-28correct |
Working data
| Fuel tank capacity | 5 galcorrect |
|---|---|
| PTO speed | 540correct |
| Linkage category | 3 point I/IIcorrect |
Frequently asked questions
How much power does the Universal 340 have?
The Universal 340 delivers 34 hp.
When was the Universal 340 built?
Production years: 1987-1991.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
