TYM T1003
Built: 2013-2013 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

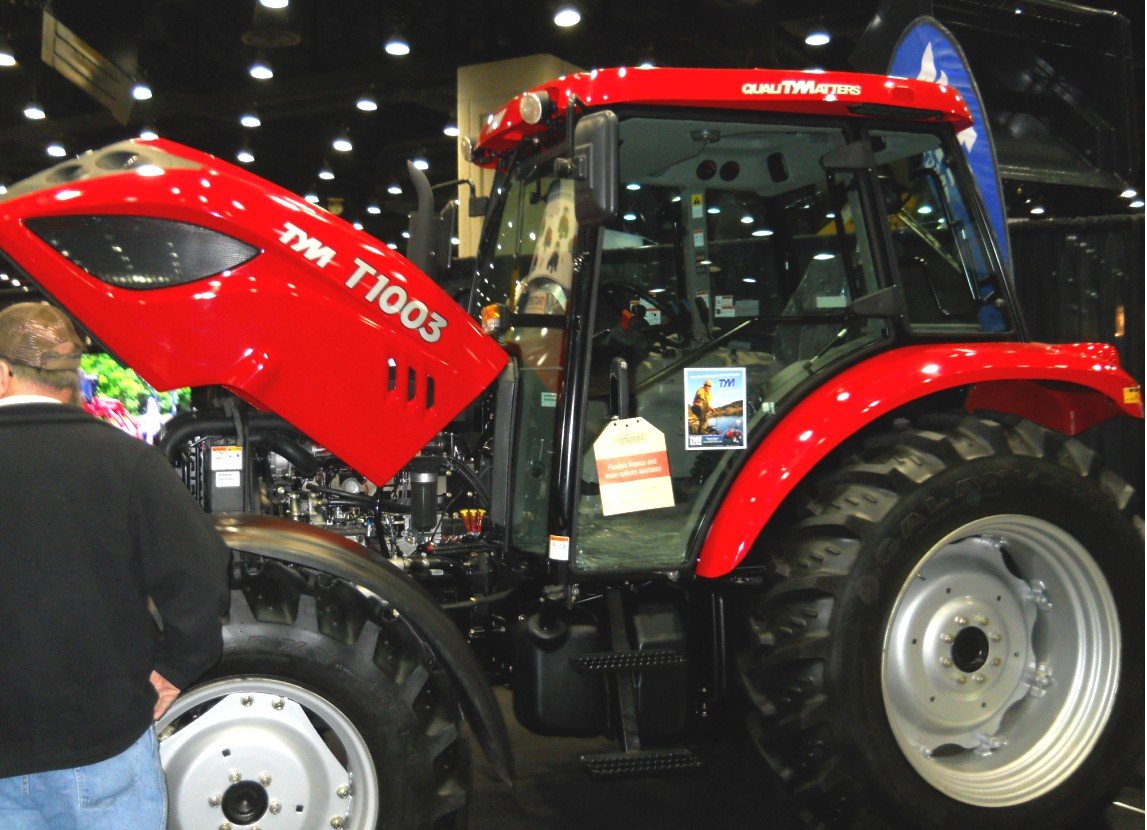

Built in 2013, the TYM T1003 is a tractor from TYM. The four-cylinder engine, displacing 4.4 litres, produces 75 kW. Rated speed is 2,200 rpm.
Gearbox: Power Shuttle and Power Shift; drive type: MFWD. It measures 4.10 m in length and 2.11 m in width. Unladen weight is 3,680 kg.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 17 to 97 kW; with 75 kW, the T1003 sits at the top. Directly alongside are the Tong Yang Case IH JX95 with 73 kW below and the Tong Yang Case IH MX110 with 82 kW above.
Technical data
Engine
| Engine make | Perkinscorrect |
|---|---|
| Engine model | 1104D-44TAcorrect |
| Fuel | dieselcorrect |
| Power | 99 hp (75 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,400 cm³ (4,400 ci)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,100 mmcorrect |
|---|---|
| Width | 2,110 mmcorrect |
| Unladen weight | 3,680 kgcorrect |
| Gross vehicle weight | 6,000 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | Power Shuttle, Power Shiftcorrect |
| Forward gears | 32correct |
| Reverse gears | 32correct |
| Clutch | Wet Multi platecorrect |
Origin and approval
| Plant | South Koreacorrect |
|---|
Where this model stands
Power-to-weight ratio: 20.4 kW/t (75 kW / 3.7 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the TYM T1003 have?
The TYM T1003 delivers 99 hp.
How much does the TYM T1003 weigh?
The unladen weight is 3,680 kg.
What is the gross vehicle weight of the TYM T1003?
6,000 kg.
What engine does the TYM T1003 have?
4 cylinders, 4,400 cm³ displacement, Diesel.
What are the dimensions of the TYM T1003?
4,100 mm × 2,110 mm.
When was the TYM T1003 built?
Production years: 2013.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
