Trojan MD1A180M-2

Series: Other models

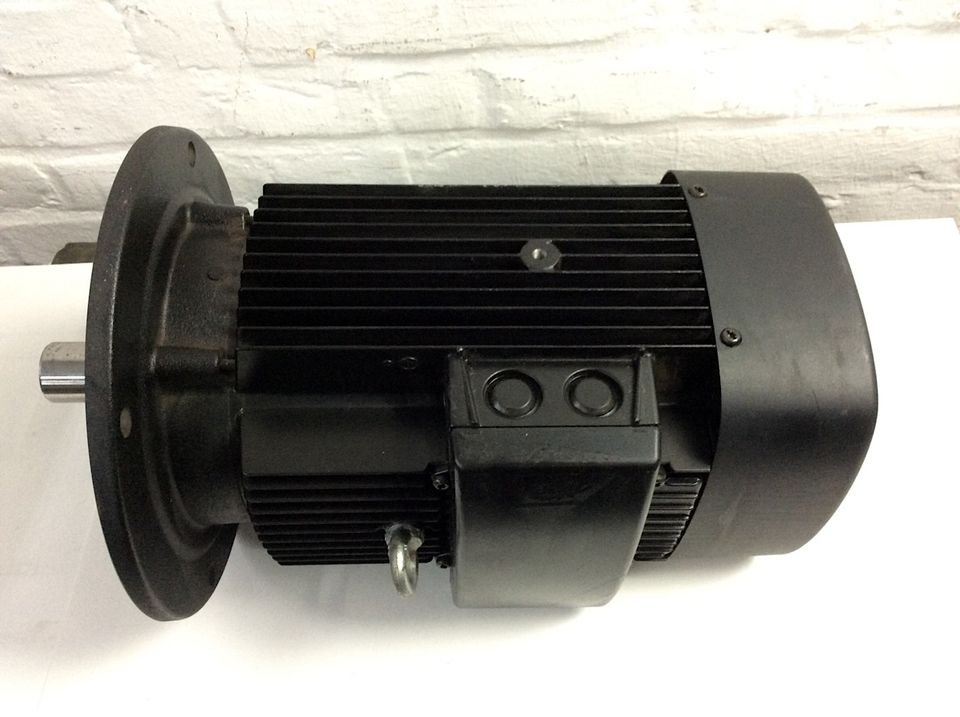

The photo shows the 7.5C132SB-2 from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/grundfos-3ph-motor-mg

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The MD1A180M-2 from Trojan is a three-phase induction motor. The rated output is 22 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The rated voltage is 415 V. The housing is frame size 180 M in foot-mounted form. The protection class is IP55. The efficiency is 90 per cent at full load, 89.9 per cent at 75 per cent load and 87.3 per cent at half load. The motor weighs 155 kg. At full load it delivers 71 Nm. Mounting arrangements to IEC 60034-7: B3 and B5. The motor is built in China. The values are recorded in the Australian MEPS registration under standard AS/NZS 1359.5:2000 (Legacy); measured to AS/NZS 1359.102.3:2000. Rated output across the Trojan range ranges from 0.75 to 200 kW; the MD1A180M-2 sits at the bottom of that range with 22 kW. Its immediate neighbours are the MD1C225S-8 below it with 18.5 kW and the 30C200LA-2 above it with 30 kW. 286 Trojan models are on record. The model is listed under Electric motors. 24 verified figures from 1 source are on file.

Technical data

Engine

Rated output22 kWcorrect

Dimensions and weights

Weight155 kgcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles2correct
Protection classIP55correct
Frame size180 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B5/B3correct
Efficiency at full load90 %correct
Efficiency at 75 % load89.9 %correct
Efficiency at half load87.3 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedAS/NZS 1359.5:2000 (Legacy)correct
Test methodAS/NZS 1359.102.3:2000correct

Frequently asked questions

How much power does the Trojan MD1A180M-2 have?

The Trojan MD1A180M-2 delivers 22 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
