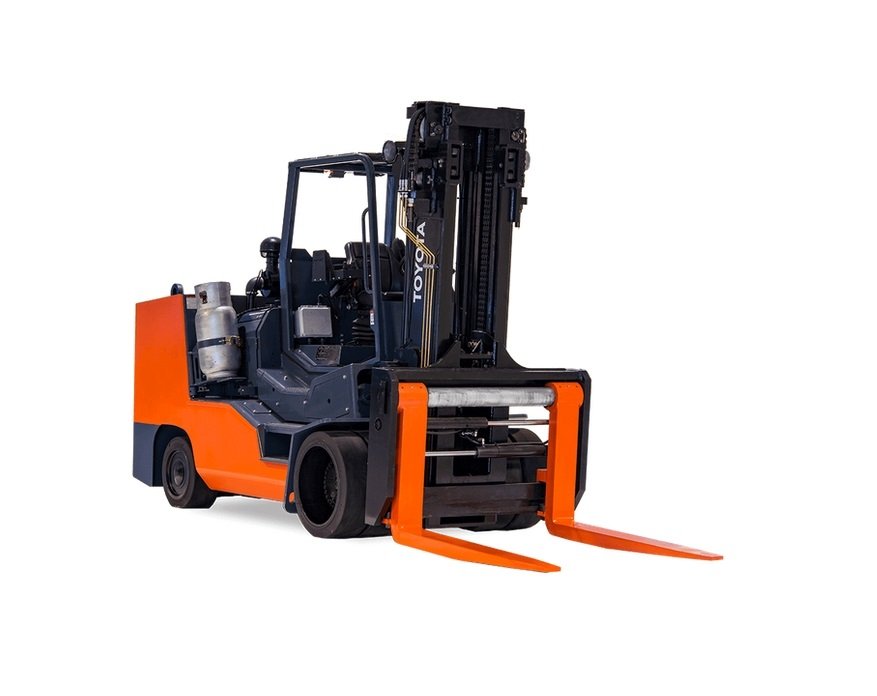

Toyota THDC3500-24

Series: Toyota Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/diesel-fork

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Toyota THDC3500-24 is a model in the Toyota Forklift series. The engine has 8 cylinders. The engine comes from TOYOTA. Rated speed is 2,500 rpm. The unladen weight is 18,643 kg. The wheelbase measures 2,286 mm. Top speed is 15.6 km/h. Maximum torque is reached at 1,600 rpm. Working pressure is 172.4 bar. The engine fitted is the PSI V6 4,3L. The Toyota Forklift series covers 82 models. Unladen weight within it ranges from 1,111.3 to 37,653 kg; the THDC3500-24 sits in the middle of that range with 18,643 kg. Its immediate neighbours are the THDC3000-36 below it with 18,144 kg and the THDC4000-30 above it with 23,405 kg. 2440 Toyota models across 33 series are on record. The model is listed under Forklift trucks. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine makeTOYOTAcorrect
Engine modelPSI V6 4.3Lcorrect
Rated speed2,500 rpmcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders8correct

Dimensions and weights

Width1,679.4correct
Wheelbase2,286correct
Unladen weight18,643 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Tyre typecushion tyrescorrect
Top speed15.6 km/hcorrect
Turning radius3,650 mmcorrect

Working data

Lifting capacity15,876 kgcorrect
Lift height2,630 mmcorrect
Hydraulic pressure172.4 barcorrect

Other data

Load centre610.1 mmcorrect
Mast tilt back8°correct
Mast tilt forward8°correct
Payload15,876 kgcorrect
Payload (as stated)35, 000 lbscorrect

More machines with this engine (TOYOTA PSI V6 4.3L, 8)

Frequently asked questions

How much does the Toyota THDC3500-24 weigh?

The unladen weight is 18,643 kg.

What engine does the Toyota THDC3500-24 have?

8 cylinders.

How fast does the Toyota THDC3500-24 go?

Top speed is 15.6 km/h.

What is the load capacity of the Toyota THDC3500-24?

Load capacity is 15,876 kg at a 610 mm load centre, lift height 2,630 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
