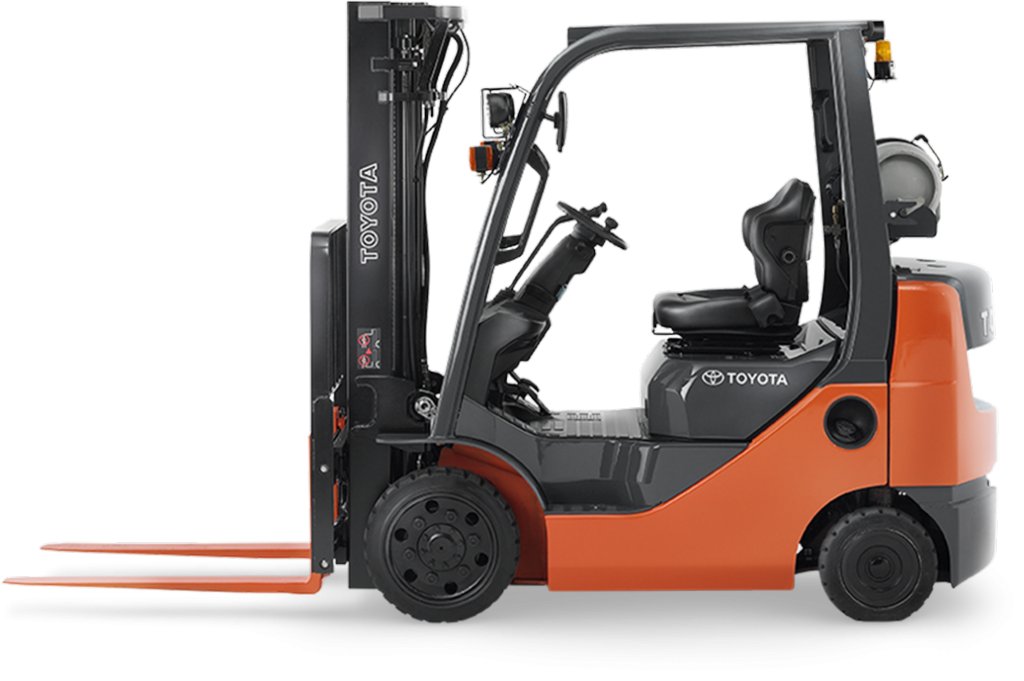

Toyota 8FGCU32

Series: Toyota Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/lpg-forklif

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Toyota 8FGCU32 is a model in the Toyota Forklift series. The engine has 4 cylinders, with a displacement of 2,228.6 cm³. The engine comes from TOYOTA. Rated speed is 2,570 rpm. The unladen weight is 4,410 kg. The wheelbase measures 1,487.4 mm. Top speed is 17.1 km/h. The tank holds 45 litres. Maximum torque is reached at 2,100 rpm. The hydraulic tank holds 75.7 litres. Working pressure is 156.9 bar. The engine fitted is the 4Y - ECS. The Toyota Forklift series covers 82 models. Unladen weight within it ranges from 1,111.3 to 37,653 kg; the 8FGCU32 sits at the bottom of that range with 4,410 kg. Its immediate neighbours are the 8FDU32 below it with 4,390 kg and the 8FG35U above it with 5,700 kg. 2440 Toyota models across 33 series are on record. The model is listed under Forklift trucks. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine makeTOYOTAcorrect
Engine model4Y - ECScorrect
Rated speed2,570 rpmcorrect
Speed at max. torque2,100 rpmcorrect
Cylinders4correct
Displacement2,228.6 cm³correct

Dimensions and weights

Width1,112.5correct
Wheelbase1,487.4correct
Unladen weight4,410 kgcorrect

Drivetrain and chassis

Tyre typecushion tyrescorrect
Top speed17.1 km/hcorrect

Working data

Hydraulic oil capacity75.7 lcorrect
Hydraulic pressure156.9 barcorrect
Fuel tank capacity45 lcorrect

Frequently asked questions

How much does the Toyota 8FGCU32 weigh?

The unladen weight is 4,410 kg.

What engine does the Toyota 8FGCU32 have?

4 cylinders, 2,229 cm³ displacement.

How fast does the Toyota 8FGCU32 go?

Top speed is 17.1 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
