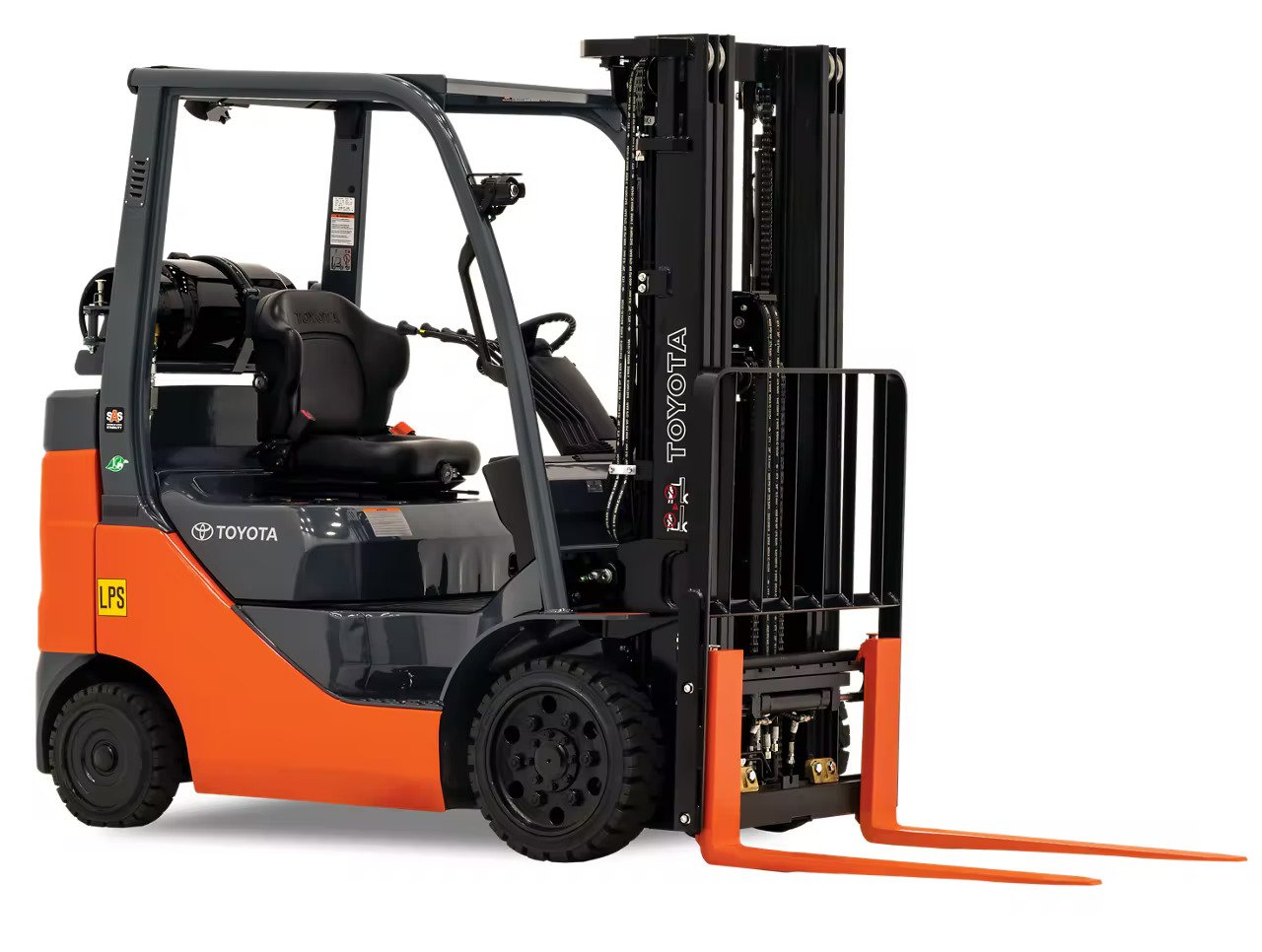

Toyota 8FGC70U

Series: Toyota Forklift

Source: https://www.lectura-specs.fr/fr/modele/chariots-elevateurs-a

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Toyota 8FGC70U belongs to the Toyota Forklift series. The engine has 4 cylinders, with a displacement of 3,670.7 cm³. The engine comes from TOYOTA. Rated speed is 2,550 rpm. The unladen weight is 9,290 kg. The wheelbase measures 1,886.7 mm. Top speed is 20.9 km/h. Maximum torque is reached at 1,400 rpm. Working pressure is 206.2 bar. The engine fitted is the 1FS. The Toyota Forklift series covers 82 models. Unladen weight within it ranges from 1,111.3 to 37,653 kg; the 8FGC70U sits in the lower part of that range with 9,290 kg. Its immediate neighbours are the 8FD70U below it with 9,090 kg and the 7FBCU35 above it with 10,450 kg. 2440 Toyota models across 33 series are on record. The model is listed under Forklift trucks. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine makeTOYOTAcorrect
Engine model1FScorrect
Rated speed2,550 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,670.7 cm³correct

Dimensions and weights

Width1,450.8correct
Wheelbase1,886.7correct
Unladen weight9,290 kgcorrect

Drivetrain and chassis

Gearbox typePower shiftcorrect
Tyre typecushion tyrescorrect
Top speed20.9 km/hcorrect
Turning radius2,590 mmcorrect

Working data

Lifting capacity7,000 kgcorrect
Lift height3,070 mmcorrect
Hydraulic pressure206.2 barcorrect

Other data

Load centre610.1 mmcorrect
Mast tilt back6°correct
Mast tilt forward5°correct

More machines with this engine (TOYOTA 1FS, 12)

Frequently asked questions

How much does the Toyota 8FGC70U weigh?

The unladen weight is 9,290 kg.

What engine does the Toyota 8FGC70U have?

4 cylinders, 3,671 cm³ displacement.

How fast does the Toyota 8FGC70U go?

Top speed is 20.9 km/h.

What is the load capacity of the Toyota 8FGC70U?

Load capacity is 7,000 kg at a 610 mm load centre, lift height 3,070 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
