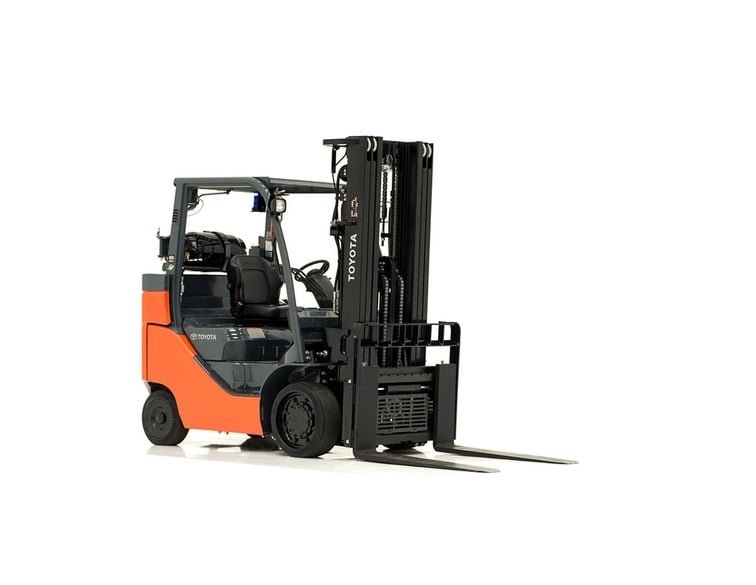

Toyota 8FGC45U-BCS

Series: Toyota Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/lpg-forklif

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Toyota 8FGC45U-BCS belongs to the Toyota Forklift series. The engine has 4 cylinders, with a displacement of 3,670.7 cm³. The engine comes from TOYOTA. Rated speed is 2,350 rpm. The unladen weight is 6,760 kg. The wheelbase measures 1,572.8 mm. Top speed is 20.9 km/h. Maximum torque is reached at 1,400 rpm. Working pressure is 181.3 bar. The engine fitted is the 1FS. The Toyota Forklift series covers 82 models. Unladen weight within it ranges from 1,111.3 to 37,653 kg; the 8FGC45U-BCS sits in the lower part of that range with 6,760 kg. Its immediate neighbours are the 8FD45U below it with 6,690 kg and the 7FBCU55 above it with 6,808.4 kg. 2440 Toyota models across 33 series are on record. The model is listed under Forklift trucks. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine makeTOYOTAcorrect
Engine model1FScorrect
Rated speed2,350 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,670.7 cm³correct

Dimensions and weights

Width1,420.4correct
Wheelbase1,572.8correct
Unladen weight6,760 kgcorrect

Drivetrain and chassis

Gearbox typeautomatic gearboxcorrect
Tyre typecushion tyrescorrect
Top speed20.9 km/hcorrect
Turning radius2,230 mmcorrect

Working data

Lifting capacity4,500 kgcorrect
Lift height3,050 mmcorrect
Hydraulic pressure181.3 barcorrect

Other data

Load centre600.2 mmcorrect
Mast tilt back6°correct
Mast tilt forward5°correct

More machines with this engine (TOYOTA 1FS, 12)

Frequently asked questions

How much does the Toyota 8FGC45U-BCS weigh?

The unladen weight is 6,760 kg.

What engine does the Toyota 8FGC45U-BCS have?

4 cylinders, 3,671 cm³ displacement.

How fast does the Toyota 8FGC45U-BCS go?

Top speed is 20.9 km/h.

What is the load capacity of the Toyota 8FGC45U-BCS?

Load capacity is 4,500 kg at a 600 mm load centre, lift height 3,050 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
