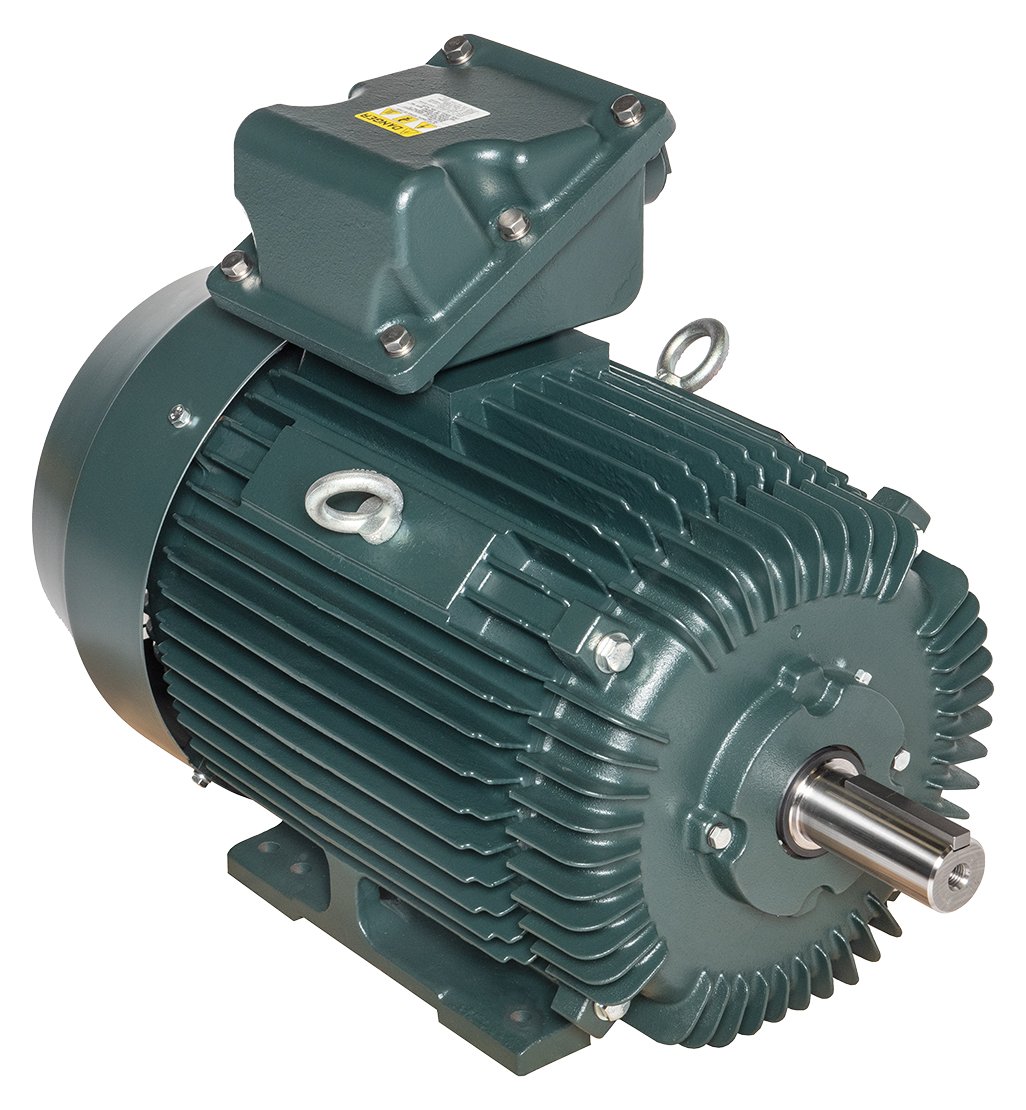

Toshiba IKH FBKW

Series: Other models

Source: https://toshiba.com/tic/product/eqp-global-iec/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The IKH FBKW from Toshiba is a three-phase induction motor. The rated output is 0.73 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 90 S in foot-mounted form. The protection class is IP54. The efficiency is 78.7 per cent at full load, 78.4 per cent at 75 per cent load and 75.2 per cent at half load. The motor is built in Taiwan. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to AS 1359.102.1:1997. Rated output across the Toshiba range ranges from 0.73 to 160 kW; the IKH FBKW sits at the bottom of that range with 0.73 kW. Its immediate neighbours are the CD100L1-8 above it with 0.75 kW. 105 Toshiba models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output0.73 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles6correct
Protection classIP54correct
Frame size90 S (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B14, B34, B35, V1, V3, V5, V6, V15, V18, V19, V36correct
Efficiency at full load78.7 %correct
Efficiency at 75 % load78.4 %correct
Efficiency at half load75.2 %correct

Origin and approval

Country of manufactureTaiwancorrect
Standard appliedAS/NZS 1359.5:2004correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Toshiba IKH FBKW have?

The Toshiba IKH FBKW delivers 0.7 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
