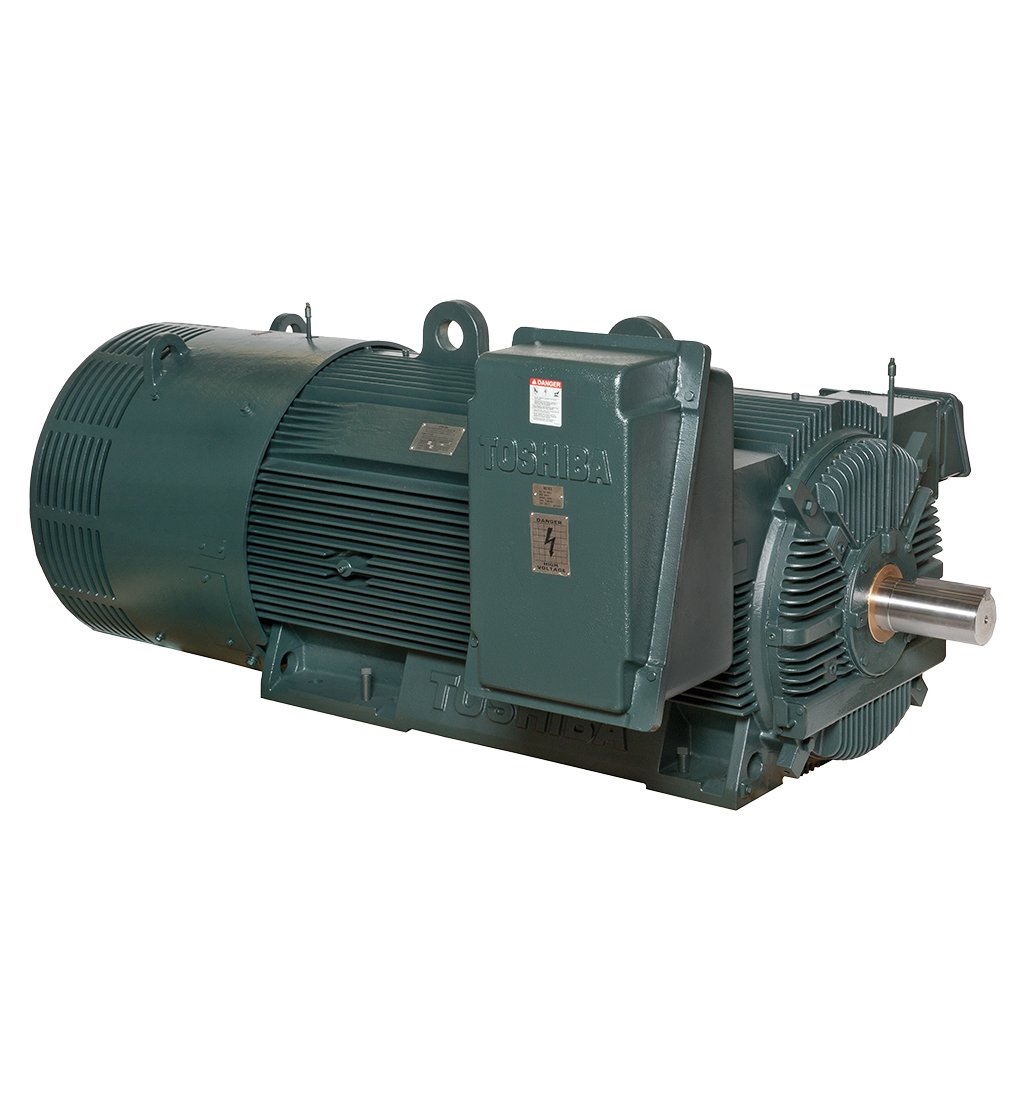

Toshiba NEMAC150HP

Series: Other models

Source: https://toshiba.com/tic/product/tefc-840/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Toshiba International NEMAC150HP is a three-phase induction motor from the Toshiba International range. The rated output is 110 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 280 M in foot-mounted form. The efficiency is 95.8 per cent at full load, 95.8 per cent at 75 per cent load and 95.4 per cent at half load. Stated countries of manufacture: the USA, China and Taiwan. The data is based on the Australian MEPS registration under the GEMS Determination 2019; measured to IEEE 112-B(USA). Rated output across the Toshiba International range ranges from 0.75 to 180 kW; the NEMAC150HP sits in the upper part of that range with 110 kW. Its immediate neighbours are the SWE 315M-6 below it with 90 kW and the *2Y*-A1320 above it with 132 kW. 955 Toshiba International models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output110 kWcorrect

Electrical data

Number of poles6correct
Protection classIP00, IP01, IP02, IP10, IP11, IP12, IP13, IP14, IP15, IP20, IP21, IP22, IP23, IP24, IP25, IP30, IP31, IP32, IP33, IP34, IP35, IP40, IP41, IP42, IP43, IP44, IP45, IP46, IP47, IP48, IP50, IP51, IP52, IP53, IP54, IP55, IP56, IP57, IP58, IP65, IP66correct
Frame size280 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B6, B7, B8, B9, B10, B14, B15, B20, B25, B30, B34, B35, V1, V2, V3, V4, V5, V6, V8, V9, V10, V14, V15, V16, V18, V19, V30, V31, V36correct
Efficiency at full load95.79 %correct
Efficiency at 75 % load95.83 %correct
Efficiency at half load95.38 %correct

Origin and approval

Country of manufactureUnited States of America, China, Taiwancorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the Toshiba NEMAC150HP have?

The Toshiba NEMAC150HP delivers 110 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
