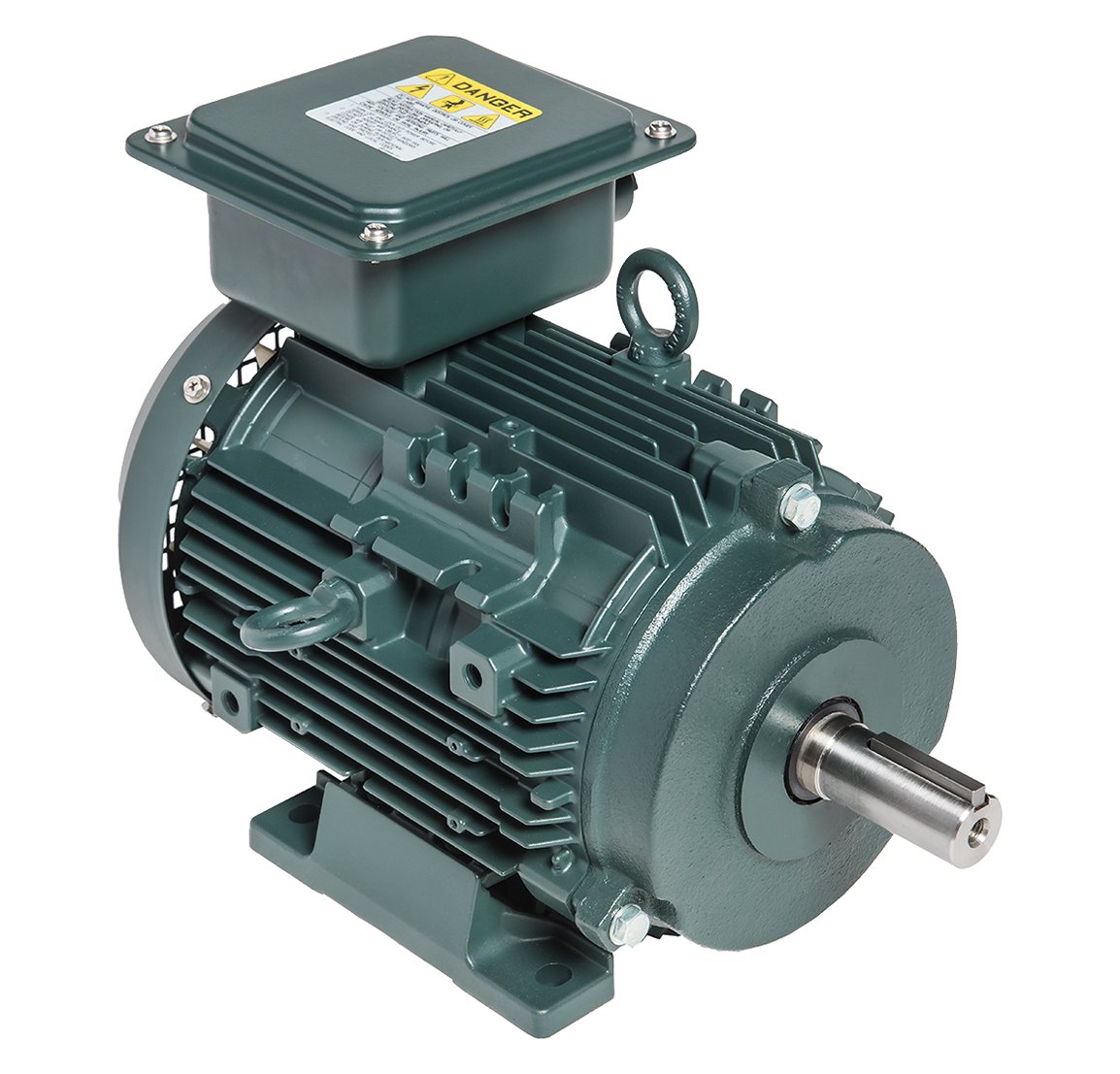

Toshiba CD 180M-4Y

Series: CD

Source: https://toshiba.com/tic/product/eqp-global-iec/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Toshiba International lists the CD 180M-4Y as a three-phase induction motor. The rated output is 18.5 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 180 M in foot-mounted form. The protection class is IP56. The efficiency is 92.3 per cent at full load, 92.2 per cent at 75 per cent load and 90.1 per cent at half load. Stated countries of manufacture: Germany and Australia. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to AS 1359.102.1:1997. Rated output across the Toshiba International range ranges from 0.75 to 180 kW; the CD 180M-4Y sits at the bottom of that range with 18.5 kW. Its immediate neighbours are the WE180L-6 below it with 15 kW and the *2Y3-A0220 above it with 22 kW. 955 Toshiba International models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output18.5 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP56correct
Frame size180 M (foot)correct
Mounting (IEC 60034-7)All Mountscorrect
Efficiency at full load92.3 %correct
Efficiency at 75 % load92.2 %correct
Efficiency at half load90.1 %correct

Origin and approval

Country of manufactureGermany, Australiacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Toshiba CD 180M-4Y have?

The Toshiba CD 180M-4Y delivers 18.5 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
