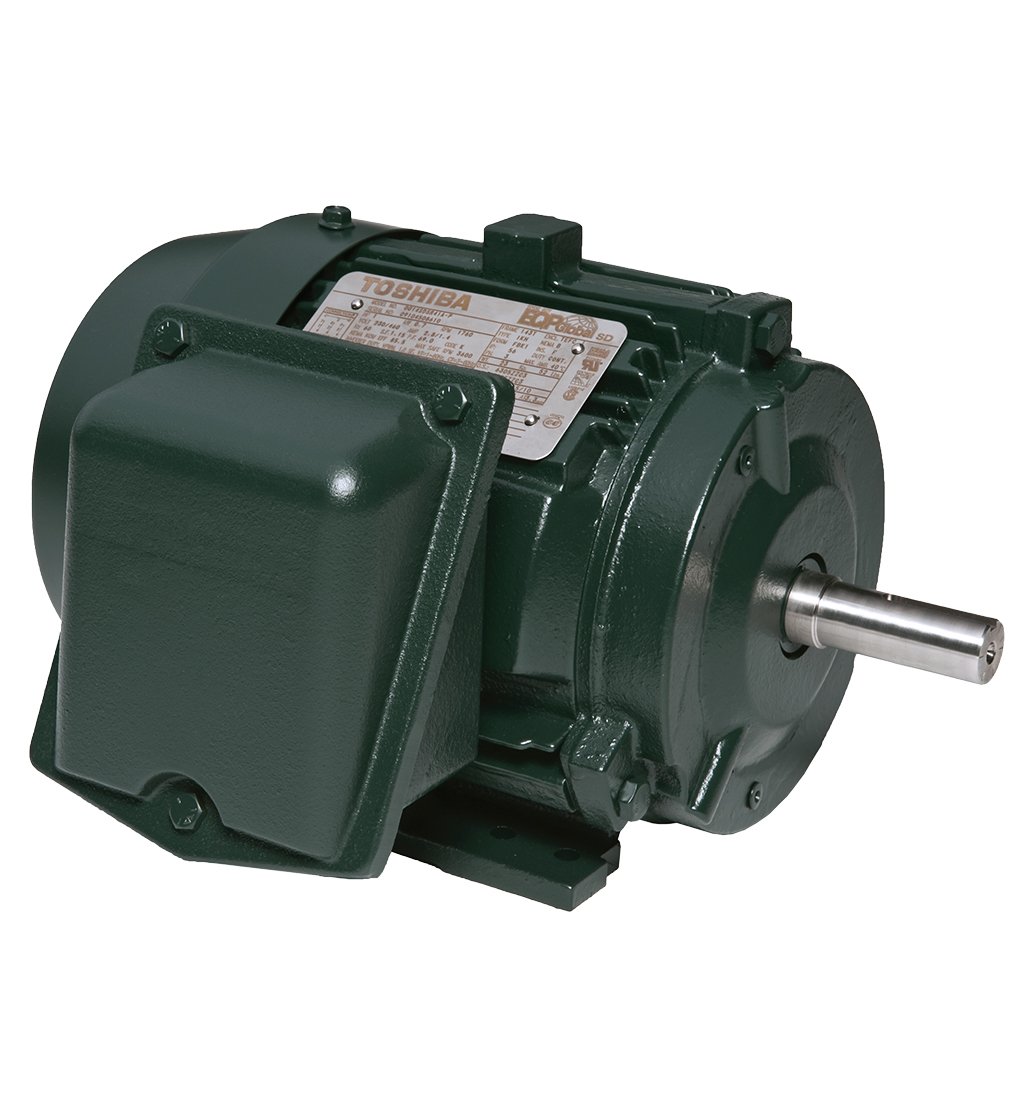

Toshiba 818-C0300 DIP

Series: Other models

Source: https://toshiba.com/tic/product/eqp-global-quarry-duty/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 818-C0300 DIP from Toshiba International is a three-phase induction motor. The rated output is 30 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 415 V. The housing is frame size 225 M in foot-mounted form. The protection class is IP56. The efficiency is 94.3 per cent at full load, 94.7 per cent at 75 per cent load and 94.6 per cent at half load. Stated countries of manufacture: Australia, China and Taiwan. The data is based on the Australian MEPS registration under the GEMS Determination 2012; measured to AS 1359.102.1:1997. Rated output across the Toshiba International range ranges from 0.75 to 180 kW; the 818-C0300 DIP sits in the lower part of that range with 30 kW. Its immediate neighbours are the ZWE 160L-2 below it with 22 kW and the *2Y3-A0370 above it with 37 kW. 955 Toshiba International models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

Technical data

Engine

Rated output30 kWcorrect

Electrical data

Rated voltage415 Vcorrect
Number of poles6correct
Protection classIP56correct
Frame size225 M (foot)correct
Mounting (IEC 60034-7)All mountscorrect
Efficiency at full load94.3 %correct
Efficiency at 75 % load94.7 %correct
Efficiency at half load94.6 %correct

Origin and approval

Country of manufactureAustralia, China, Taiwancorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodAS 1359.102.1:1997correct

Frequently asked questions

How much power does the Toshiba 818-C0300 DIP have?

The Toshiba 818-C0300 DIP delivers 30 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
