Teco OSP18

Series: Other models

Source: https://electricmotors.teco.com.au/energy/18-5-kw/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

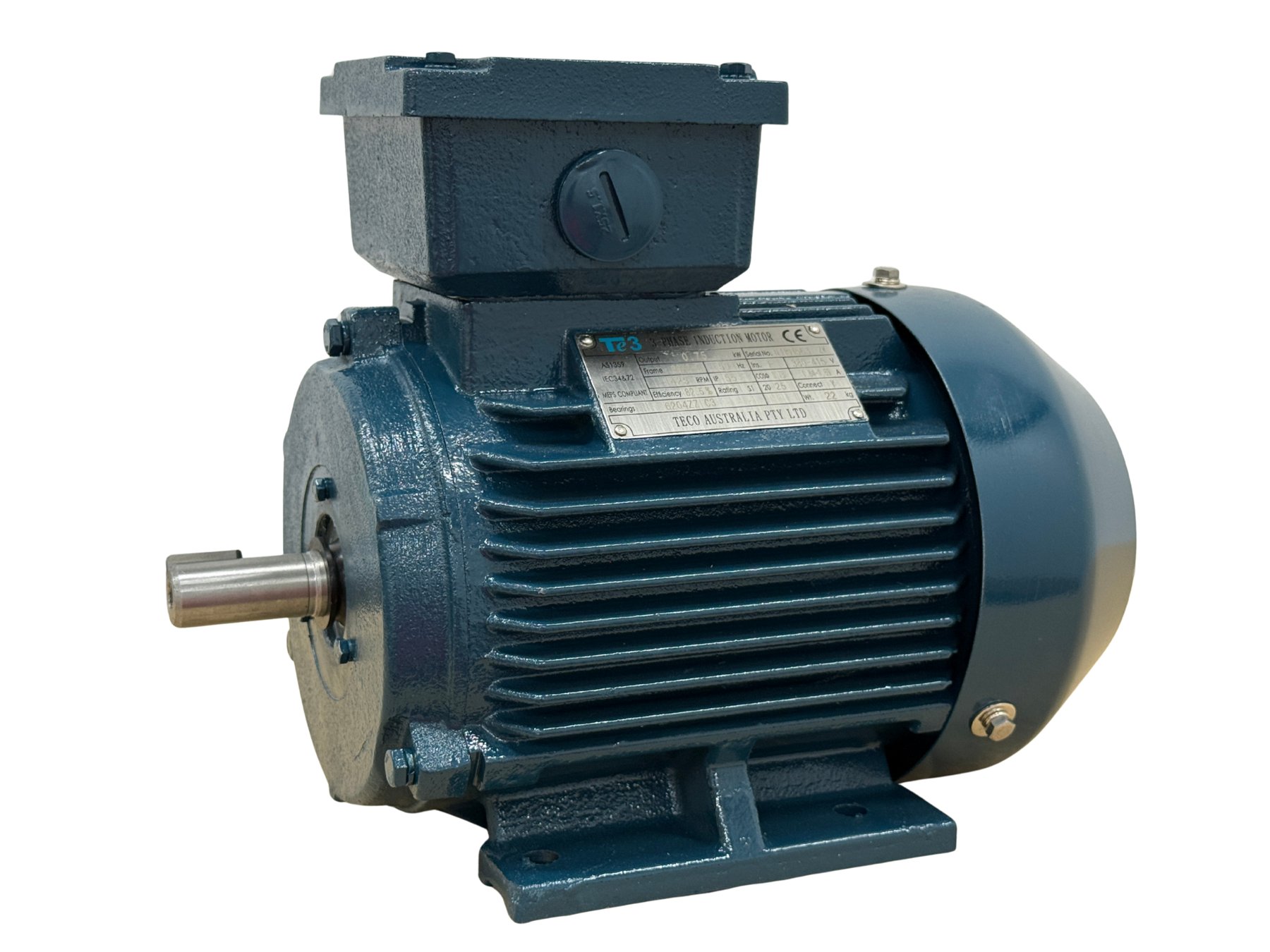

The Teco OSP18 is a three-phase induction motor. The rated output is 18 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 180 L in foot-mounted form. The protection class is IP55. The efficiency is 92 per cent at full load, 92.2 per cent at 75 per cent load and 91.5 per cent at half load. The motor weighs 207 kg. The mounting arrangement to IEC 60034-7 is B3. The motor is built in Malaysia. The data is based on the Australian MEPS registration under standard AS/NZS 1359.5:2004; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Teco range ranges from 18 to 30 kW; the OSP18 sits at the bottom of that range with 18 kW. Its immediate neighbours are the AEHH8P above it with 22 kW. 3 Teco models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output	18 kWcorrect

Dimensions and weights

Weight	207 kgcorrect

Electrical data

Number of poles	4correct
Protection class	IP55correct
Frame size	180 L (foot)correct
Mounting (IEC 60034-7)	B3correct
Efficiency at full load	92 %correct
Efficiency at 75 % load	92.2 %correct
Efficiency at half load	91.5 %correct

Origin and approval

Country of manufacture	Malaysiacorrect
Standard applied	AS/NZS 1359.5:2004correct
Test method	IEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Teco OSP18 have?

The Teco OSP18 delivers 18 kW.

What to check before buying

Match the data plate against the order: frame size, mounting and rating have to agree.
Check the ingress rating against the installation site — outdoors or in dust the demands differ.
Hold the mounting form and dimensions against the existing seat before ordering.
The pole count sets the speed — when replacing an older unit, compare this first.
For used units, ask about winding condition and bearing play.
Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
