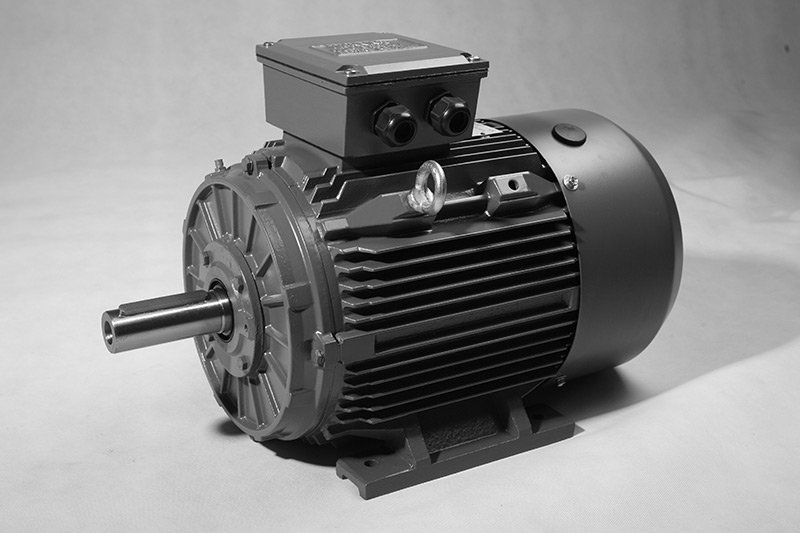

Techtop TCI 280M-6

Series: TCI

Source: https://techtop.com.au/products/tci-280/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

Techtop lists the TCI 280M-6 as a three-phase induction motor. The rated output is 55 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 280 M in foot-mounted form. The protection class is IP55. The efficiency is 93.5 per cent at full load, 93.6 per cent at 75 per cent load and 92.7 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B35 and V1. The motor is built in China. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Techtop range ranges from 0.75 to 160 kW; the TCI 280M-6 sits in the lower part of that range with 55 kW. Its immediate neighbours are the TCP 280S-6 below it with 45 kW and the TCI 250M2-2 above it with 75 kW. 204 Techtop models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output55 kWcorrect

Electrical data

Number of poles6correct
Protection classIP55correct
Frame size280 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B35, V1correct
Efficiency at full load93.5 %correct
Efficiency at 75 % load93.6 %correct
Efficiency at half load92.7 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Techtop TCI 280M-6 have?

The Techtop TCI 280M-6 delivers 55 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
