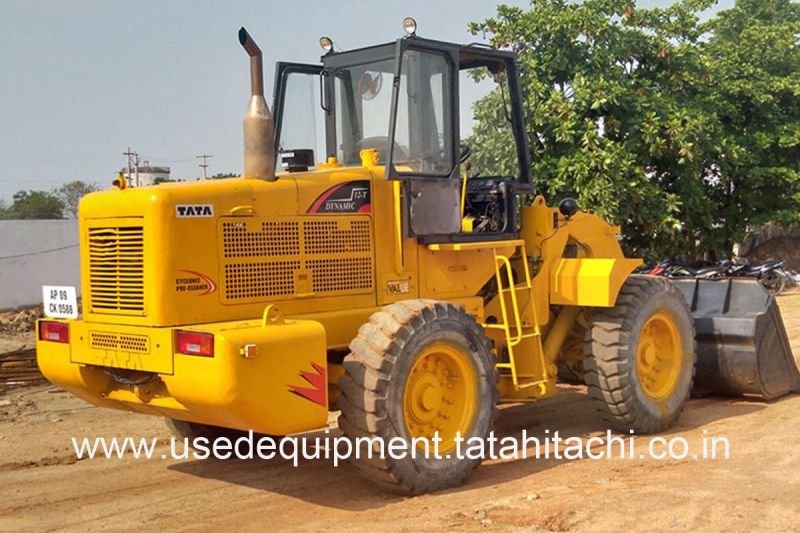

Tata Hitachi TWL3036

Series: Tata Hitachi Wheel Loader

Source: https://usedequipment.tatahitachi.co.in/wheel-loaders/twl303

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Tata Hitachi Wheel Loader series from Tata Hitachi includes the TWL3036. The engine delivers 126.7 hp (100.7 kW), with a displacement of 5,676.5 cm³. Torque is 597.9 Nm. The unladen weight is 15,755 kg. The wheelbase measures 2,840.7 mm. Ground clearance is 301.8 mm. The tank holds 190 litres. The gearbox has 3 forward gears. There are also 3 reverse gears. The pump delivers 189.3 l/min. The hydraulic tank holds 140.1 litres. The cooling system holds 23.1 litres. The electrical system runs on 24 V. The engine fitted is the TATA 697TC. Tyre size: 14x25,2 PR. Rated output across the Tata Hitachi range ranges from 28.4 to 1,369.2 hp; the TWL3036 sits at the bottom of that range with 126.7 hp. Its immediate neighbours are the VTA90 below it with 103.4 hp and the EX200LC above it with 134.6 hp. 41 Tata Hitachi models across 8 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTATA 697TCcorrect
Power126.7 hp (100.7 kW)correct
Torque597.9correct
Displacement5,676.5 cm³correct
Aspirationturbochargedcorrect
Coolant capacity23.1 lcorrect

Dimensions and weights

Wheelbase2,840.7correct
Ground clearance301.8correct
Unladen weight15,755 kgcorrect

Drivetrain and chassis

Gearbox typeZR Ergo Power Transmission 3WG 130correct
Forward gears3correct
Reverse gears3correct
Tyre size14x25.2 PRcorrect
System voltage24 Vcorrect

Working data

Pump flow189.3 l/mincorrect
Hydraulic oil capacity140.1 lcorrect
Fuel tank capacity190 lcorrect

Other data

Height3,188.2correct

Where this model stands

Power-to-weight ratio: 6.4 kW/t (101 kW / 15.8 t)

Stronger than 51% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Tata Hitachi TWL3036 have?

The Tata Hitachi TWL3036 delivers 127 hp.

How much does the Tata Hitachi TWL3036 weigh?

The unladen weight is 15,755 kg.

What engine does the Tata Hitachi TWL3036 have?

5,676 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
